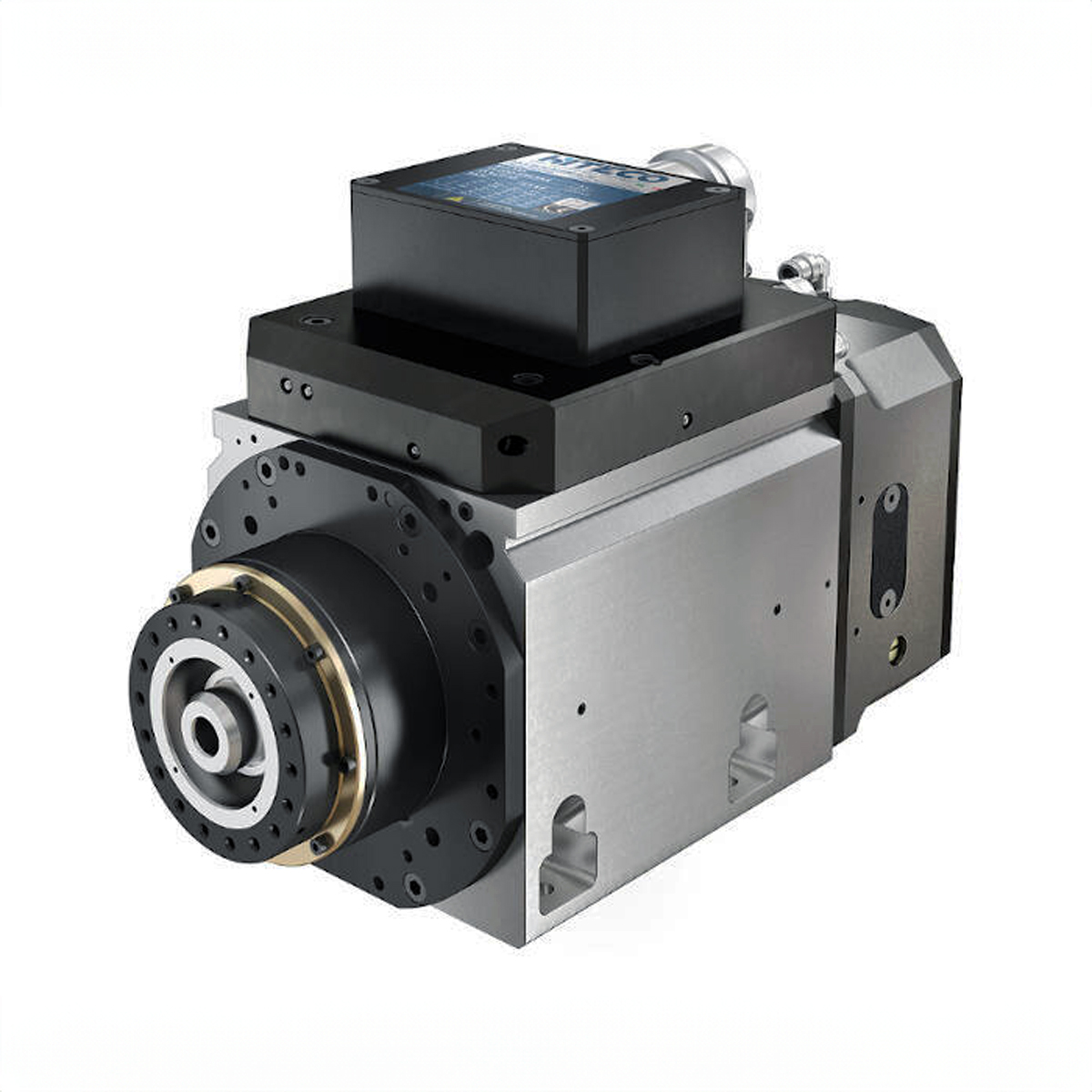

Hiteco HX-2 10/7 24 63F NC 3C Spindle Motor
Hiteco HX-2 10/7 24 63F NC 3C spindle motor.
Description
Hiteco HX-2 10/7 24 63F NC 3C spindle motor.
Technical Specifications
- Model Series: Hiteco HX 3C series
- Model no.: HX-2 10/7 24 63F NC 3C
- Tool Change: Automatic Tool Change (ATC)
- Tool Interface: HSK 63F
- Spindle Nose: Short nose
- Cooling: Liquid-cooled
- Speed:
- Nominal: 7,000 RPM
- Maximum: 24,000 RPM
- Output Frequency:
- Rated: 233 Hz
- Maximum:Â 800 Hz
- Pole Count: 4-pole
- Power:
- S1: 10 kW (13.5 hp)
- S6: 12 kW (16.1 hp)
- Voltage: 380 V
- Torque:
- S1: 13.6 Nm
- S6: 16.4 Nm
- Current:
- S1: 21 A
- S6: 25 A
Additional information
| Manufacturer | Hiteco |
|---|---|
| Part Number (MPN) | HX-2 10/7 24 63F NC3C |
| Model Series | |
| Rated Speed (RPM) | 7,000 |
| Condition | New |
| Spindle Nose | Short Nose |
| Maximum Speed (RPM) | 24,000 |
| Country/Region of Manufacture | Italy |
Hiteco Spindle Motors for CNC Routers and Robots
Hiteco spindle motors are commonly used on industrial 3-axis and 5-axis CNC routers in wood, plastic, advanced materials, glass, stone and metal industries. CNC machinery utilizing these motors include SCM, CMS, DMS, Laguna Tools, New CNC, Morbidelli, Routech, Casadei-Busellato, Legacy and Camaster. Contact our sales team for more information about Hiteco Powertech, Robotech and Multitech series spindles.
