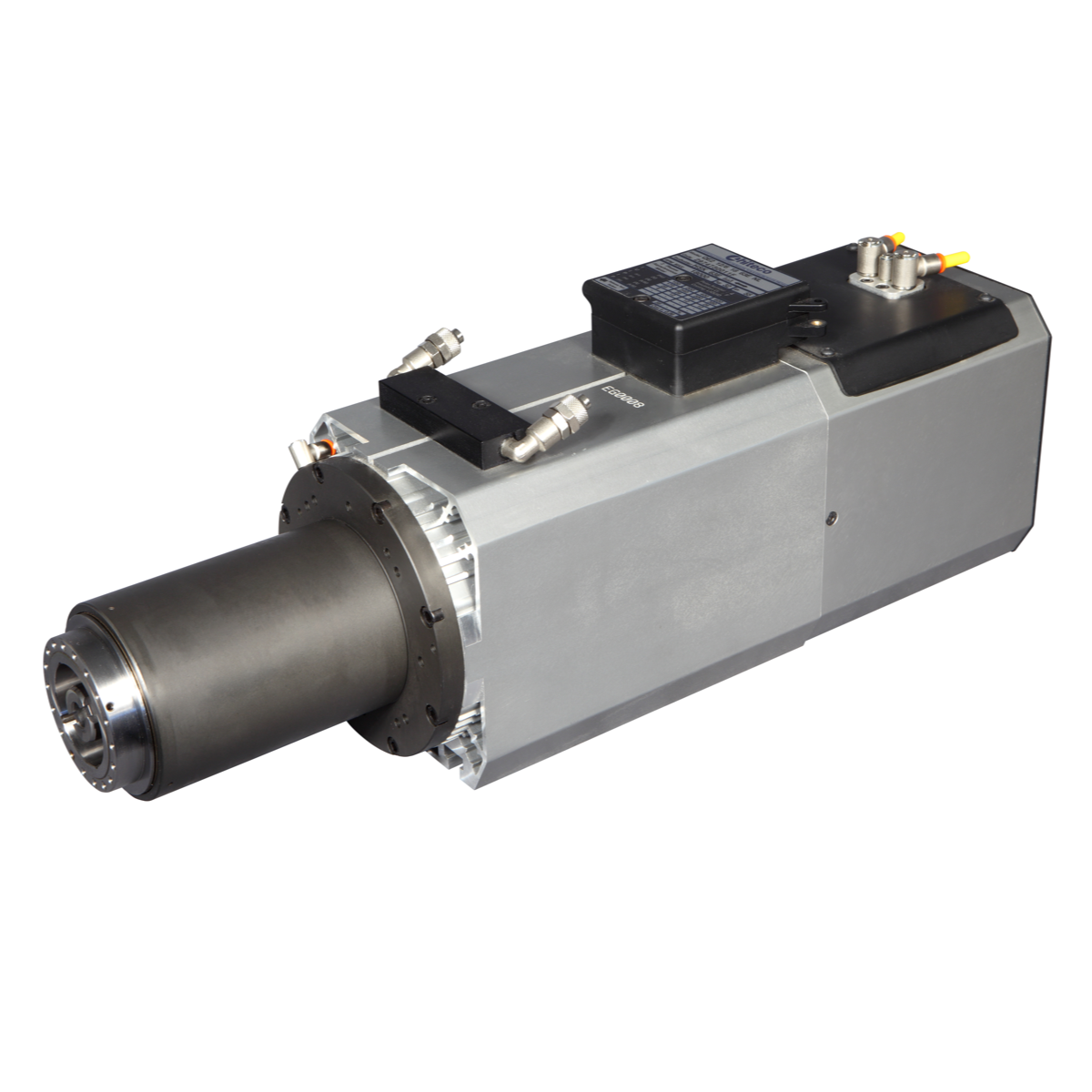

QF-1F 11/12 20 63F NL PP Hiteco Spindle Motor
QF-1F 11/12 20 63F NL PP Hiteco Powertech 500 series ATC spindle motor, 14.8 hp / 11 kw, 12-20,000 RPM, HSK 63F, long nose, 380 V.
Description
QF-1F 11/12 20 63F NL PP Hiteco Powertech 500 series automatic tool change (ATC) electric spindle motor with quick release push button for manual tool change. 14.8 hp / 11 kW (S1), 18 hp / 13.5 kW (S6), 12,000 RPM rated speed, 20,000 RPM max speed, HSK 63F tool taper, long nose, 380 V.
Additional information
| Condition | New |
|---|---|
| Model | Powertech 500 |
| Voltage | 380 V |
| Cooling Method | Electric Fan |
| Maximum Output Frequency (Hz) | 400, 800 |
| Poles | 4 |
| Tool Holder | HSK 63F |
| Current (Amps) | 28 |
| Tool Change | Automatic Tool Change |
| Manufacturer | Hiteco |
| Country/Region of Manufacture | Italy |
| Manufacturer Part Number | QF.500.A01.00PP, QF-1F 13.3/7.5 15 63F NL PP, QF-1F 11/12 20 63F |
| Spindle Nose | Long Nose |
