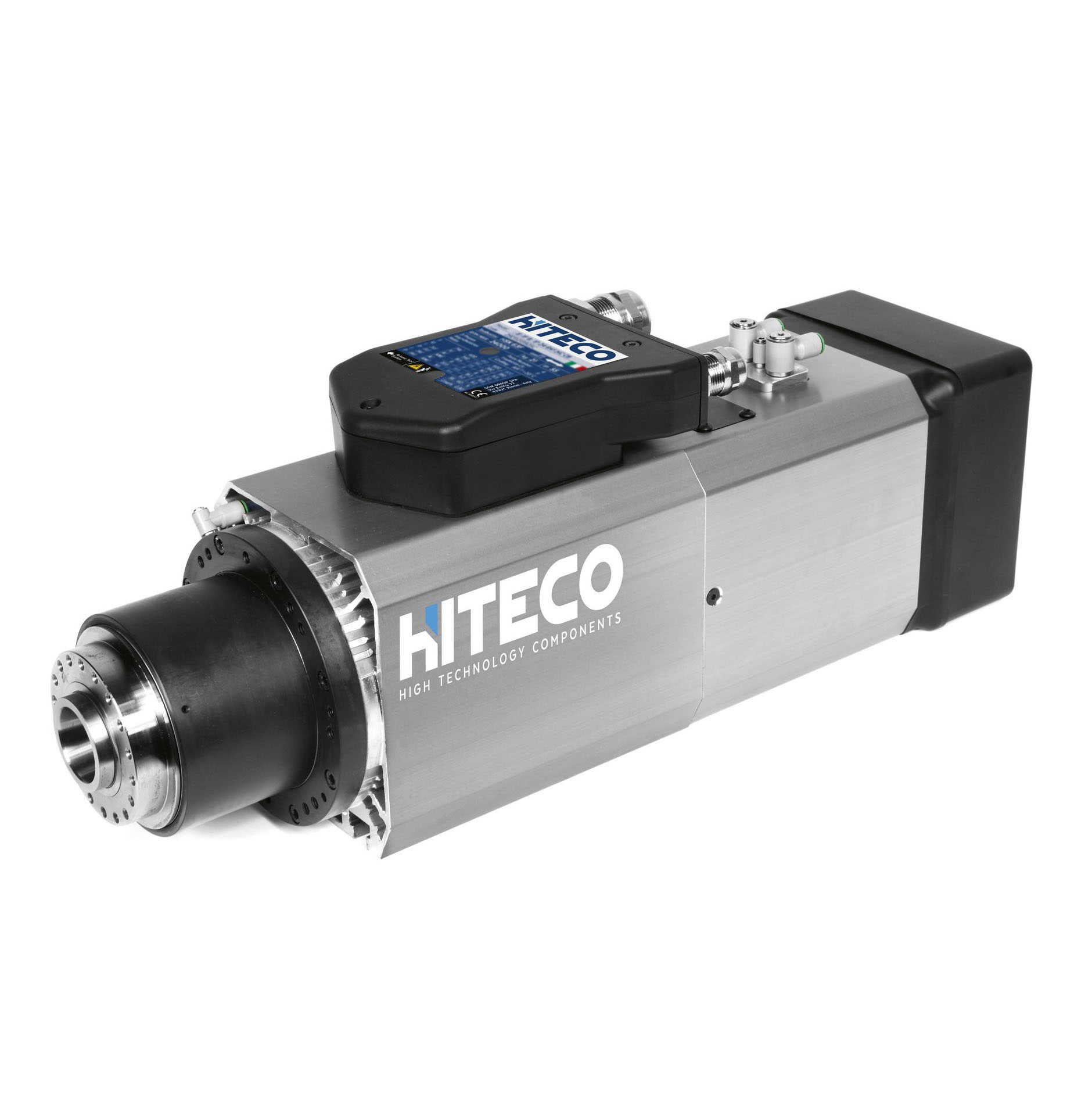

Hiteco QE-1F 8/12 24 I30 NC CB BT Spindle Motor
Hiteco QE-1F 8/12 24 I30 NC CB BT Powertech 300 spindle motor, ATC, ISO 30, short nose, fan-cooled, 24,000 RPM, 800 Hz, 4-pole, 11 hp (8.2 kW), 220/380 V.
Description
Hiteco QE-1F 8/12 24 I30 NC CB BT spindle motor.
Technical Specifications
- Model Series: Hiteco Powertech 300 Series
- Model no.:Â QE-1F 8/12 24 I30 NC CB BT
- Tool Change:Â Automatic Tool Change (ATC) with quick release push button for manual tool change
- Tool Interface: ISO 30 tool taper
- Spindle Nose:Â Short nose
- Bearings: Ceramic ball bearings
- Cooling:Â Electric fan (24V DC)
- Speed:
- Rated:Â 12,000 RPM
- Maximum:Â 24,000 RPM
- Output Frequency:
- Rated:Â 400 Hz
- Maximum:Â 800 Hz
- Pole Count:Â 4-pole
- Power:Â 11 hp / 8.2 kW (S1)
- Voltage:Â 220 V / 380 V (Dual Voltage)
Additional information
| Condition | New |
|---|---|
| Model Series | |
| Rated Speed (RPM) | 12,000 |
| Rated Frequency (Hz) | 400 |
| Current (Amps) | |
| Maximum Speed (RPM) | 24,000 |
| Maximum Frequency (Hz) | 800 |
| Tool Change | |
| Manufacturer | Hiteco |
| Country/Region of Manufacture | Italy |
| Part Number (MPN) | QE.300.A05.01, QE-1F 8/12 24 63F NC CB BT, QE-1F 8/12 24 63F |
| Spindle Nose | Short Nose |
You may also like…
Hiteco Spindle Motors for CNC Routers and Robots
Hiteco spindle motors are commonly used on industrial 3-axis and 5-axis CNC routers in wood, plastic, advanced materials, glass, stone and metal industries. CNC machinery utilizing these motors include SCM, CMS, DMS, Laguna Tools, New CNC, Morbidelli, Routech, Casadei-Busellato, Legacy and Camaster. Contact our sales team for more information about Hiteco Powertech, Robotech and Multitech series spindles.
