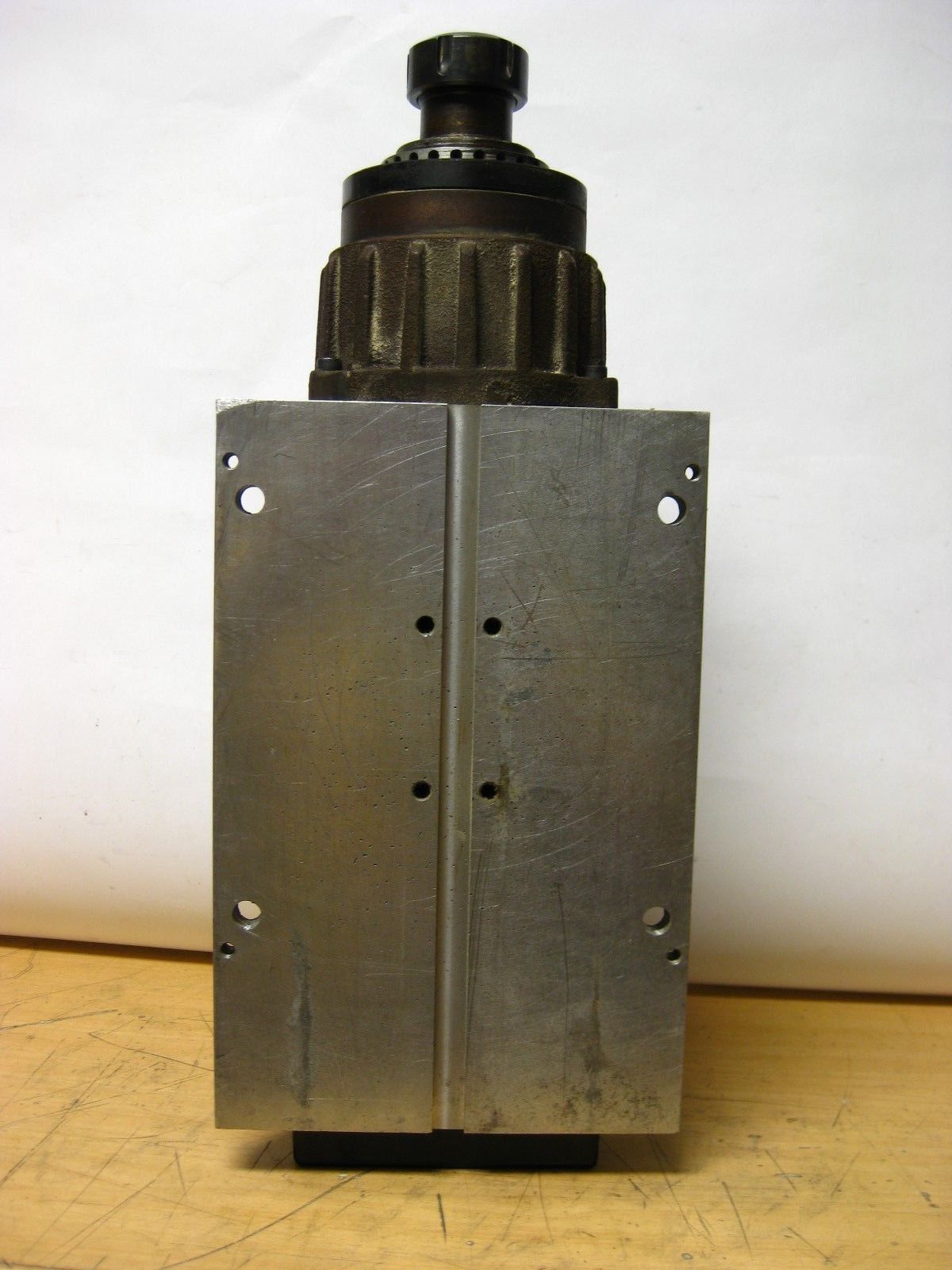

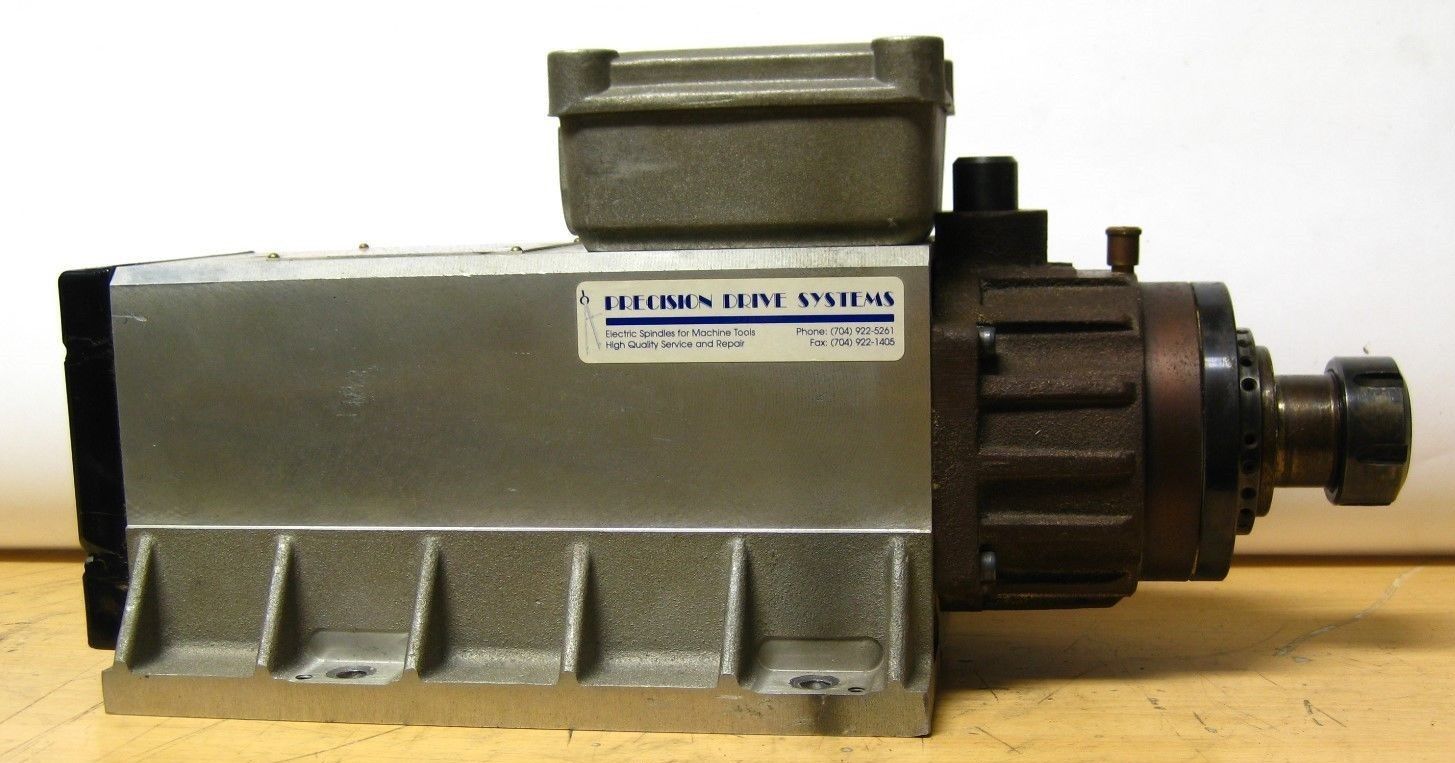

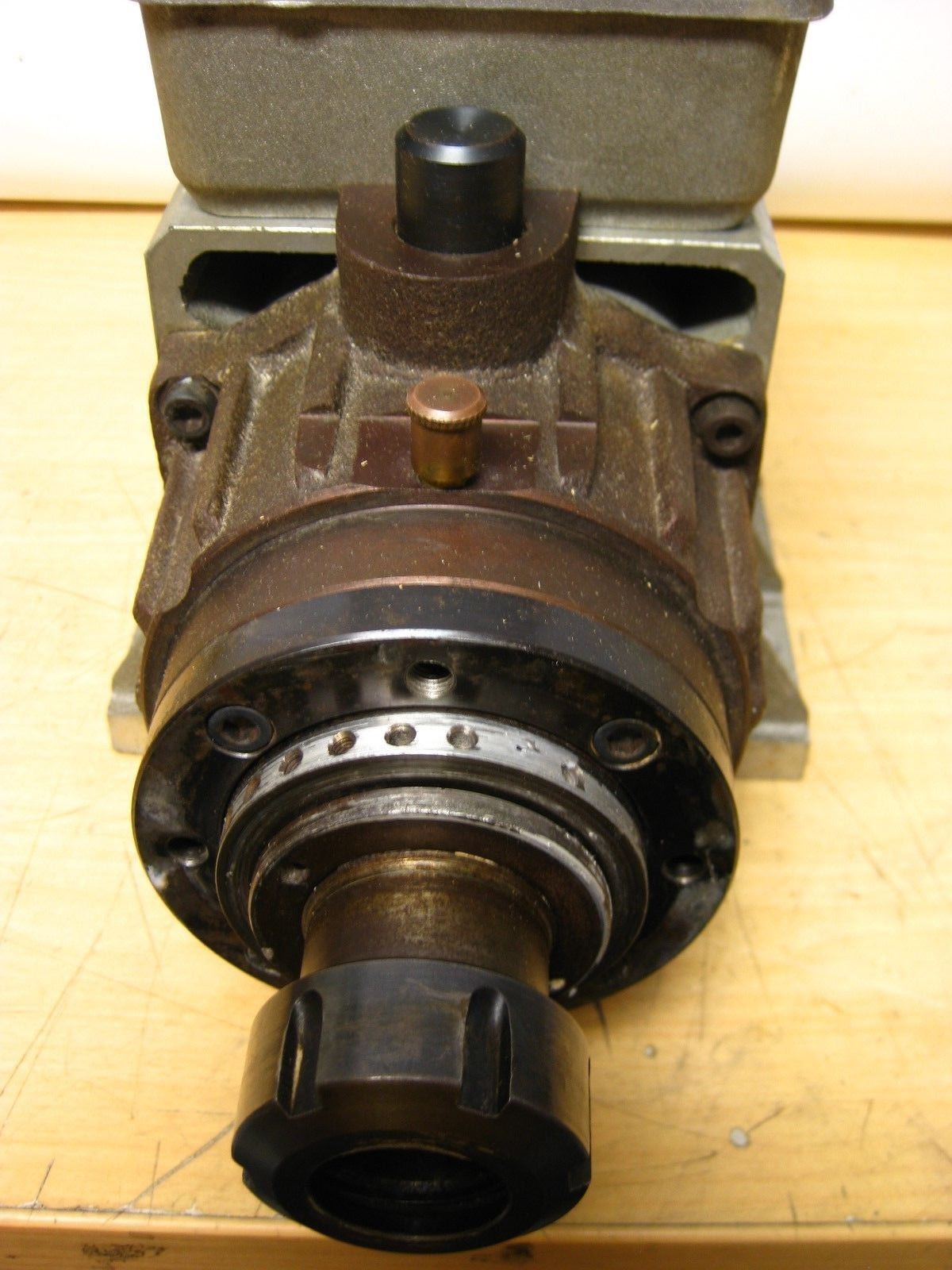

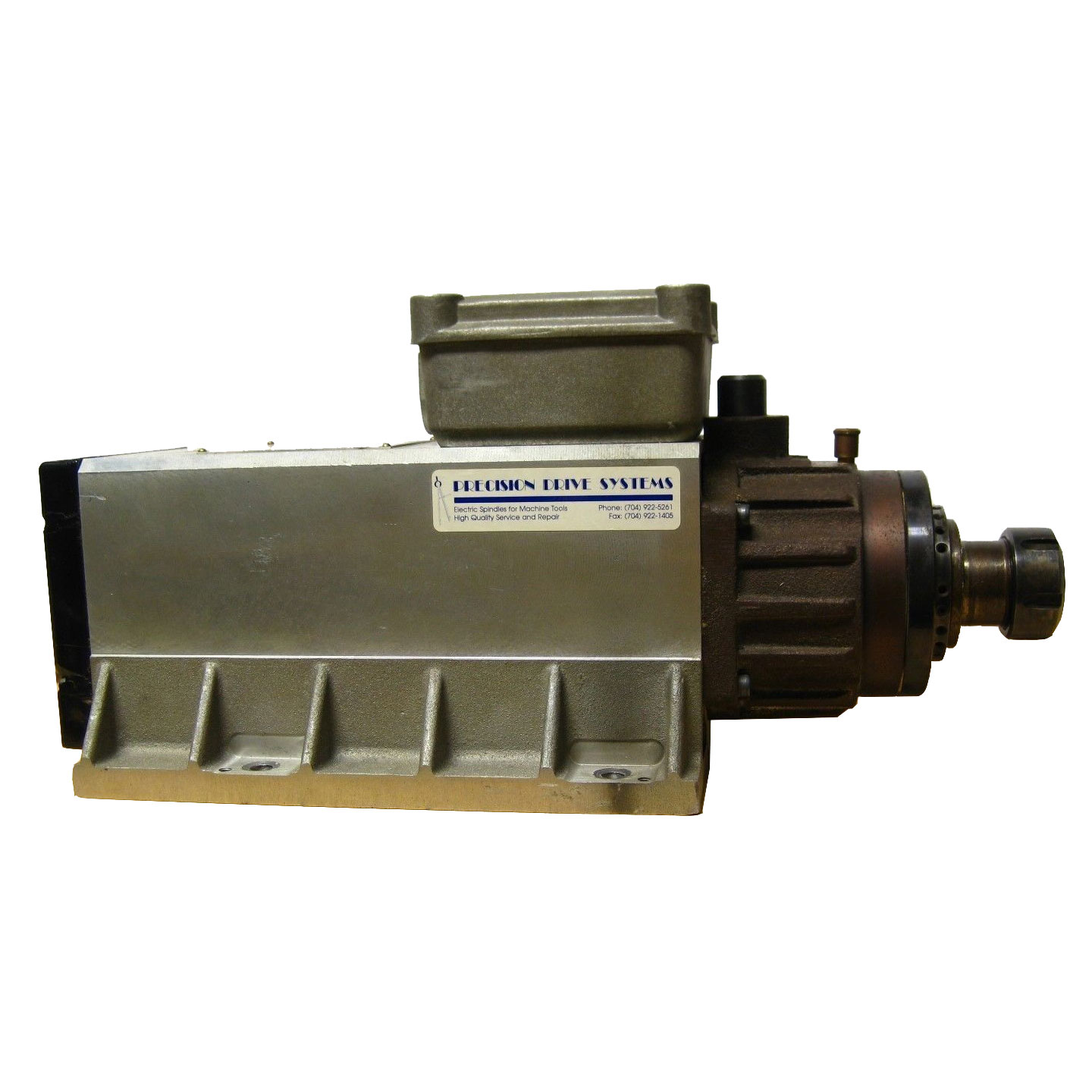

S116163-7.5D RV 116/22 Colombo Spindle Motor – Used

Giordano Colombo

$2,000.00

S116163-7.5,D Giordano Colombo spindle motor, Colombo RV116/22 FB3 CPE, MTC, 7.5 hp / 5.5 kW, 230 V / 460 V. Used.

In stock

04616 Techniks ER 32 Slotted Nut Wrench

Techniks 04616 ER 32 slotted nut wrench, UM or RU nut type, 253mm x 75mm.

Product Description

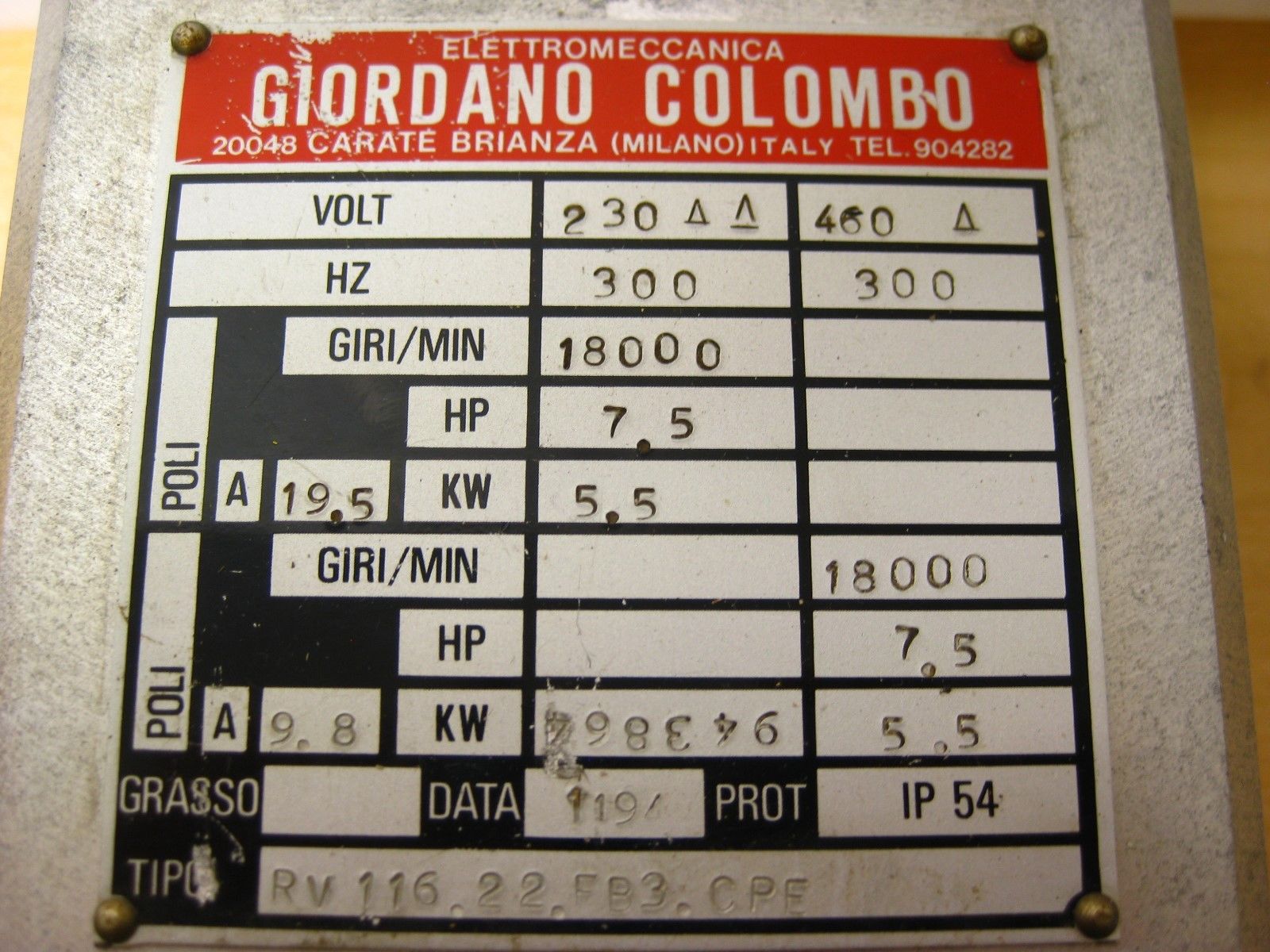

Giordano Colombo RV series electric spindle motor, Colombo RV 116/22 FB3 CPE, MTC (manual tool change), 7.5 hp / 5.5 kW, 230 V / 460 V. Used.

Additional Information

Weight 57 lbs
Dimensions 20 × 10 × 10 in
Model

RV 116/22

Country/Region of Manufacture

Italy

IP Rating

54

Condition

Used

Voltage

230 V, 460 V

Power

5.5 kW, 7.5 hp

Amps

9.8 Amps, 19.5 Amps

Maximum Output Frequency

300 Hz

Speed

18,000 RPM

Max Tool Diameter

3/4"

Manufacturer Part Number

RV116.22.FB3.CPE, S116163-7.5,D

Brand

Giordano Colombo

Manufacturer

Giordano Colombo

Poles

2

Tool Change

Manual Tool Change

Collet size

ER 32

ER 32 Collets and Collet Nuts

Spindle Motor Lead Time & Availability

Spindle motor lead time and availability varies up to a year. In stock motors can ship within a day or two. Out of stock motor lead times can vary from 4-6 weeks to 6-9 months or longer. We recommend keeping a spare CNC spindle motor on the shelf to avoid costly downtime.

Colombo RV Spindle Motors – Fan Cooled

Giordano Colombo automatic tool change spindles are designed for applications on machines working wood, plastic, aluminum, light alloy, steel, glass and also marble. The frame is obtained from extruded aluminum bar or from heat treated special alloy aluminum ingot. The bearings are precision angular contact type, with steel or ceramic balls and life lubrication with special grease for high speeds.
