Product Description
Giordano Colombo RV series electric spindle motor, Colombo RV 154/22 50 FB3 CPE 40, MTC (manual tool change), air-cooled, 12.5 hp, 230 V / 460 V. Used. ER 40 E-Wrench sold separately.
12.5 hp, 230 V / 460 V, ER 40

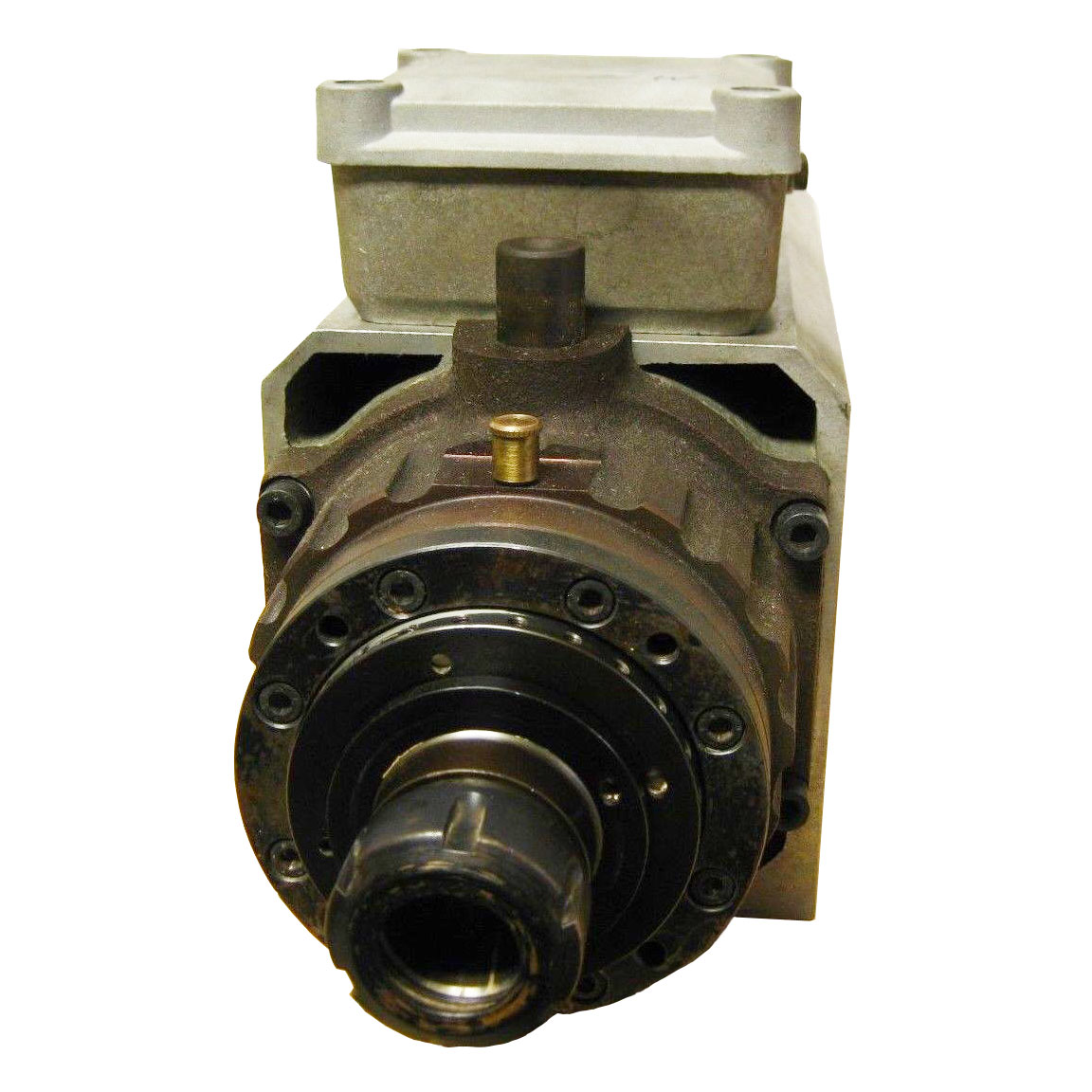

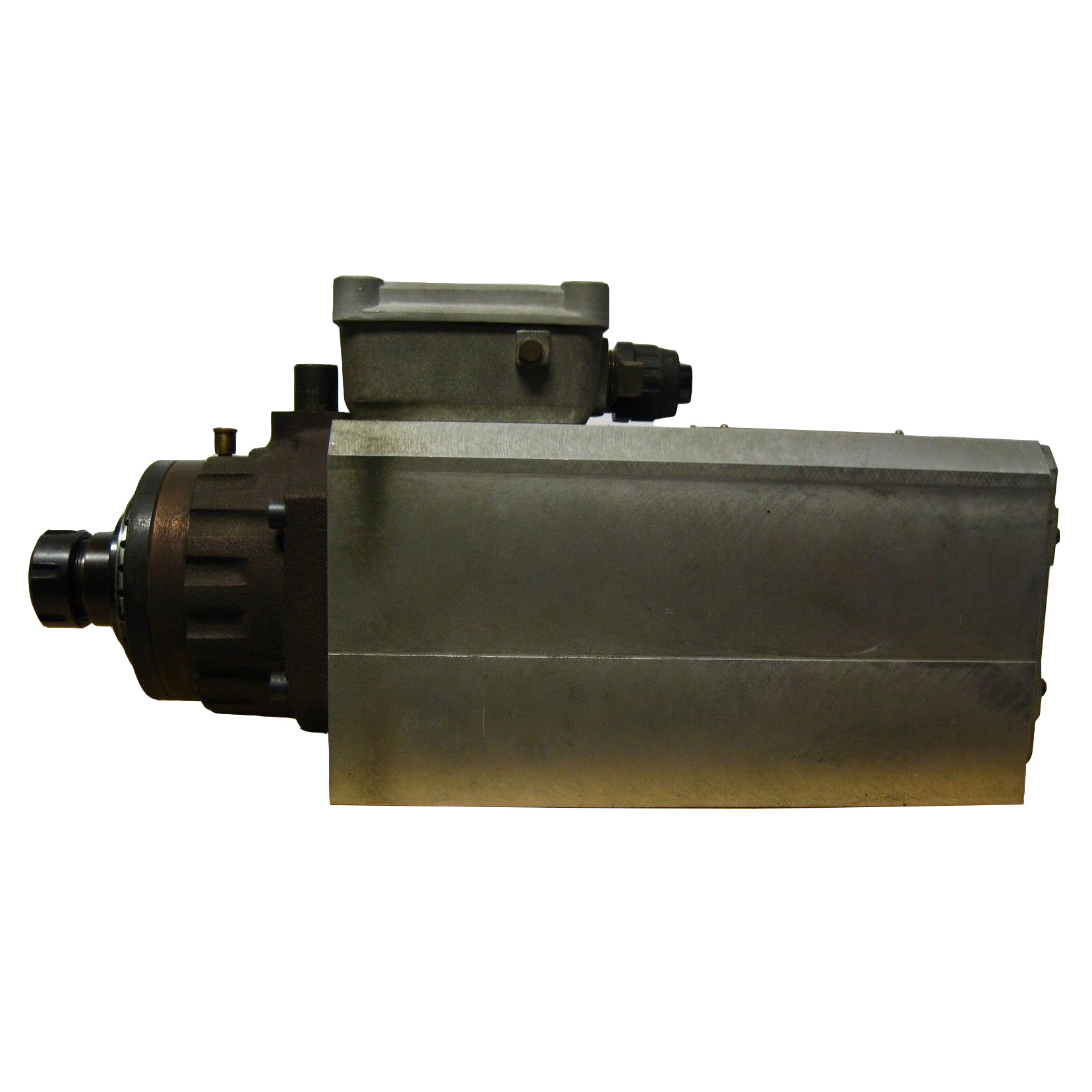

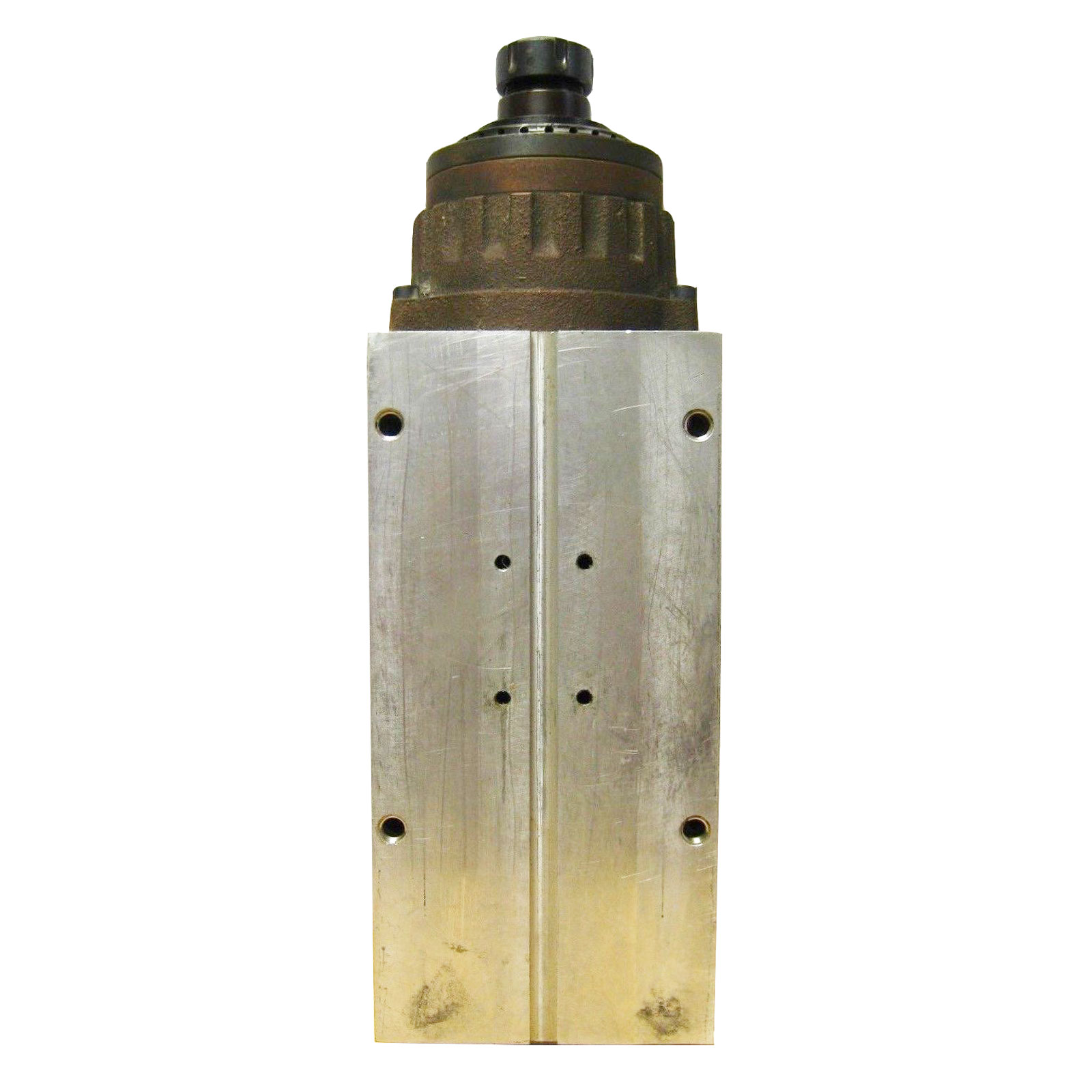

S154376-12.5D RV 154/22 Colombo Spindle Motor – Used
Call For Price
S154376-12.5D Giordano Colombo spindle motor, RV 154/22 50 FB3 CPE 40, MTC, fan-cooled, 12.5 hp, 230 V / 460 V. Used.
Out of stock

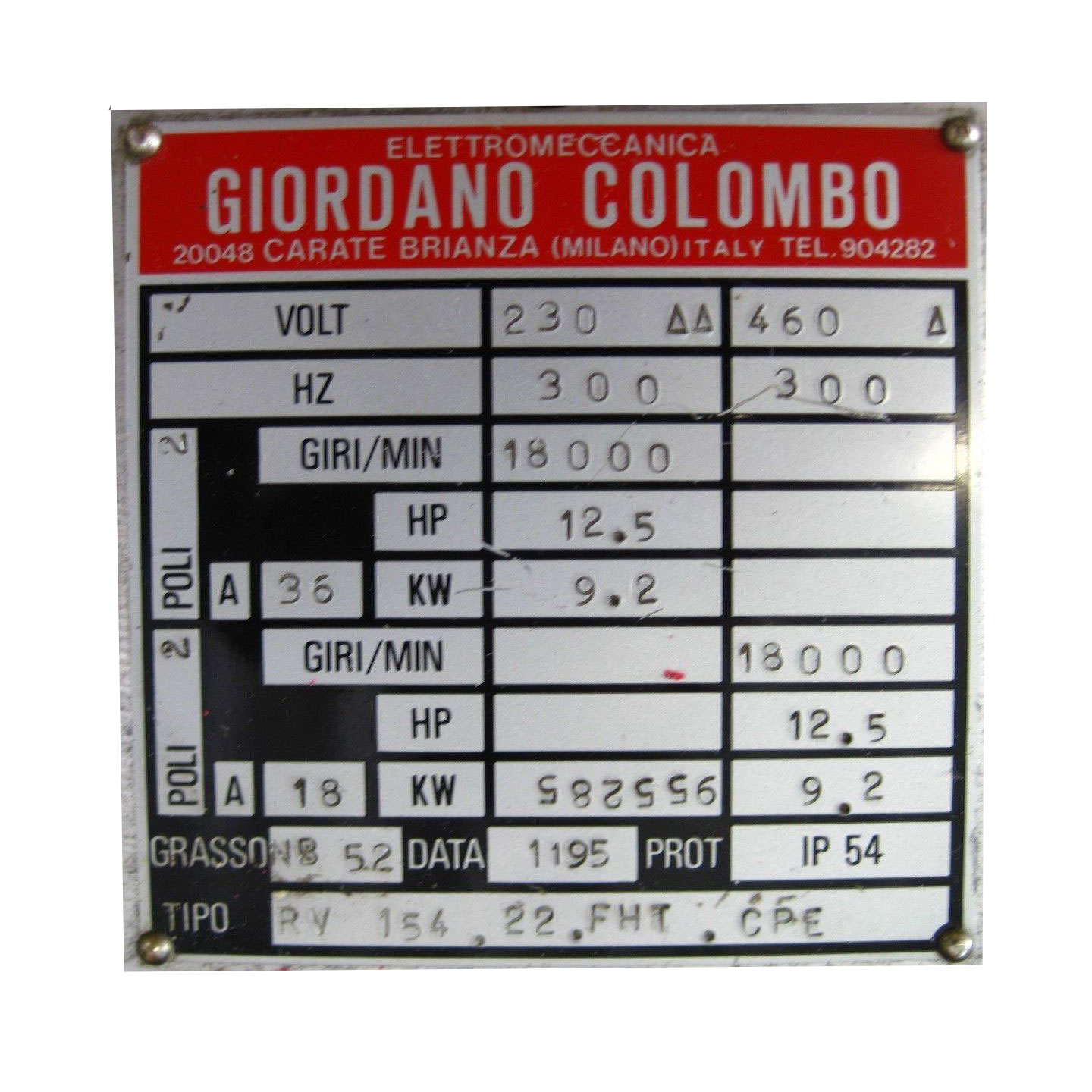

Additional Information
| Weight | 75.00 lbs |
|---|---|
| Dimensions | 24 × 12 × 12 in |
| Brand | Giordano Colombo |
| Model | RV 154.22.FHT.CPE |
| Manufacturer Part Number | S154376-12.5D |
| IP Rating | 54 |
| Country/Region of Manufacture | Italy |
| Condition | Used |
| Voltage | 230 V, 460 V |
| Power | 12.5 hp |
| Speed | 18,000 RPM |
| Cooling Method | Fan Cooled |
| Maximum Output Frequency | 300 Hz |
| Manufacturer | Giordano Colombo |
| Poles | 2 |
| Tool Change | Manual Tool Change |
| Collet size | ER 40 |
ER 40 Collets and Collet Nuts
Spindle Motor Lead Time & Availability
Spindle motor lead time and availability varies up to a year. In stock motors can ship within a day or two. Out of stock motor lead times can vary from 4-6 weeks to 6-9 months or longer. We recommend keeping a spare CNC spindle motor on the shelf to avoid costly downtime.
Colombo RV Spindle Motors – Fan Cooled
Giordano Colombo automatic tool change spindles are designed for applications on machines working wood, plastic, aluminum, light alloy, steel, glass and also marble. The frame is obtained from extruded aluminum bar or from heat treated special alloy aluminum ingot. The bearings are precision angular contact type, with steel or ceramic balls and life lubrication with special grease for high speeds.
