Perske VS50-09-23hp Spindle Motor

Call for price

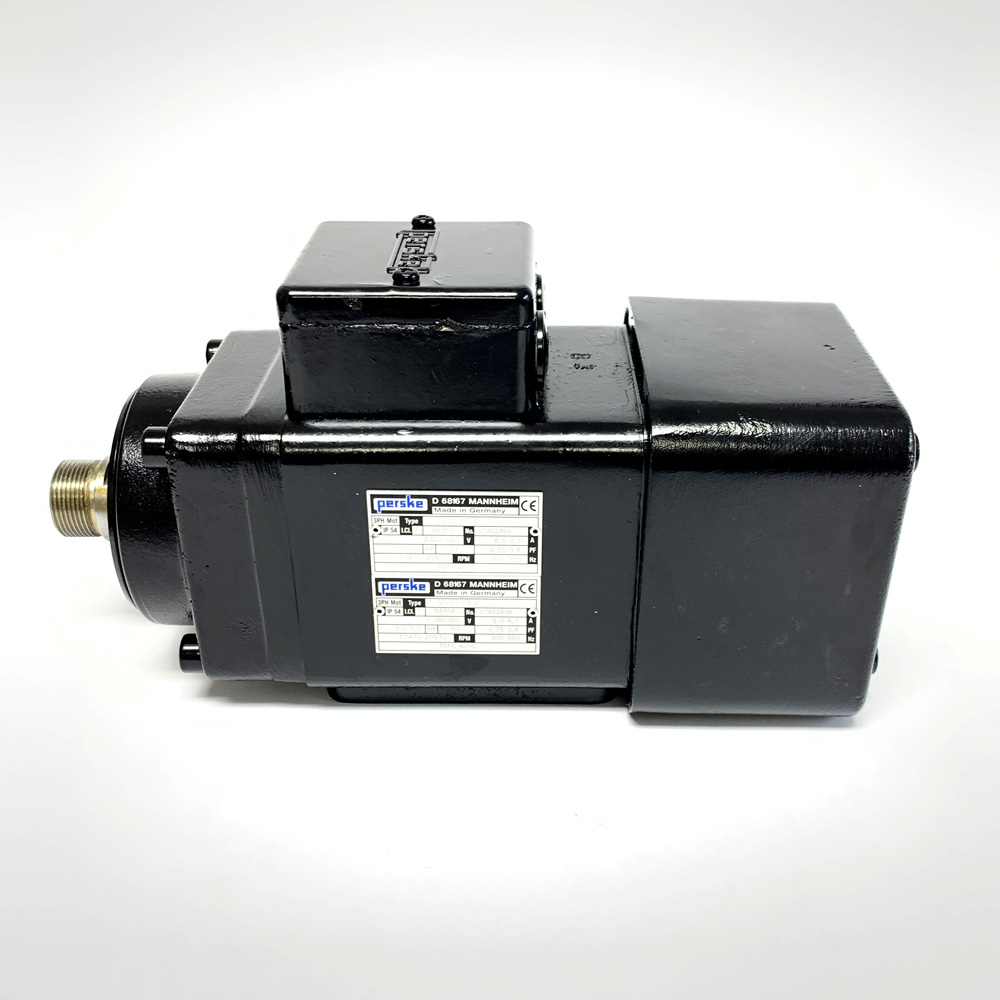

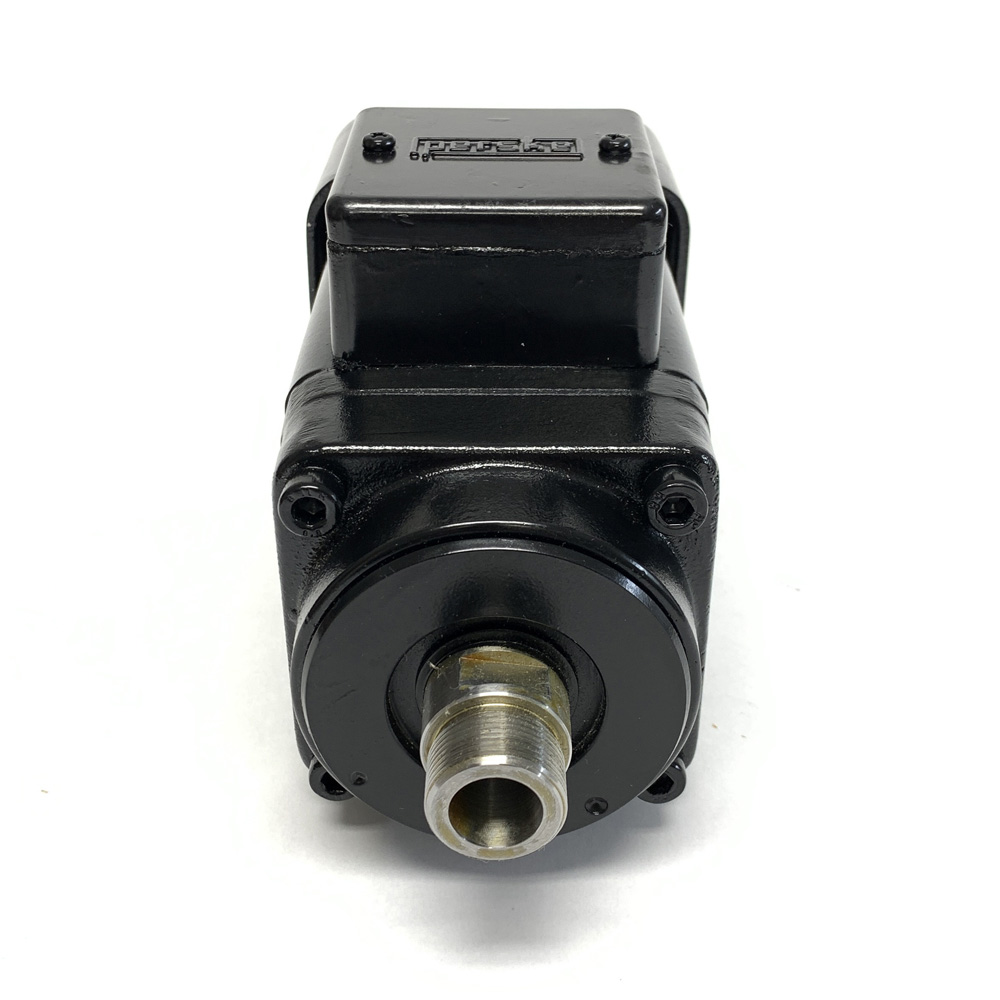

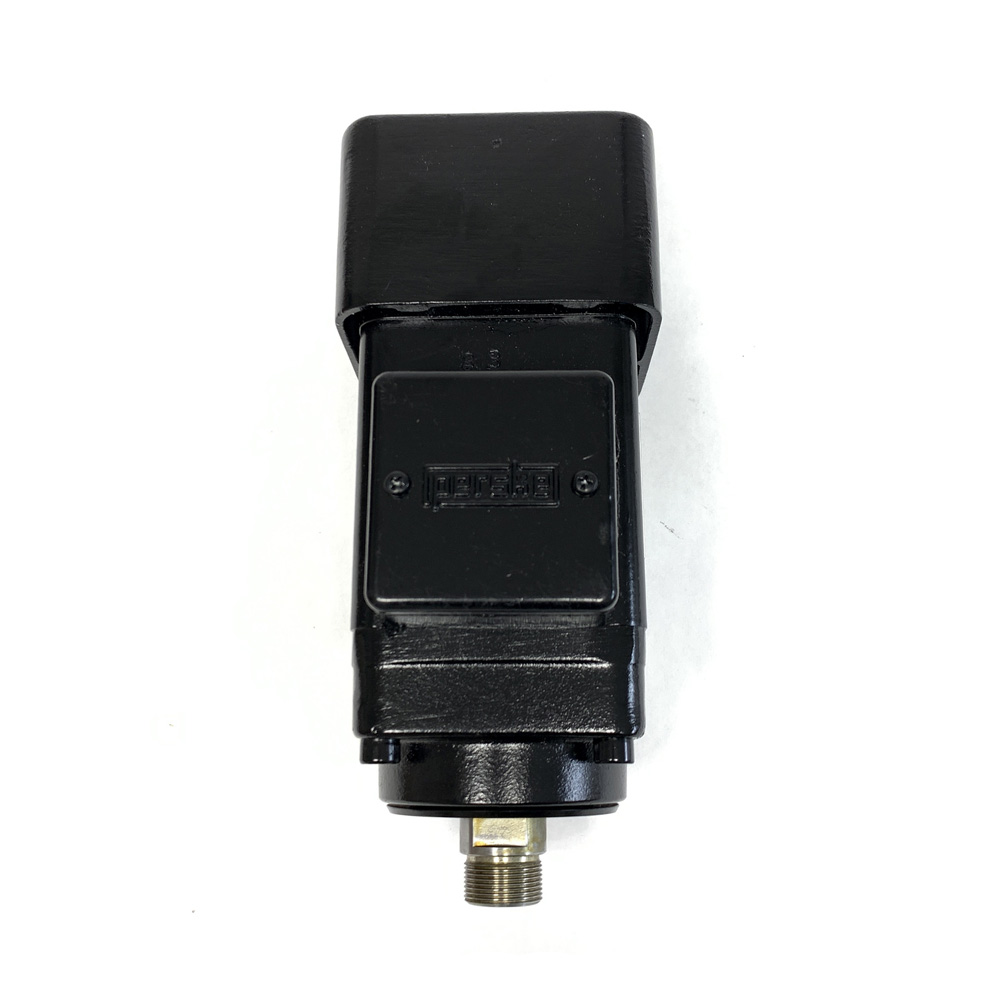

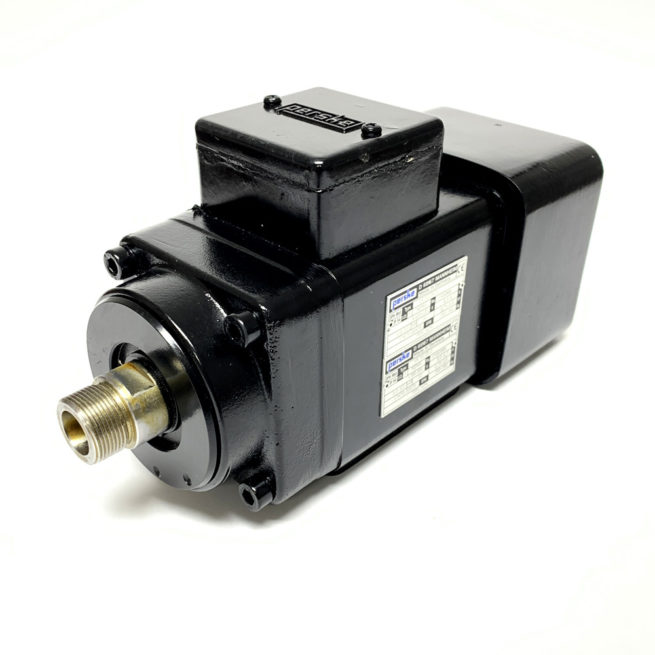

Perske VS50-09-23HP spindle motor, model V 50, type VS50, rectangular motor, MTC, 21,600 RPM, 360 Hz, 2-pole, 3.3 hp (2.5 kW), 220/380 V.

Description

Perske VS 50-09-23HP spindle motor is a rectangular motor / milling motor / high-speed machining motor – single bearing, designed for cylindrical shaft tools and small axle center distances.

Technical Specifications

Model Series: Perske VS50
Tool Change: Manual Tool Change (MTC)
Tool Interface: SYOZ 20 / EOC 12 / OZ 1833 collet
- 1/2 inch max tool capacity
- OZ 1822 cover nut 83634
Bearing: Single bearing
Thread: Standard RH (right-hand)
Protection Class: IP54
Cooling: Self-cooled by integrated fan
Speed:
- Rated: 18,000 RPM
- Maximum: 21,600 RPM
Frequency:
- Rated: 300 Hz
- Maximum: 360 Hz
Pole Count: 2-pole
Power: 3.3 hp (2.5 kW)
Voltage: 220 V / 380 V (Dual Voltage), 3 phase

Additional information

Manufacturer	Perske
Country/Region of Manufacture	Germany
Model Series	Perske VS 50
Part Number (MPN)	VS50-09-23HP
Tool Change	Manual Tool Change
Collet size	SYOZ 20, OZ 1833, EOC 12
Cooling Method	Fan Cooled
Speed (RPM)	21,600
Output Frequency (Hz)	360
Poles	2
Kilowatt (kW)	2.2
Horsepower (hp)	3
Voltage (V)	220, 380
Condition	New
