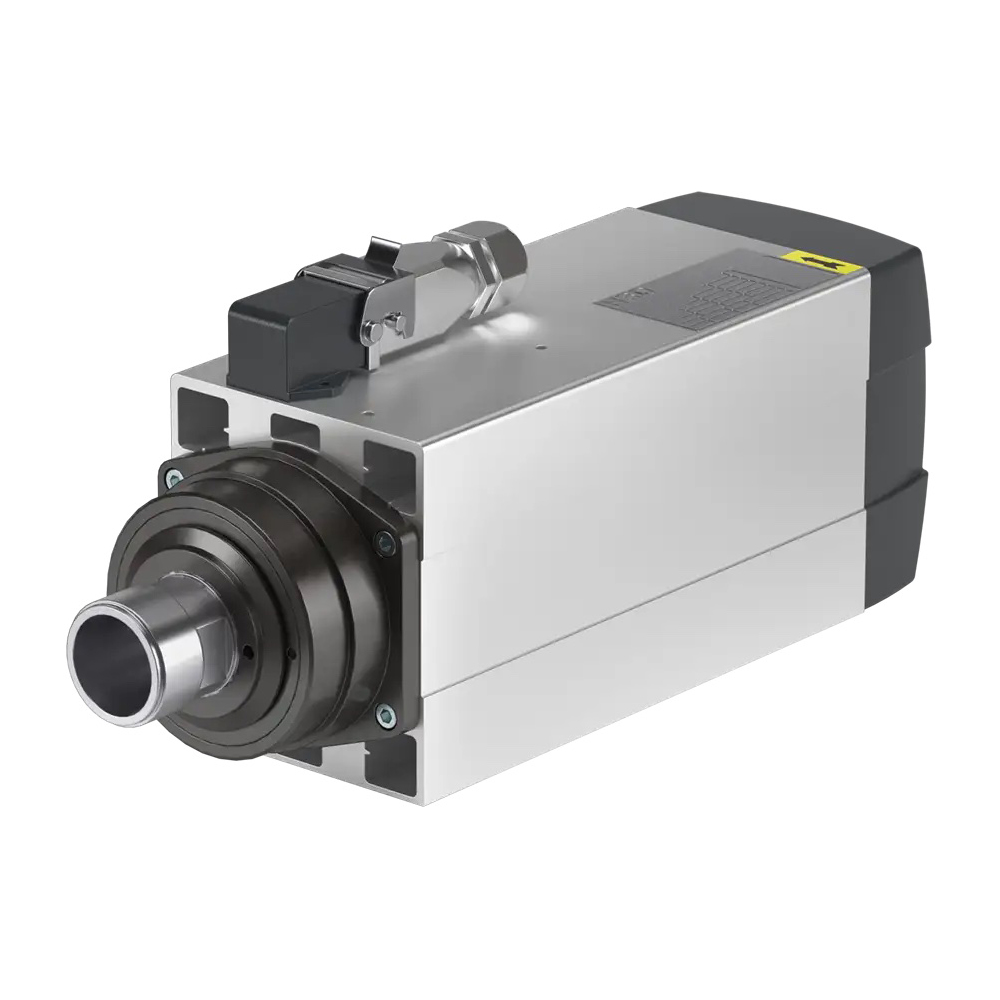

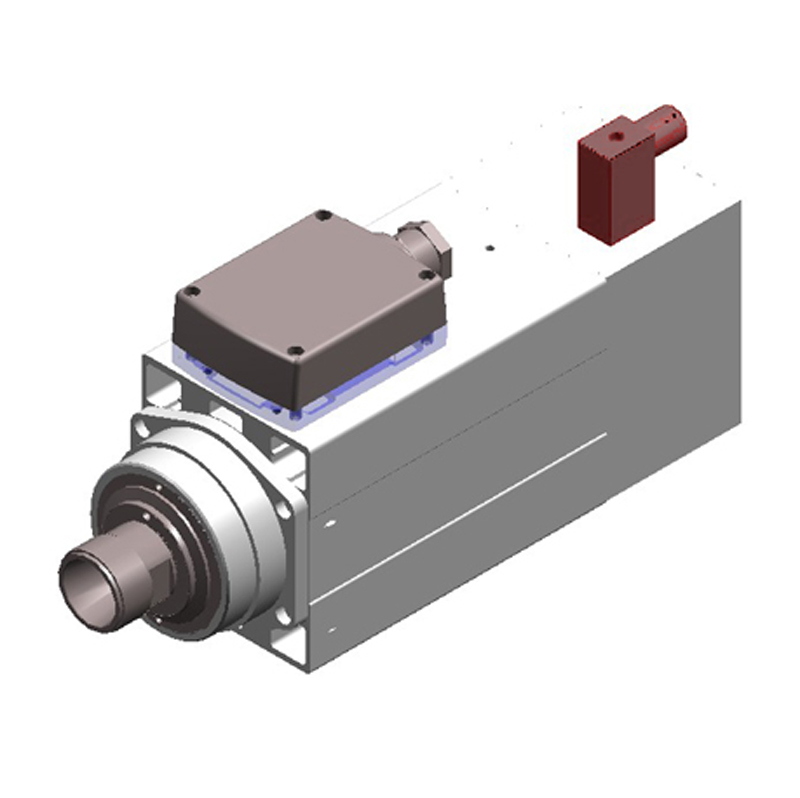

HSD Y616109094 MT1090-140 Spindle Motor

Call for price

HSD Y616109094 MT1090-140 high-performance, manual tool change (MTC) electric fan-cooled spindle motor delivers 7kW of power up to 24,000 RPM. It is designed for ultra-precise CNC routing of wood, plastics, and aluminum using an ER32 collet interface.

SKU: Y616109094 Categories: Spindle Motors, HSD Spindle Motors & Parts, HSD MTC Spindle Motors Tag: ER 32 Spindle Motor Brand: HSD Mechatronics

Description

HSD Y616109094 MT1090-140 MTC spindle motor.

Technical Specifications

Model Series: HSD MT 1090-140
Model No.: Y616109094
Tool Change: Manual Tool Change (MTC)
Tooling Interface: ER 32 collet
Cooling: Electric fan
Pole Count: 4-pole
Speed:
- Rated: 18,000 RPM @ 600 Hz
- Maximum: 24,000 RPM @ 800 Hz
Power: 9.4 hp (7 kW)
Voltage: 220 V / 380 V (Dual Voltage)

Additional information

Manufacturer	HSD
Country/Region of Manufacture	Italy
Model Series	HSD MT1090
Part Number (MPN)	Y616109094, MT1090-140-EL-ER32-220/380V-DX-14/24000-7KW
Tool Change	Manual Tool Change
Collet size	ER 32
Cooling Method	Electric Fan-Cooled
Rated Speed (RPM)	18,000
Maximum Speed (RPM)	24,000
Rated Frequency (Hz)	600
Maximum Frequency (Hz)	800
Poles	4
Kilowatt (kW)	7
Horsepower (hp)	9
Voltage (V)	220, 380
Condition	New
