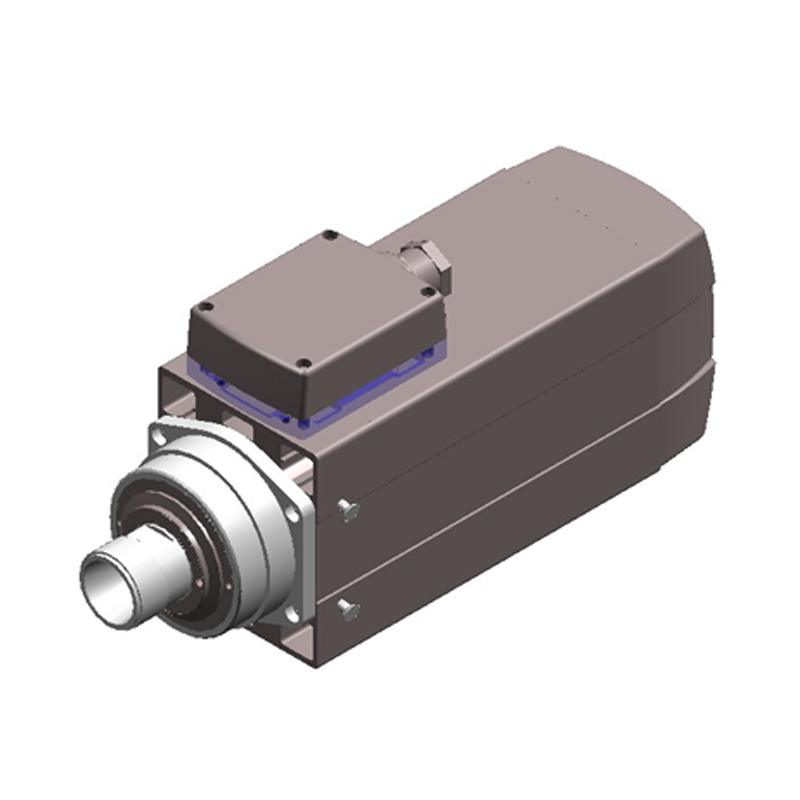

HSD Y6162Y0023 MT1090-100 Spindle Motor
HSD Y6162Y0023 MT1090-100 spindle motor, MTC, ER 32, shaft fan cooled, 18-24,000 RPM, 400 Hz, 2-pole, 6 hp (4.5 kW), 220/380 V.
Description
HSD Y6162Y0023 MTC spindle motor.
Technical Specifications
- Motor Series: HSD MT 1090-100
- Model no.: Y6162Y0023
- Tool Change: Manual Tool Change (MTC)
- Tool Interface: ER 32 collet
- Cooling: Shaft-driven fan
- Pole Count: 2-pole
- Speed @ Frequency:
- Rated: 18,000 RPM @ 300 Hz
- Maximum: 24,000 RPM @ 400 Hz
- Power (@ Rated Speed):
- S1: 6 hp (4.5 kW)
- S6: 7.2 hp (5.4 kW)
- Voltage: 220 V or 380 V (Dual Voltage)
Additional information
| Manufacturer | HSD |
|---|---|
| Country/Region of Manufacture | Italy |
| Model Series | |
| Part Number (MPN) | Y6162Y0023, MT1090-100-ER32-220V-DX-18/24000-4,5KW S1 |
| Cooling Method | Shaft Fan-Cooled |
| Rotation Direction | Right-Hand / Clockwise |
| Tool Change | |
| Collet size | ER 32 |
| Rated Speed (RPM) | 18,000 |
| Maximum Speed (RPM) | 24,000 |
| Rated Frequency (Hz) | 300 |
| Maximum Frequency (Hz) | 400 |
| Poles | 2 |
| Horsepower (hp) | 6 |
| Kilowatt (kW) | 4.5 |
| Voltage (V) | 220, 380 |
| Condition | New |
