Used Motionmaster 5 Axis CNC Router E776 [SOLD]
SOLD: Used 5 axis CNC router, Motionmaster, 5×5 moving table, 36 in. stroke, 7.5 hp Perske spindle, Fagor 8055-B CNC system, teach pendant.

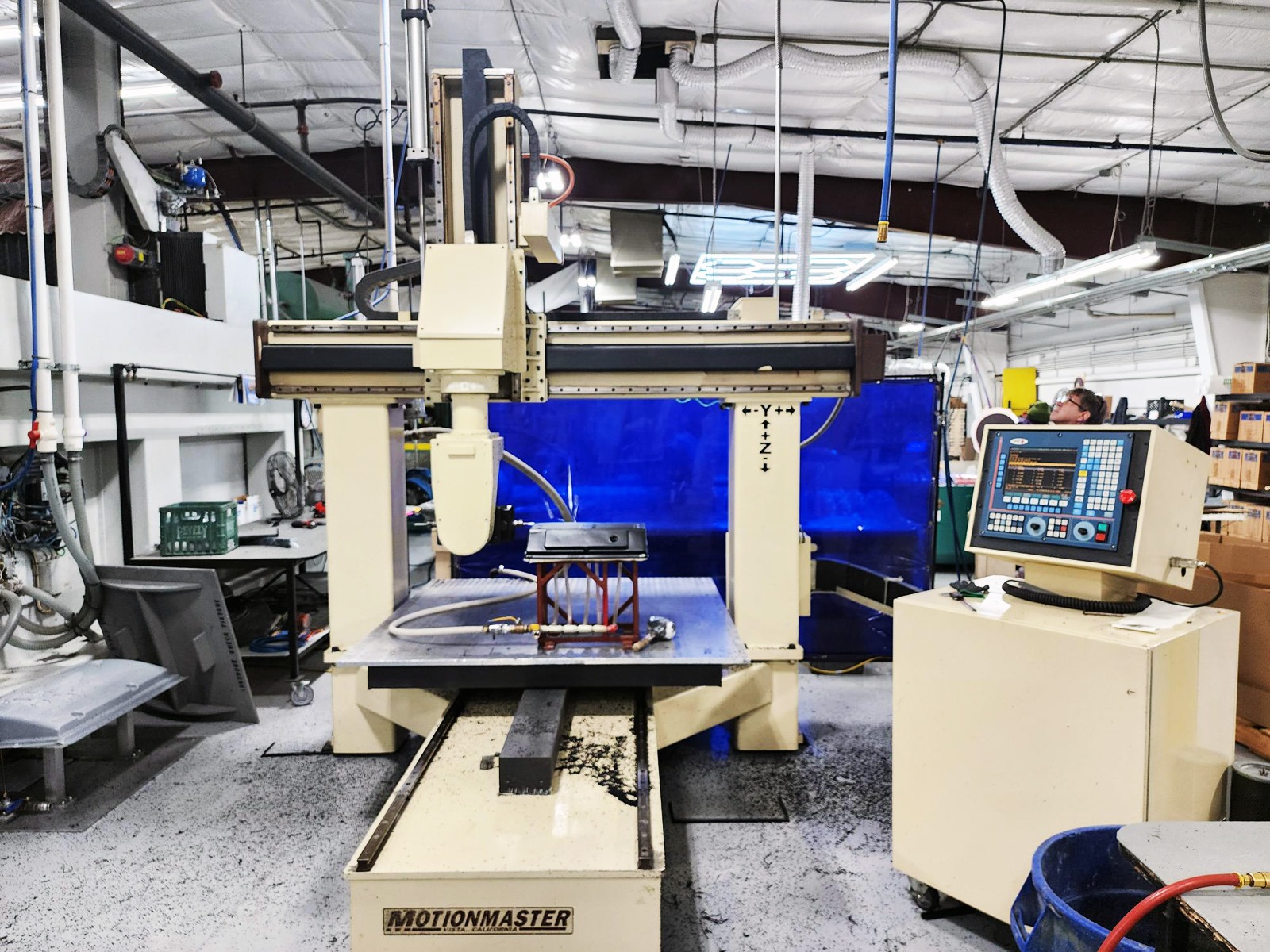

SOLD: Used Motionmaster 5 axis CNC router, 5 ft. x 5 ft. moving router table, 36 inches of Z-axis stroke, and a 7.5 hp Perske dual-ended spindle motor. CNC machinery is controlled by a Fagor 8055-B CNC system w/ teach pendant.
Used CNC Router Machine Features
- Motionmaster CNC router
- 5 axis CNC machinery
- Moving 5 ft. x 5 ft. router table
- 36 inches of Z-axis stroke

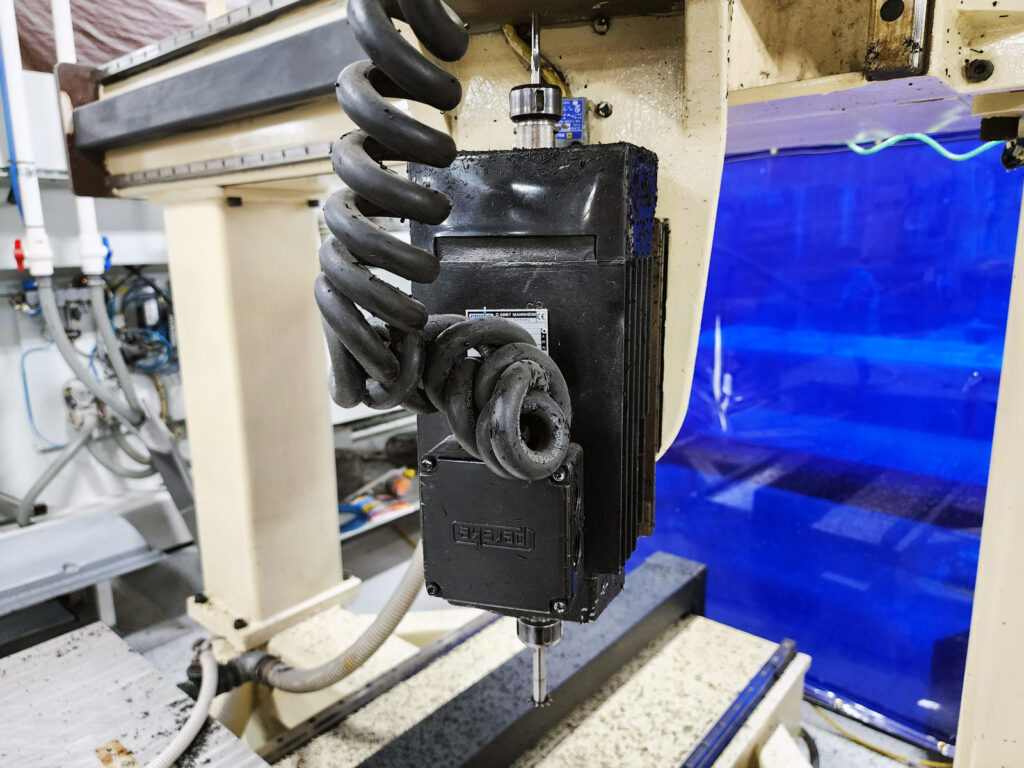

- Dual-ended 7.5 hp Perske spindle motor

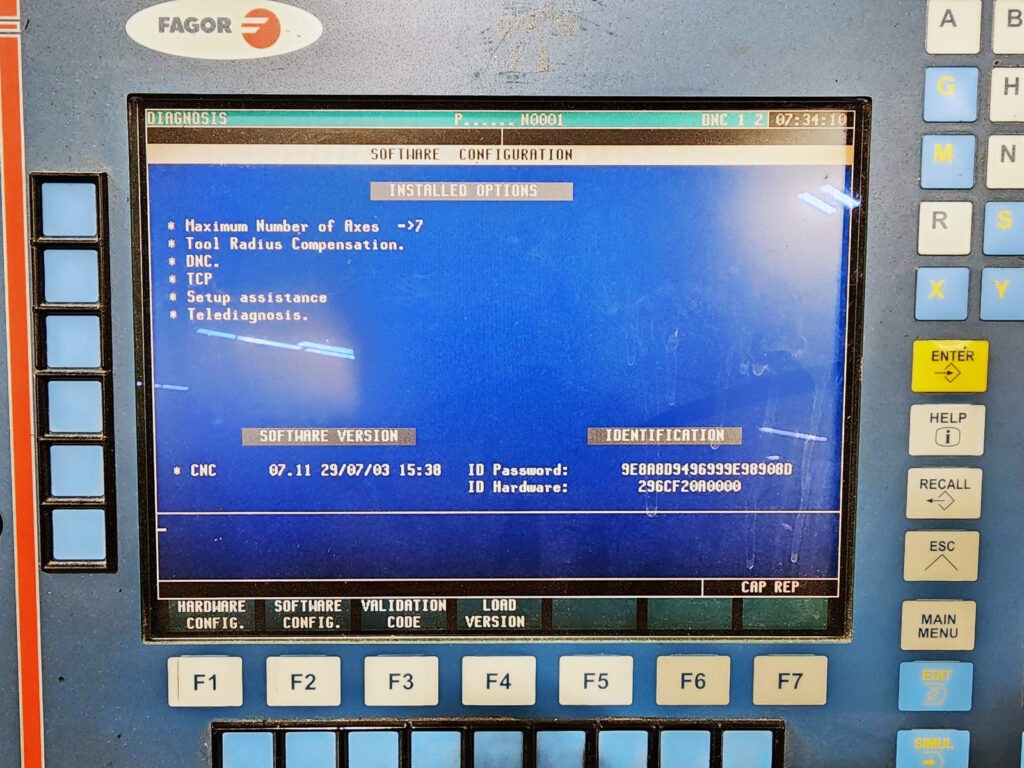

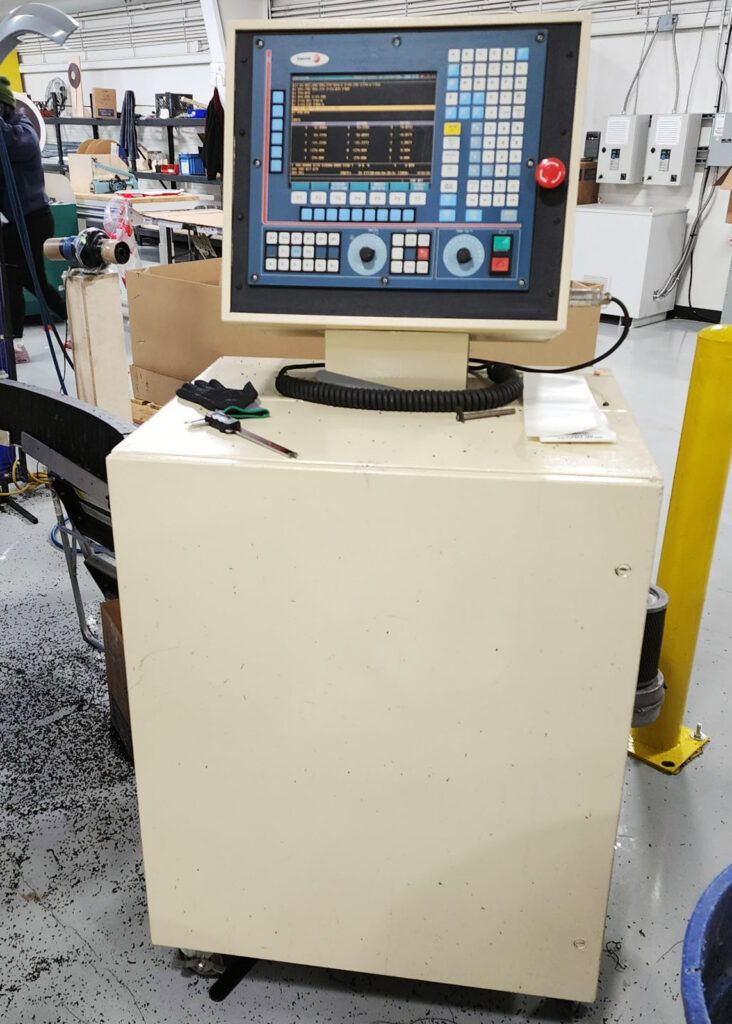

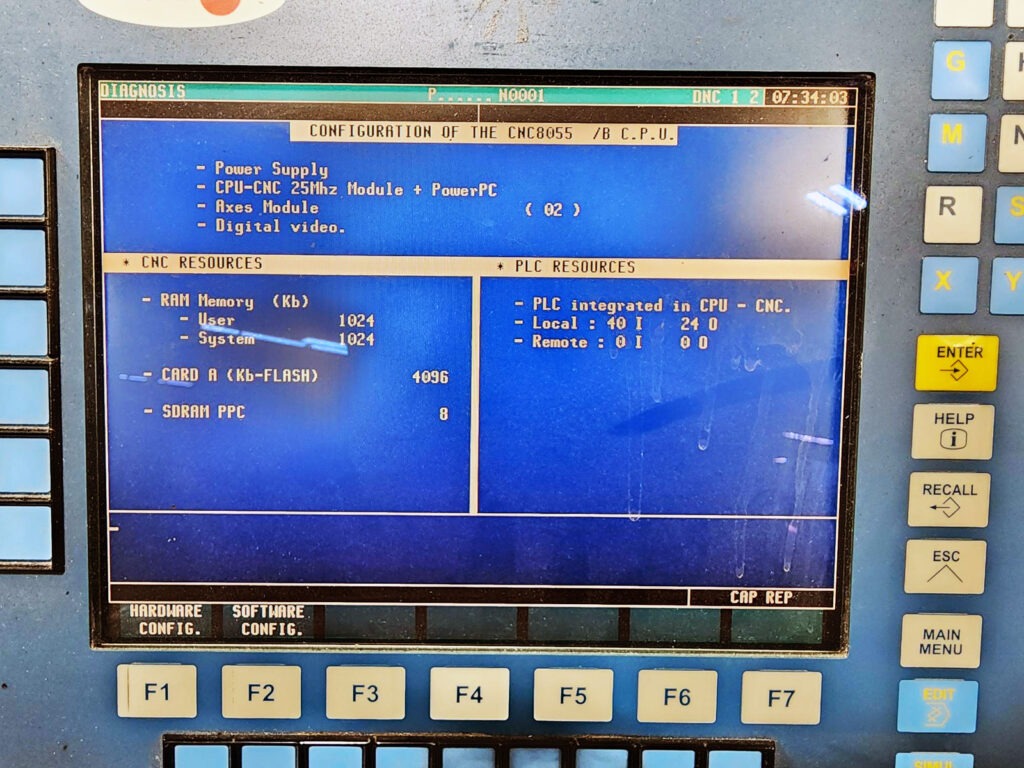

- Fagor 8055 CNC system controller
- TCP
- Tool Radius Compensation
- Euchner Teach Pendant
- 440 V / 3 Phase electrical requirements
- 90PSI, 5CFM air requirement
- B Axis +/- 360 degrees
- C Axis +/- 180 degrees
- Speeds:
- X-Axis – 800 in./min.
- Y Axis – 800 in./min.
- Z Axis – 400 in./min.
- C Axis – 100 degrees/second
- B Axis – 100 degrees/second
- CNCPD reference #E776
