Motionmaster 5-Axis CNC Router | Twin 5x5 & Perske Spindle

Multi-Axis Machining Center with Dual 5×5 Moving Tables

Engineered for complex multi-surface geometry, this 5-axis Motionmaster CNC router provides a rigid, fixed-bridge platform for heavy-duty industrial carving, trimming, and mold making. Outfitted with twin 5’ x 5’ aluminum moving tables and a 30-inch vertical Z-axis stroke, this machine excels at navigating deep-cavity setups and high-profile workpieces without component interference.

The structural mass of the frame is paired with a Perske spindle, known across the industry for reliability, balance and longevity under continuous loads. Retrofitted and rewired in late 2022 with a modern Fagor 8055 Power controller, this platform delivers the mechanical integrity of classic iron combined with the rapid processing speeds and ethernet connectivity required by modern CAD/CAM departments.

Request A Quick Quote for #E845 Call (858) 922-4967

5-Axis Work Envelope & Table Engineering

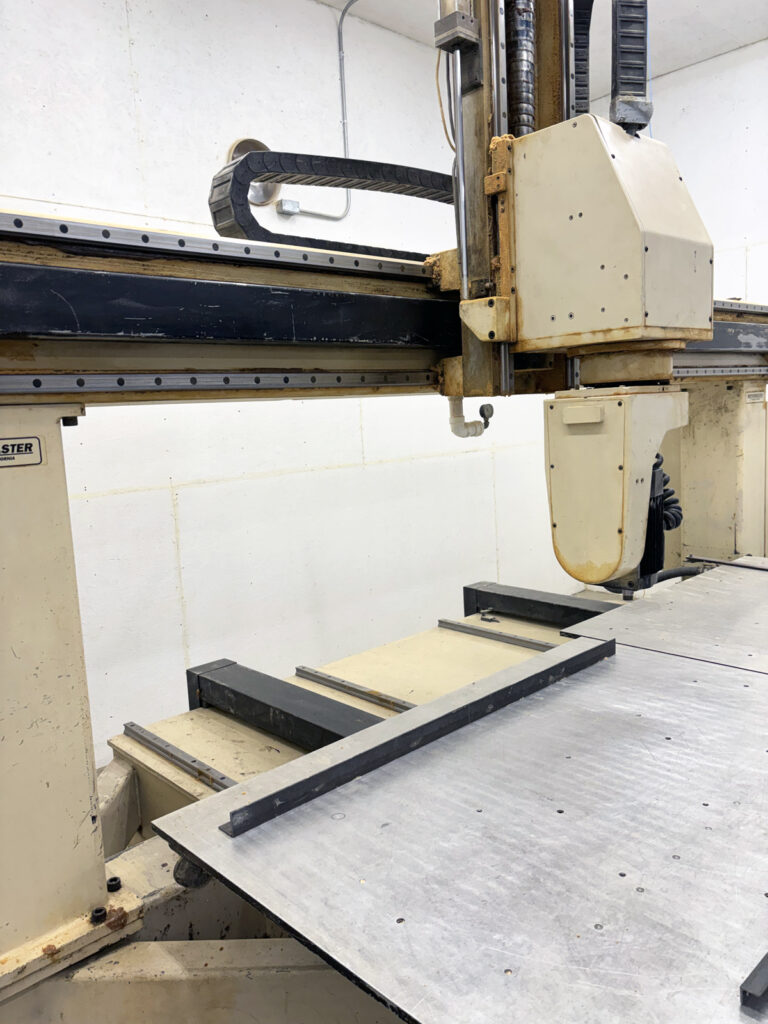

Table Configuration: Dual 5’ x 5’ (60” x 60”) aluminum grid vacuum tables.
Production Modes: Designed for pendulum processing configurations, allowing operators to safely clear and reload one table while active continuous 5-axis machining occurs on the parallel table.
Vertical Travel: 30” of programmable Z-axis stroke, giving ample overhead clearance for long tooling, complex aggregate angles, and tall profiling fixtures.
Multi-Axis Articulation: Fully synchronized rotational and tilting axes provide fluid simultaneous 3D interpolation.

Spindle & Tooling Package

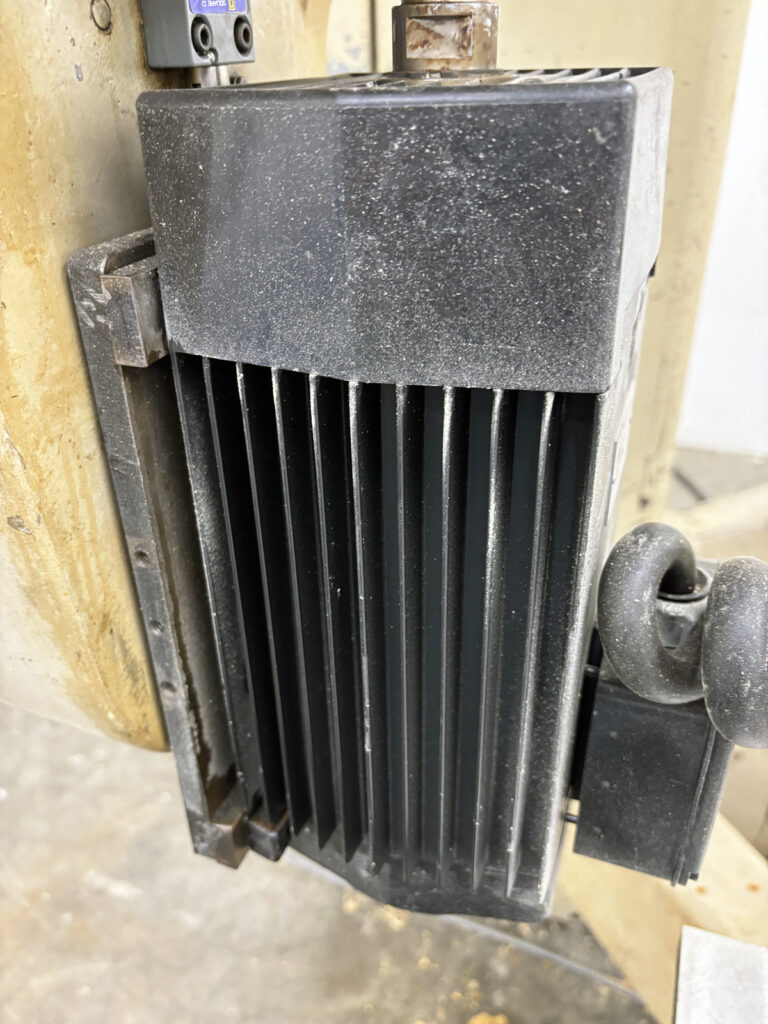

Spindle Manufacturer: Perske (Precision engineered in Mannheim, Germany).
Power Rating: 5.2 kW (7 HP continuous duty).
Design Architecture: Dual-ended manual-change spindle configuration, offering versatile dual-end indexing capabilities or fast secondary tooling options.

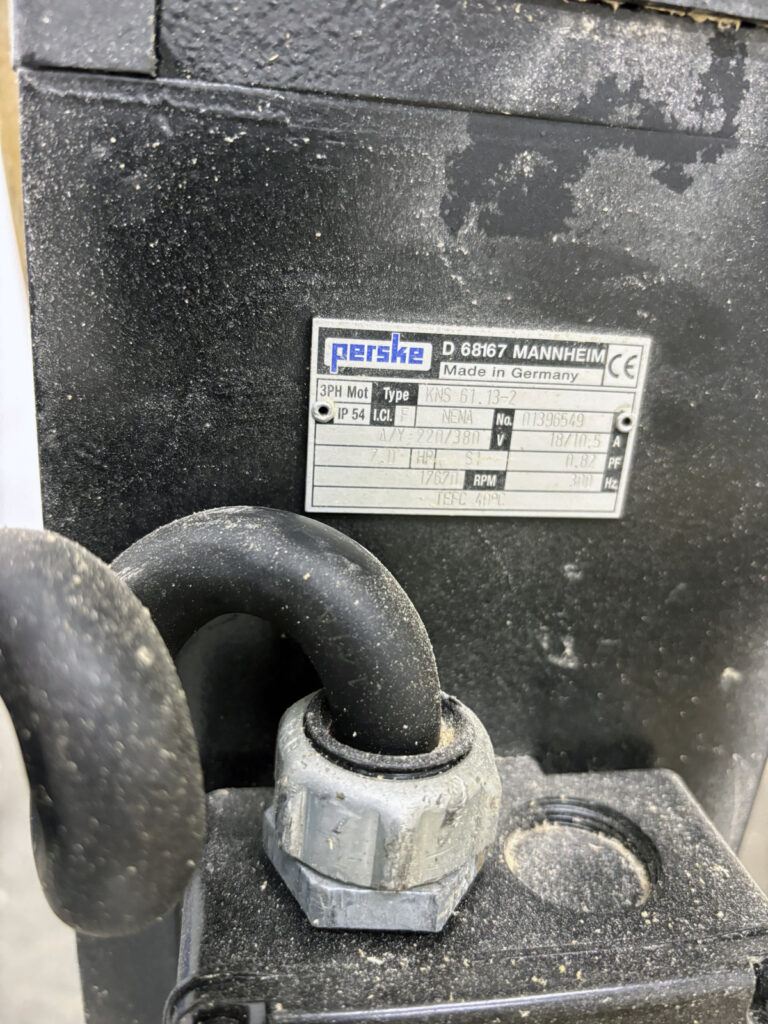

Nameplate Specs: Type KNS 61.13-2, 380V, 300Hz, 10.5A running at a rated speed of 17,670 RPM.
Enclosure Rating: TEFC (Totally Enclosed Fan Cooled) IP54 rated motor housing to guard against fine composite dust or foam particulate infiltration.

Integration Requirements

Electrical Power: 380 Volts, 3-Phase, 60 Hz.
Pneumatic Supplies: Clean, regulated shop air line connection required.
Rigging Layout: Fixed-bridge design with twin independent moving tables. Accurate transport weights and external footprint spacing coordinates can be provided to your rigger upon inquiry.

Operational Status

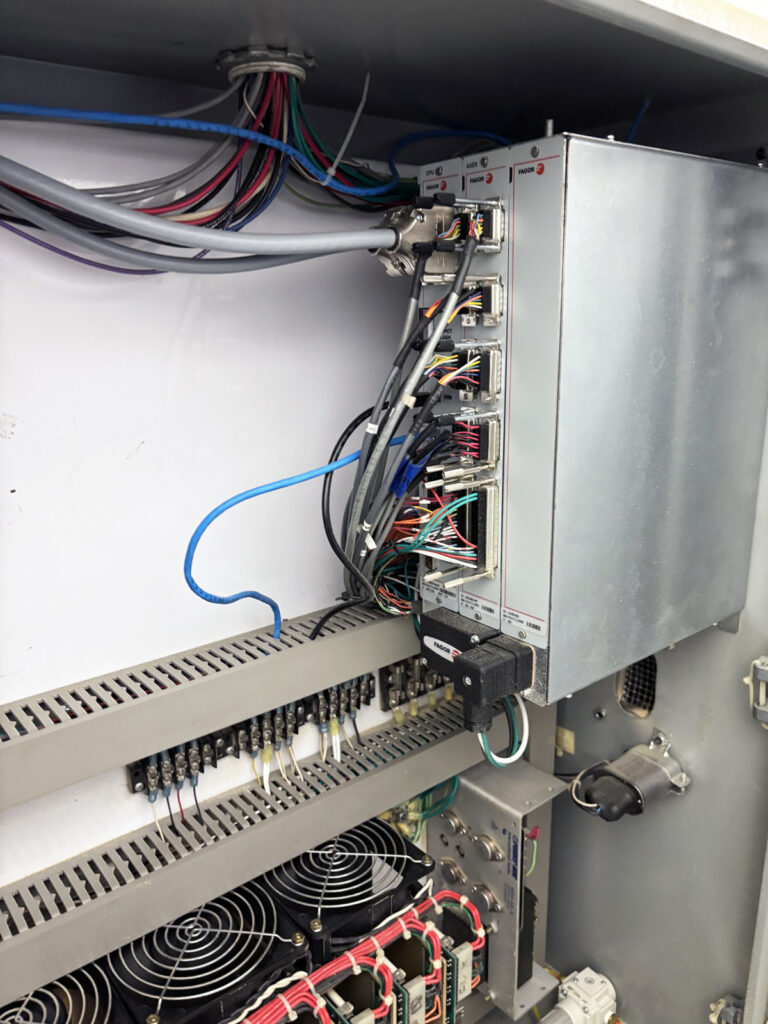

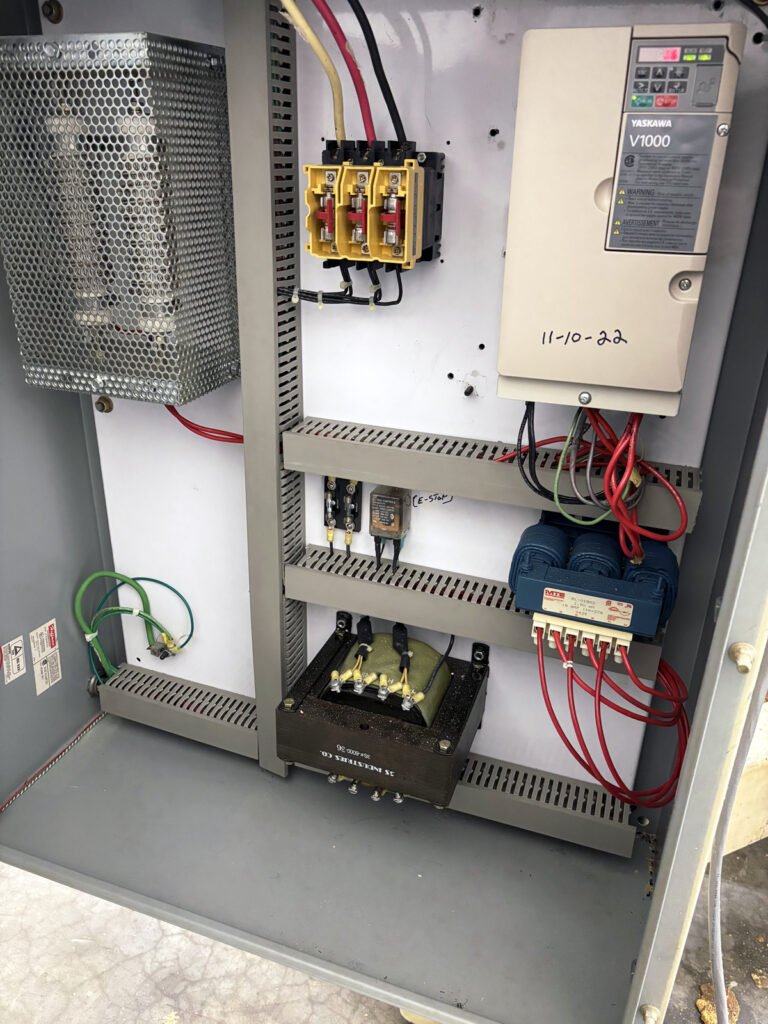

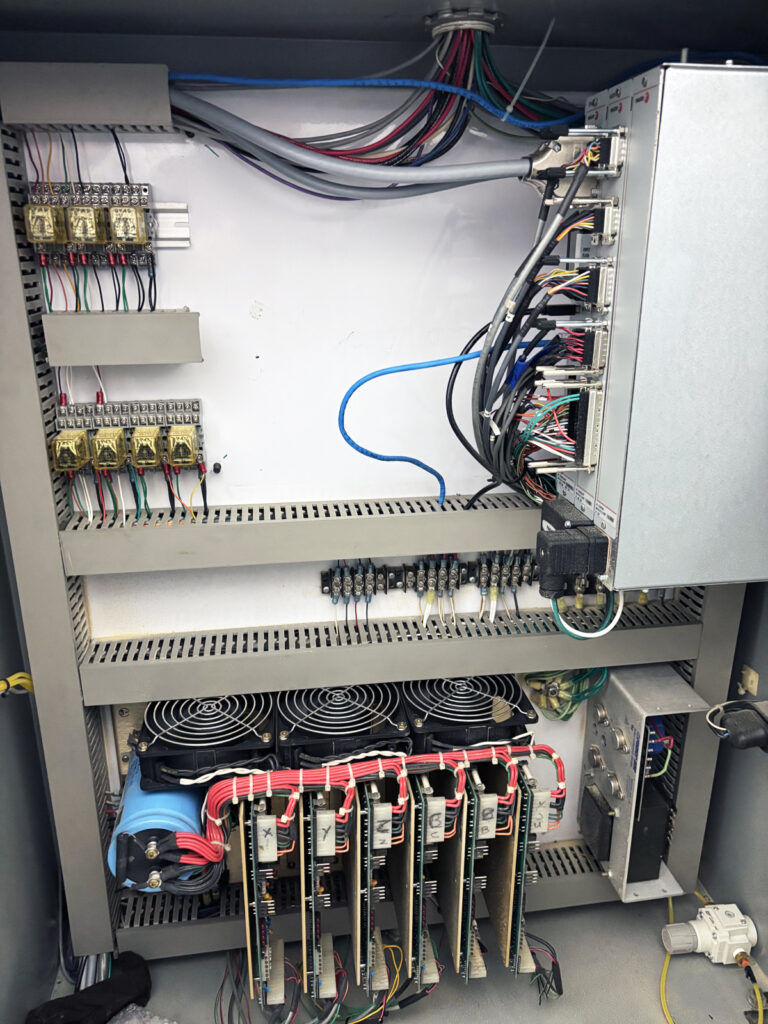

Excellent Post-Retrofit Condition. This machine underwent a comprehensive electrical rebuild and control retrofit by our internal technical team in December 2022. It features clean backplane layouts, updated wiring schematics, and has been thoroughly tested for multi-axis tracking accuracy. Available for full operational demonstration under power.

Motion Control & 2022 Control Retrofit

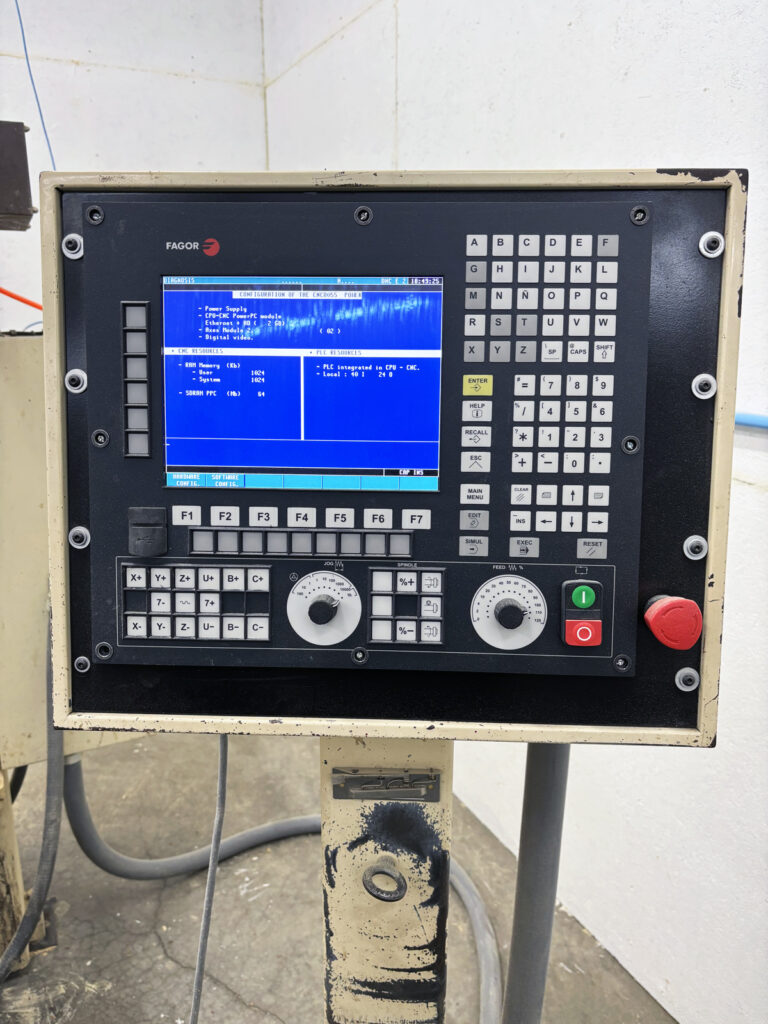

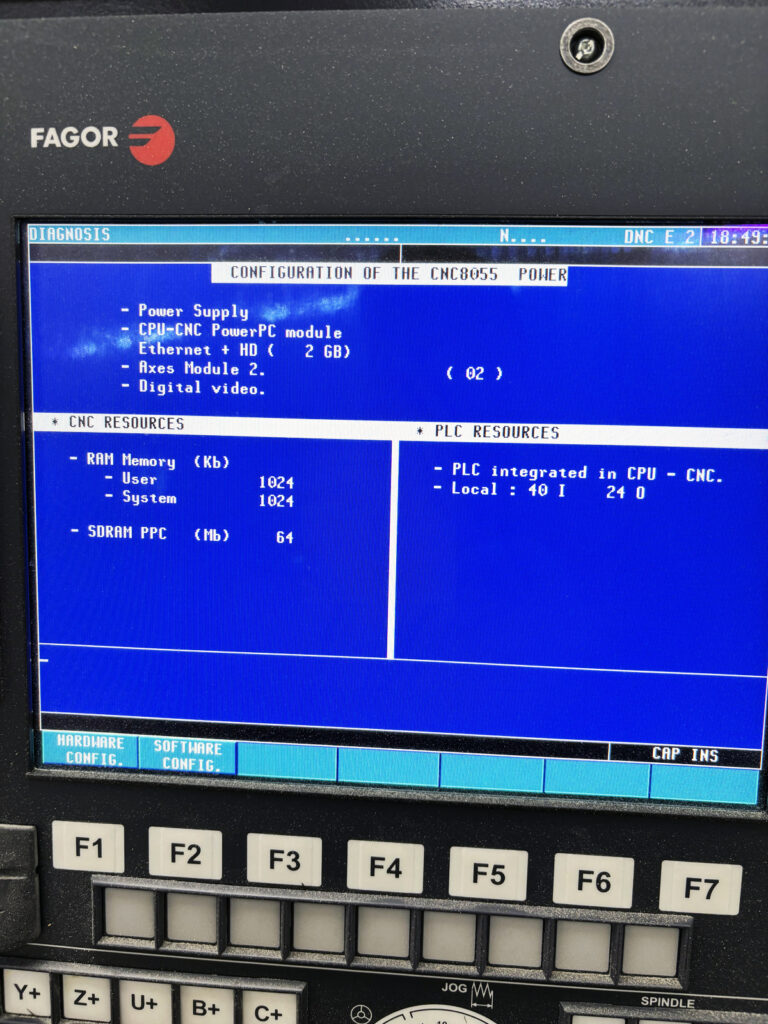

CNC Control Platform: Fagor 8055 Power CNC system (featuring an advanced CPU-CNC PowerPC module and built-in diagnostic video interface).
Simultaneous Processing: Full simultaneous 5-axis motion pathing with integrated tool center point management for precise compound angle contouring.
Data & Networking: Integrated Ethernet connection, 2 GB Hard Drive storage, USB, and RS-232 communication lines for rapid large-file vector loading.
System Rebuild History: Stripped, completely rewired with new electrical routing, and converted to the Fagor 8055 Power control platform by our technicians at the end of 2022.

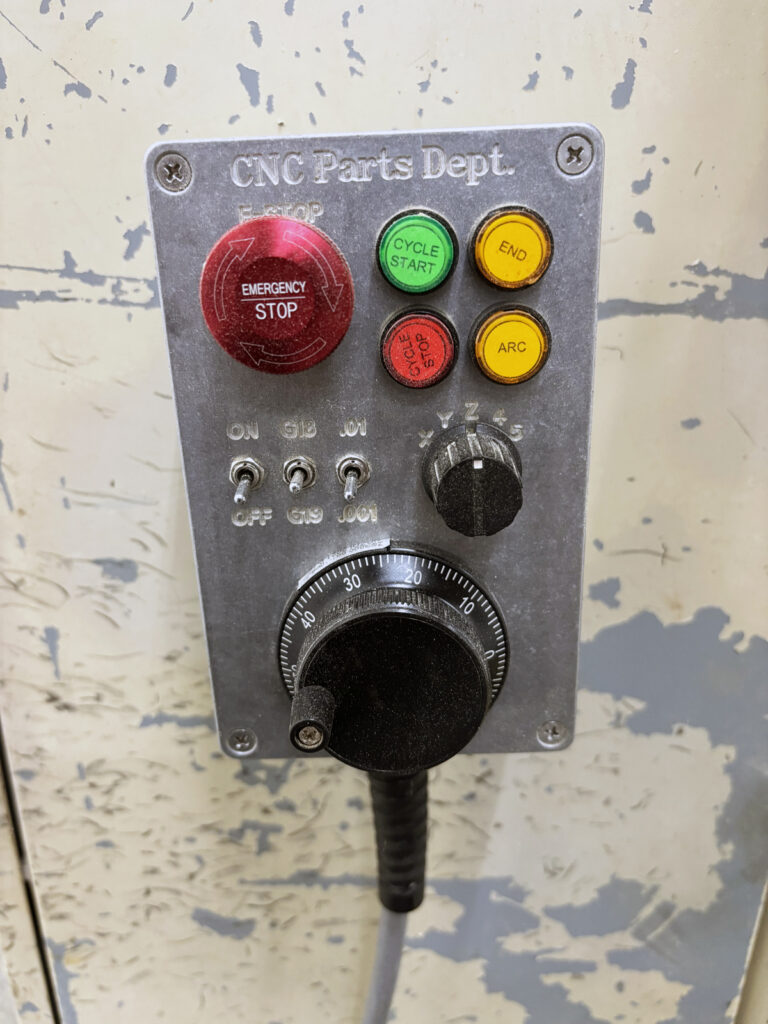

Setup Interface: Custom CNC Parts Dept. (CNCPD) handheld remote teach pendant equipped with a high-resolution manual pulse generator (MPG) dial, dual-axis dial selectors, cycle controls, and a dedicated emergency stop switch.

Technical Support

Because our service technicians provided CNC retrofit and upgrade services for this machine in 2022, we retain the complete engineering map, wiring schematics, and PLC configuration data for this exact layout. This ensures your maintenance team or future operators will have direct, friction-free technical clarity that standard legacy machines simply cannot offer. Whether you are expanding a high-volume thermoforming facility or scaling up structural pattern production, this platform delivers new-machine dependability at a fraction of the capital investment.
