2016 DMS 5-Axis CNC Router | Dual 5×10 Tables & 48″ Stroke

2016 DMS 5 axis CNC router, Dual Cell, Two 5×10 tables, 48 in. stroke, Hiteco ES939L ATC spindle, Fagor 8055 CNC. #E842

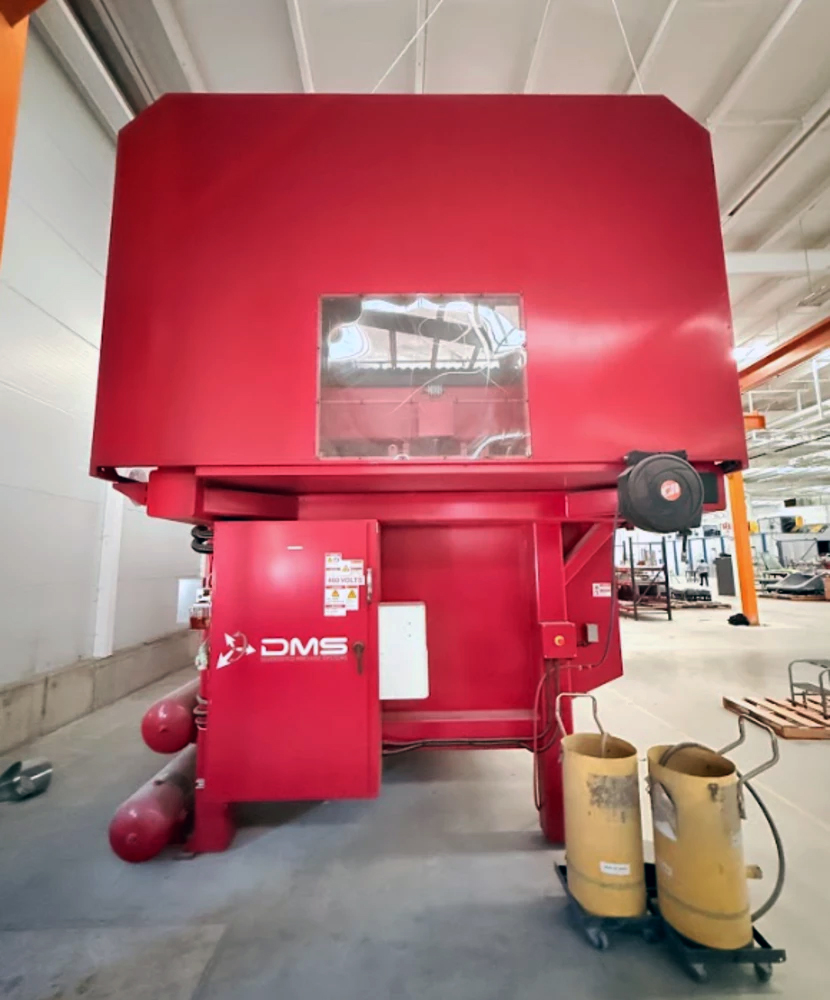

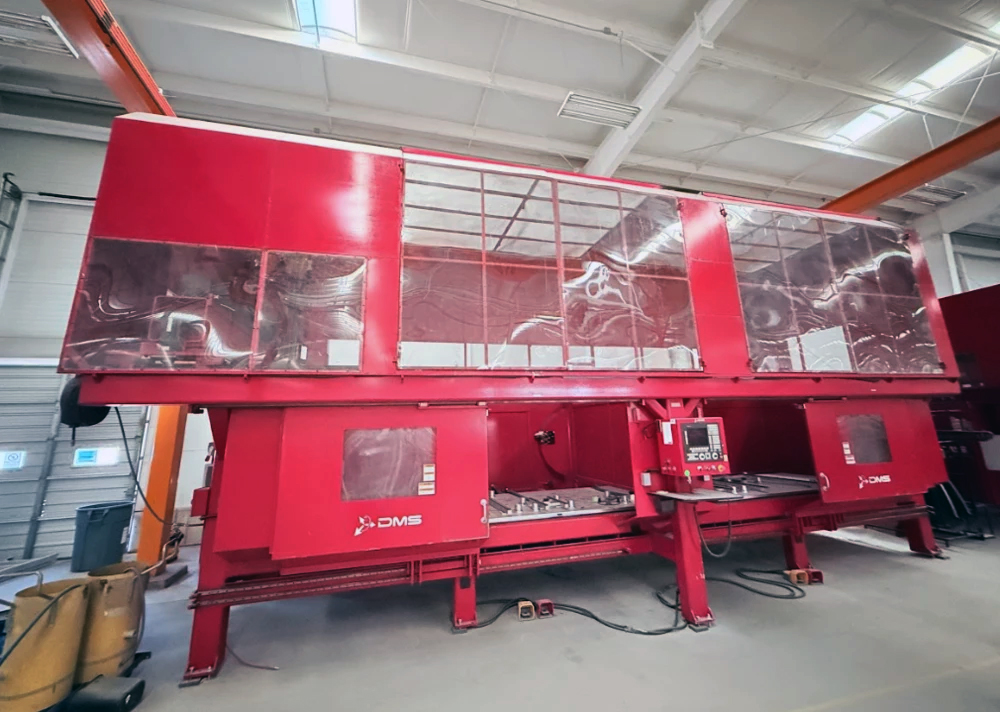

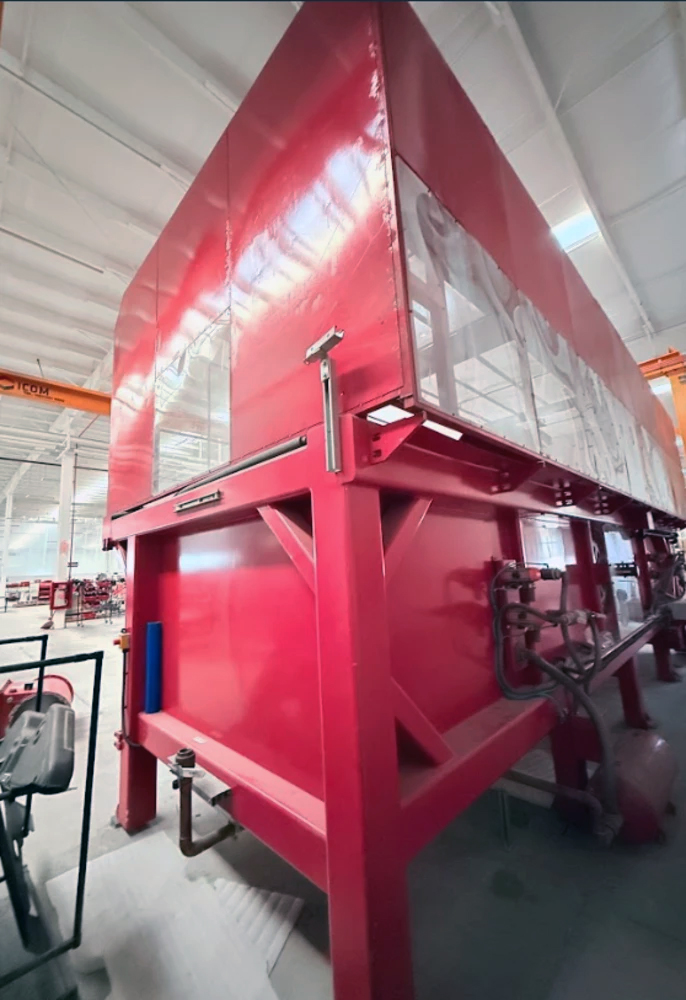

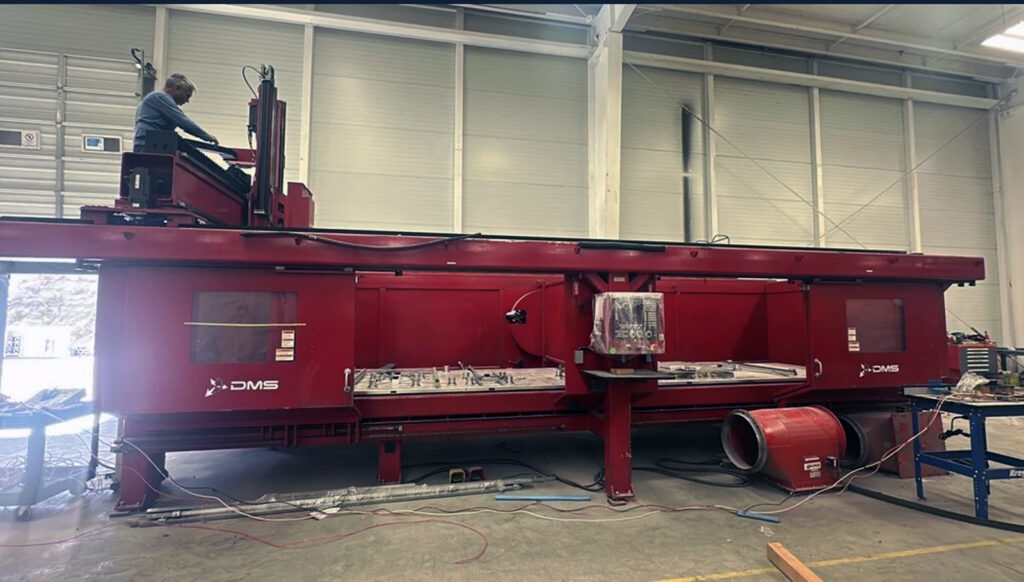

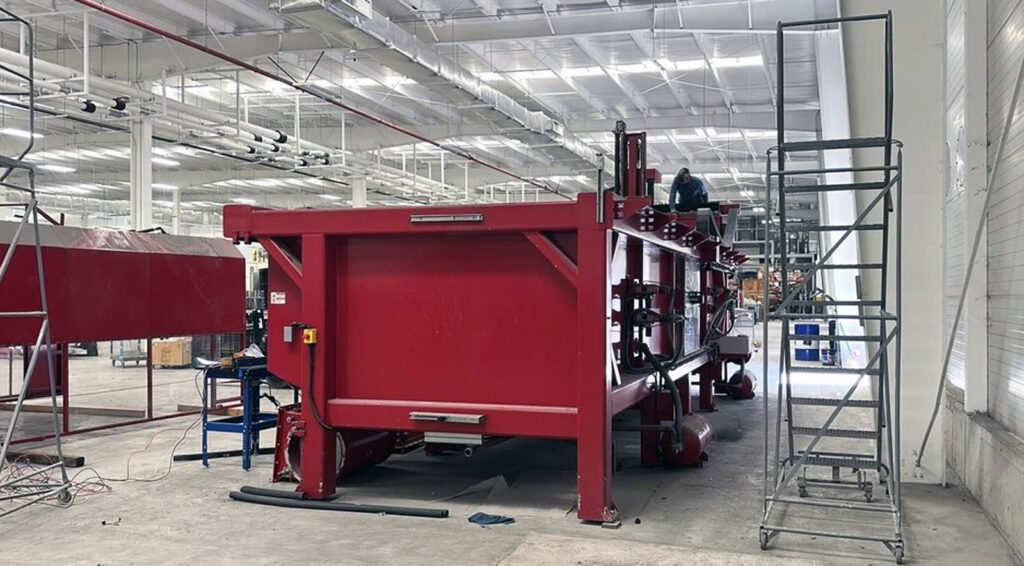

This 2016 Diversified Machine Systems (DMS) 5D5 is a specialized high-rail 5-axis machining center designed for large-format, complex geometry projects. Unlike standard single-table units, this Dual Cell configuration features Twin 5’ x 10’ tables, allowing for continuous pendulum processing. Combined with a 48-inch Z-stroke and an Integrated Tool Length Setter, this machine is engineered to minimize spindle downtime and maximize output in high-volume trimming and pattern-making environments.

Request A Quick Quote for #E842 Call (858) 922-4967

Work Envelope (Dual Cell Configuration)

  • X-Axis Travel: 120″ Total
  • Y-Axis Travel: 60″
  • Z-Axis Travel: 48″ (High-clearance for tall workpieces)

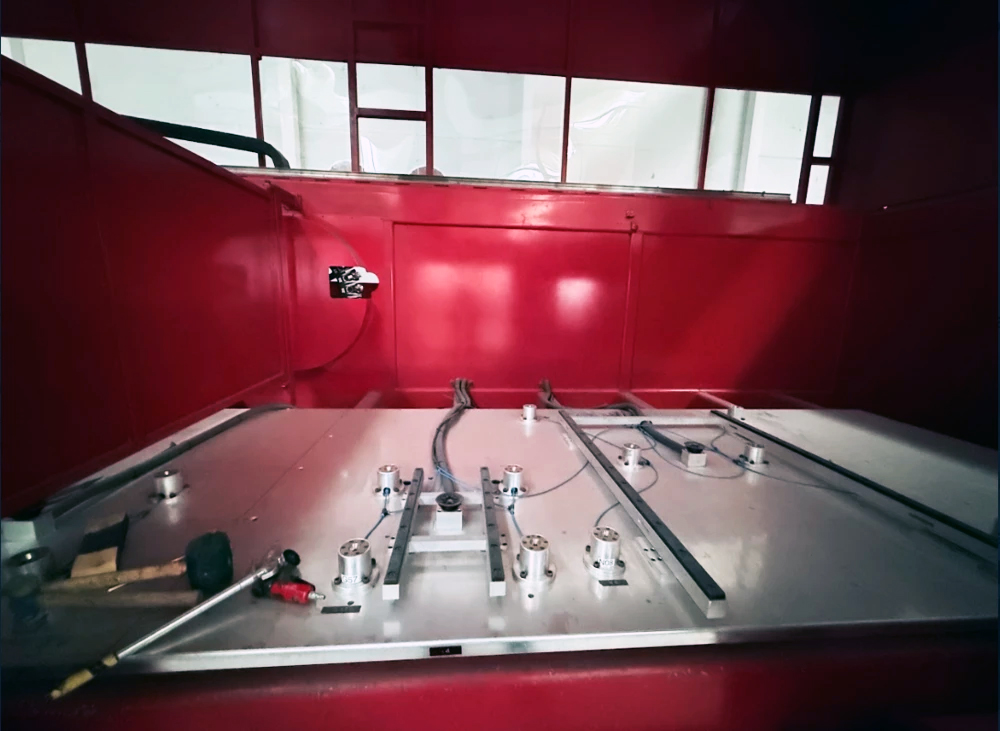

  • Table Configuration: Dual Cell / Twin Table System w/ two independent 60″ x 120″ (5’ x 10’) tables.
  • Operational Mode: Capable of independent operation for “Pendulum Processing” or synchronized for large-format single-part machining.
  • Rotary Axes: C-Axis ±363° / B-Axis ±115°

Spindle & Tooling

  • Model: Hiteco (ES) 939L High-Frequency Spindle (16 HP / 24,000 RPM).
  • Cooling: Liquid-cooled for continuous high-duty cycle operation.
  • ATC Capacity: 30-Position Rotary Carousel.
  • Calibration: Integrated Tool Length Setter automates tool offset measurements, ensuring sub-millimeter precision after tool changes and significantly reducing setup time.

Motion & Control

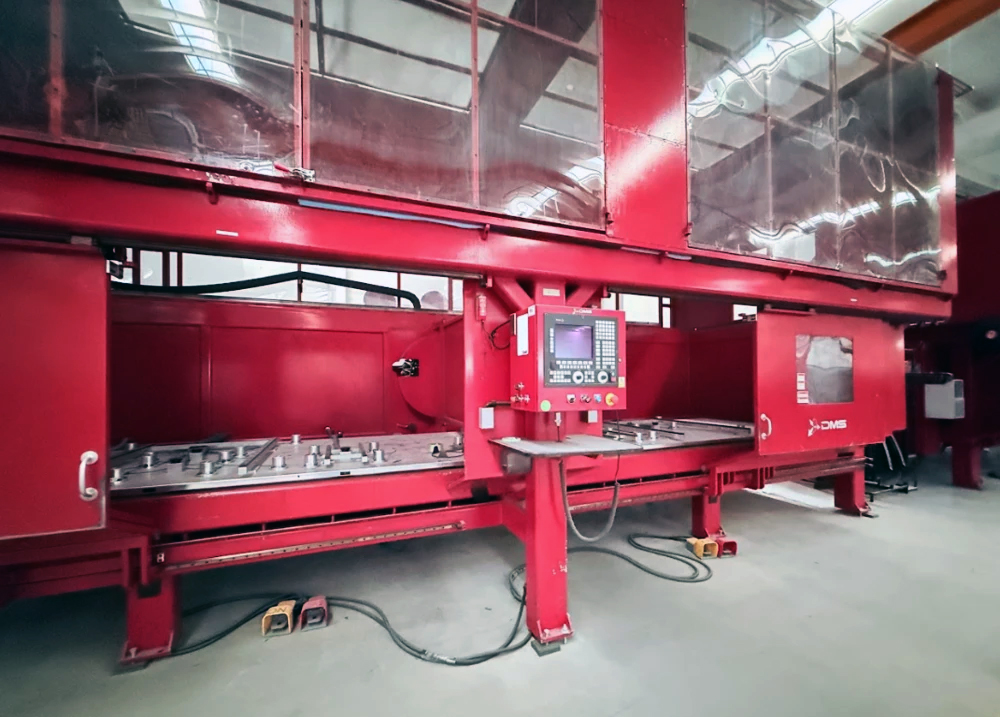

  • Controller: Fagor 8055 CNC (Configured for Dual Cell management).
  • Feedback: Absolute Encoders on Servo Motors
  • Drive System: Fagor AC Digital Sercos Drives for synchronized, high-speed contouring.
  • Operator Interface: Jog Handwheel (MPG) for precise manual positioning and setup.

Integrated Systems

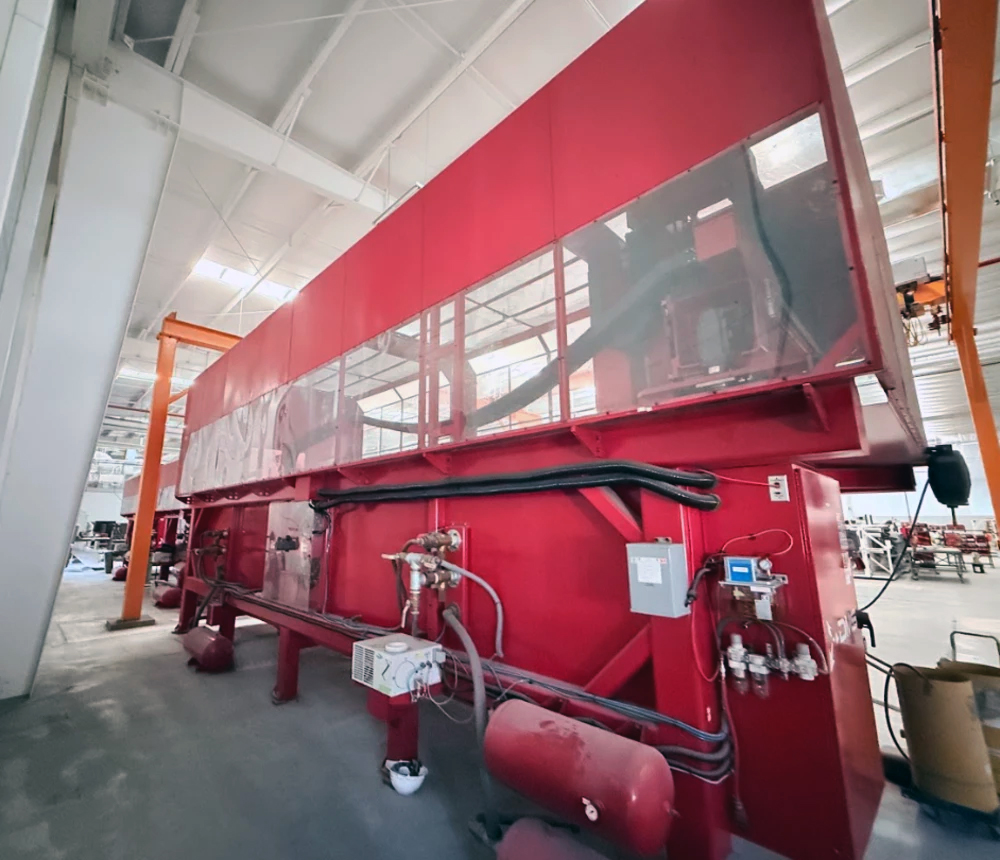

  • Lubrication: Automatic Lubrication System (Autolube) ensuring rail and ball screw longevity.
  • Environment: Interior lighting for high-visibility during deep-cavity machining.
  • Stability: Stress-relieved steel frame construction for vibration dampening.
