GM2320-16-02001810-031 Glentek Servo Motor

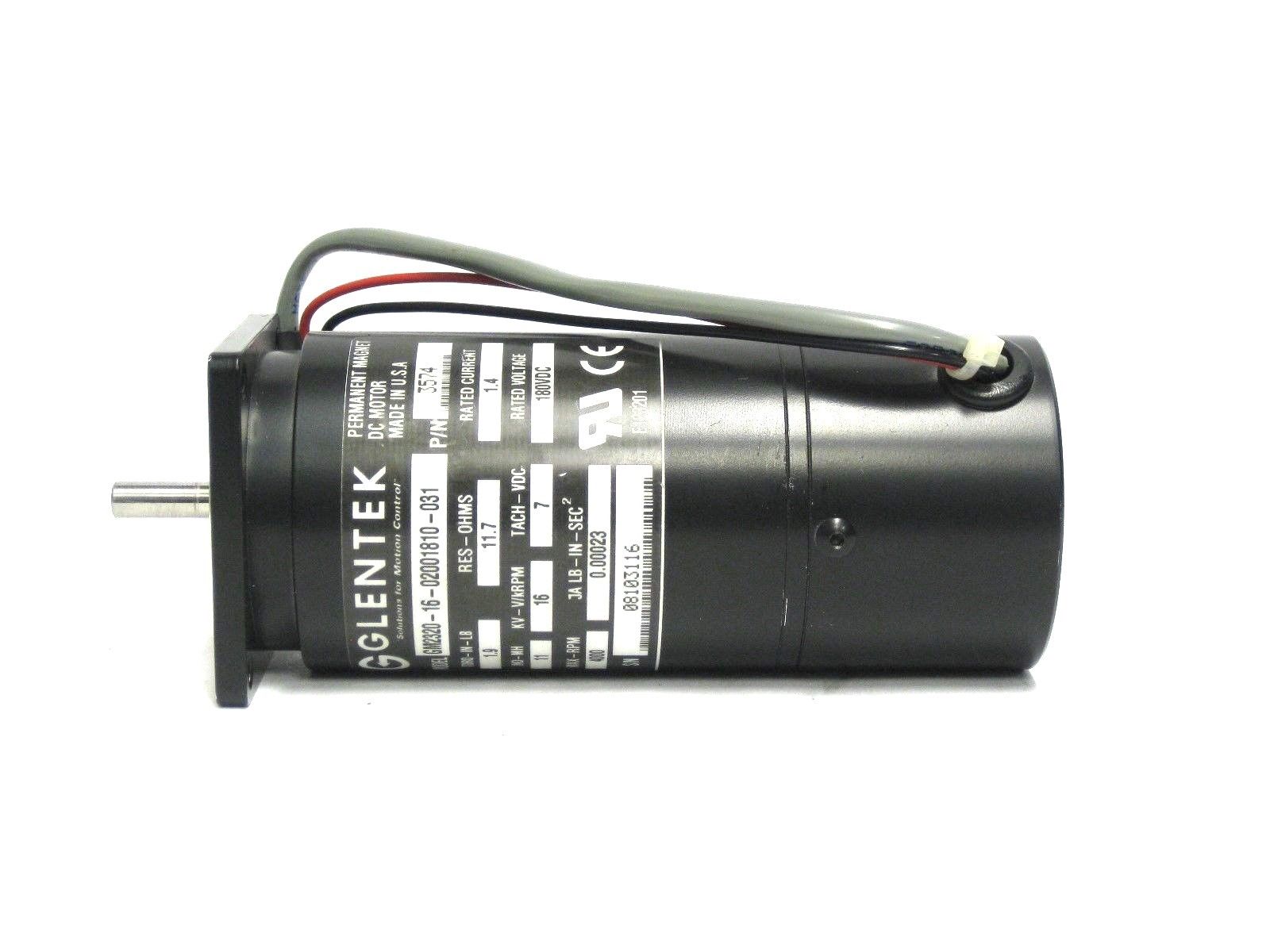

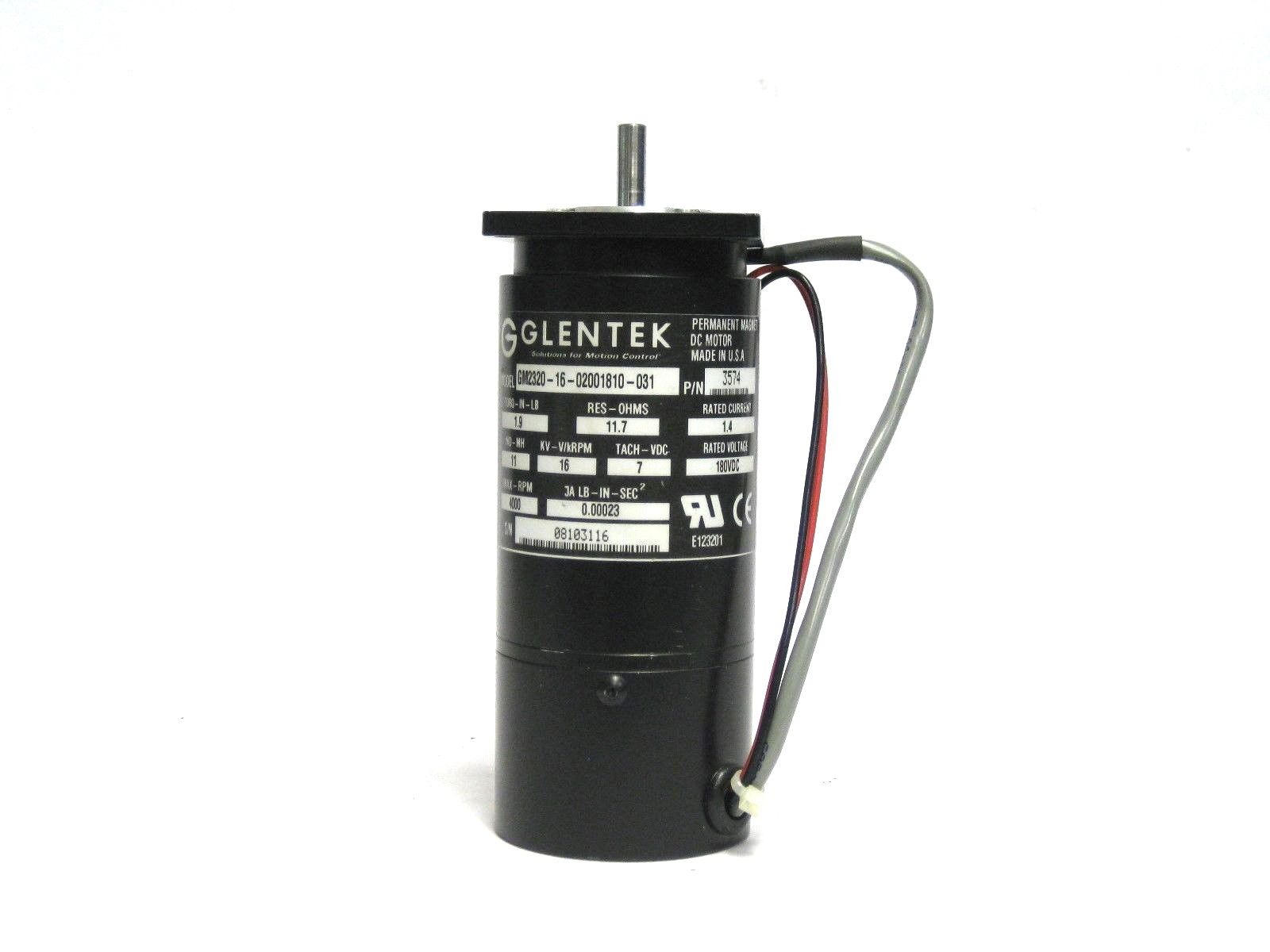

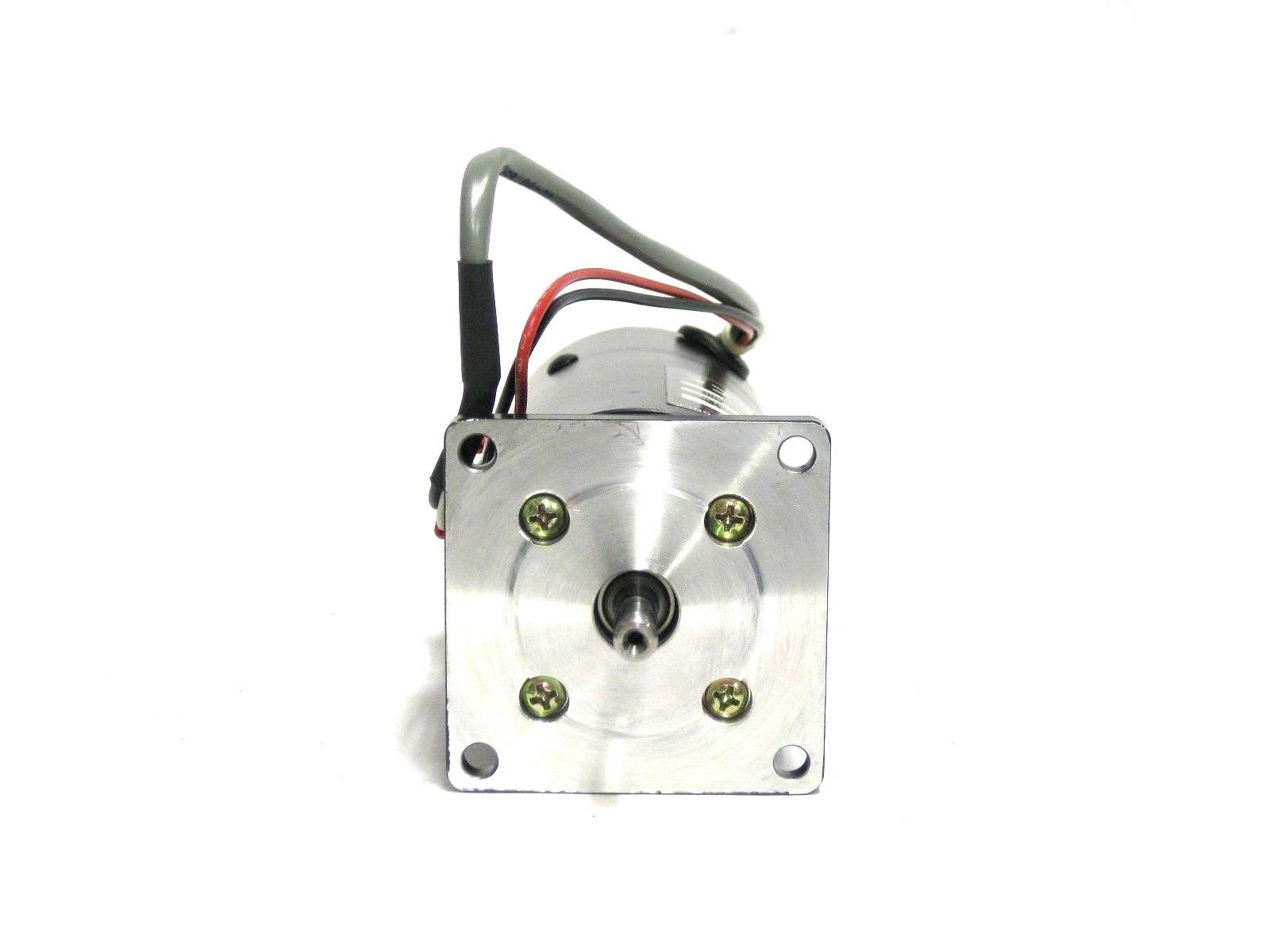

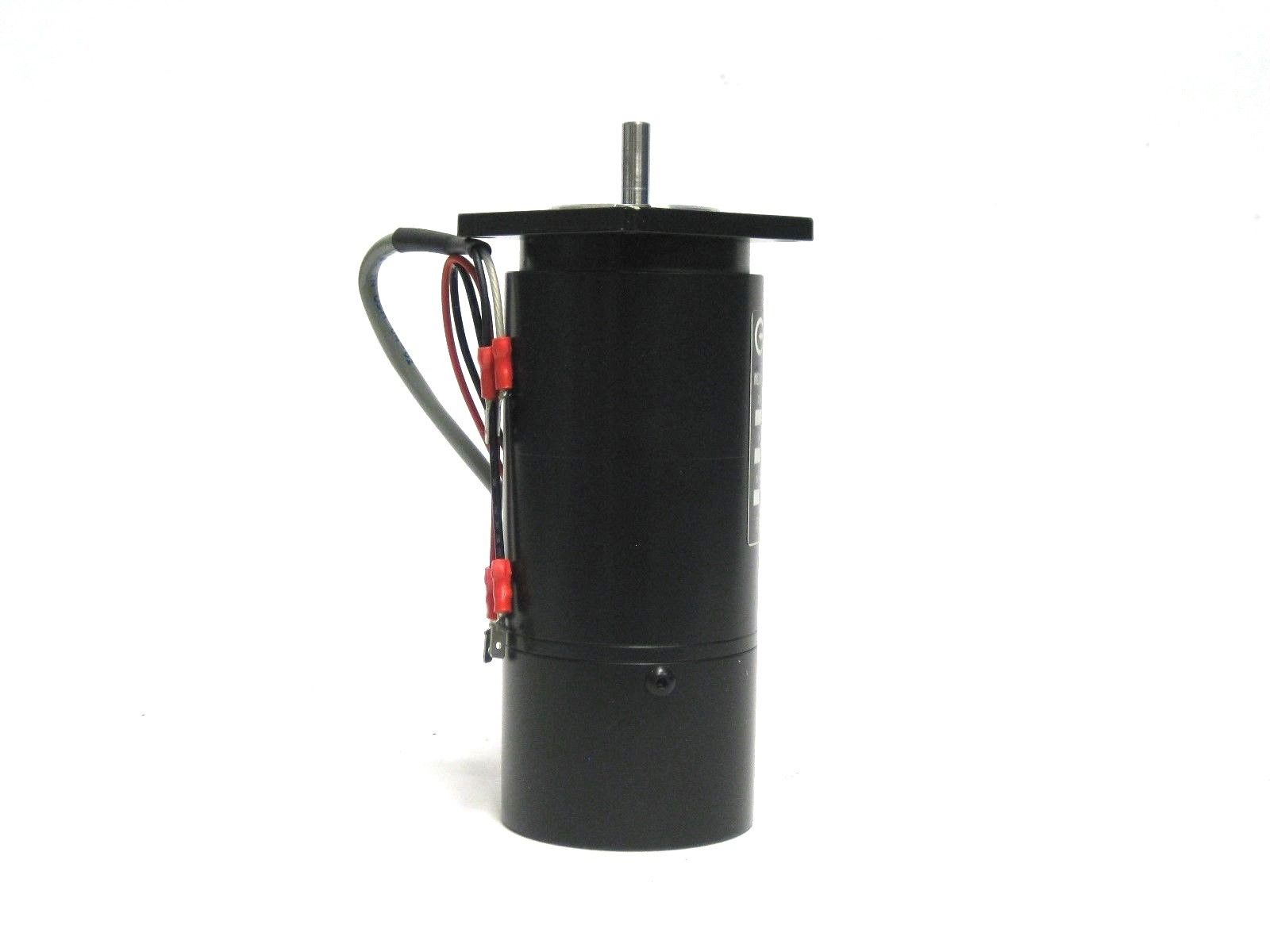

Glentek GM2320-16-02001810-031 permanent magnet DC servo motor.

Only 1 left in stock

Request More Information

CNC Router Part Request

For a fast and easy CNC router part request, send us a message using the form provided.

SKU: GM2320-16-02001810-031 Category: Tags: , Brand:

Product Description

GM2320-16-02001810-031 Glentek permanent magnet DC servo motor. New, old stock.

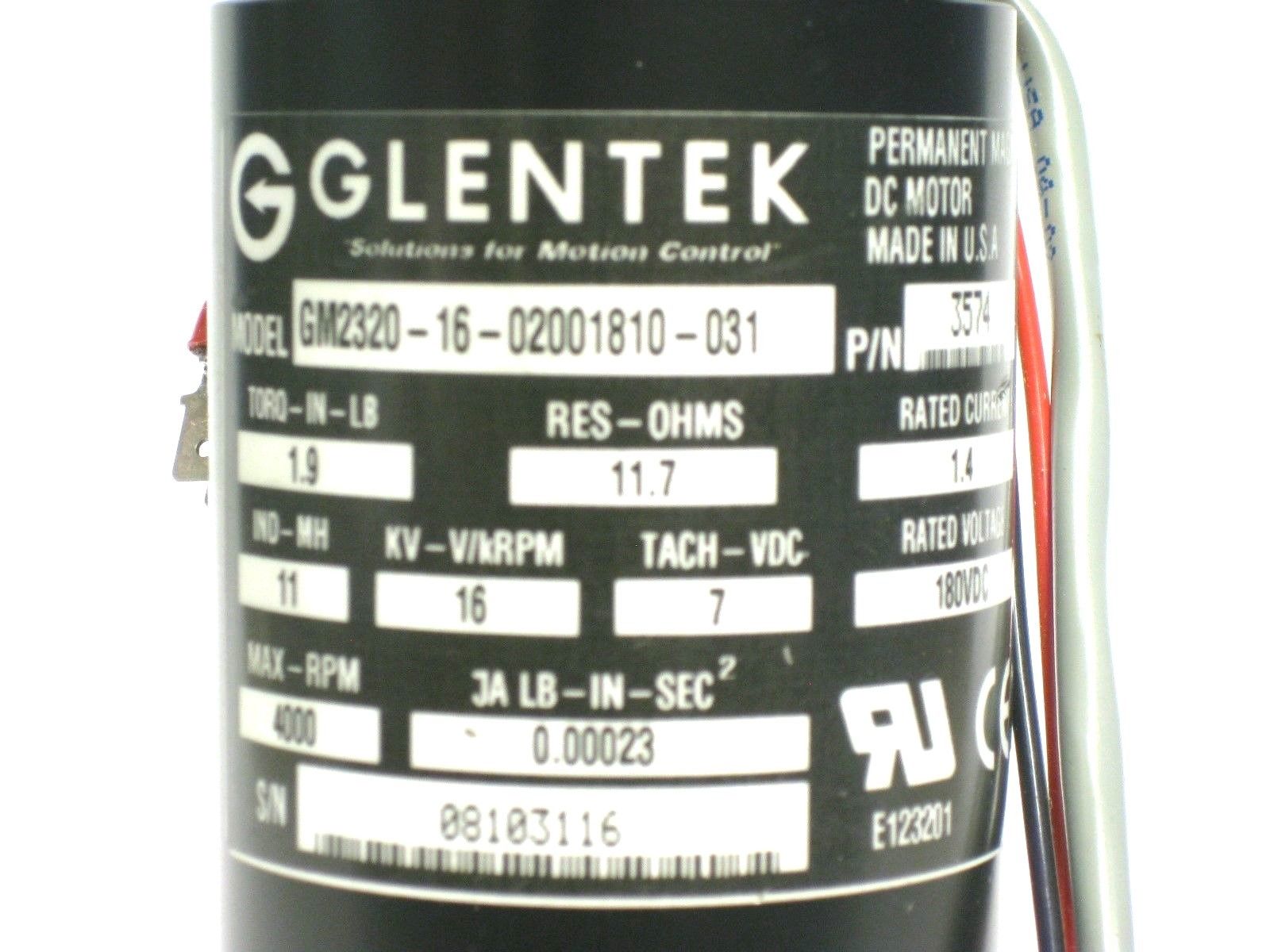

Glentek GM23020-16 Servo Motor Specifications:

  • Model: GM2320-16-02001810-031
  • Max Voltage: 180 VDC
  • Max Current: 1.4A
  • Torque: 1.9 IN-LB
  • Max RPM: 4000 RPM
  • Serial: 08103116

Additional Information

Weight 4 lbs
Dimensions 12 × 6 × 6 in







New, Old Stock



Glentek GM Series DC Brush Servo Motors

GM series DC brush servo motors utilize traditional ferrite magnets, which are ideal for cost sensitive applications. In addition, the higher inertia armatures provide improved motor to load inertia matching for medium to high inertia loads. This helps to reduce the mechanical shaft resonance, which allows higher servo gains with increased stability. All frame sizes incorporate skewed armatures, which provide ultra smooth operation (i.e. low cogging torque) at all speeds.

  • Continuous Torque Range: 1.9 Lb-in (0.21 Nm) to 113 Lb-in (12.8 Nm)
  • Peak Torque Range: 12.0 Lb-in (1.4 Nm) to 338 Lb-in (38.1 Nm)

Glentek GM/GMR Series Servo Motors

Glentek’s DC brush servo motor line features high performance, skewed armatures, and TENV construction. Industry standard mounting, feedback, sealing, and lead termination options available, along with optional fail safe brakes.
