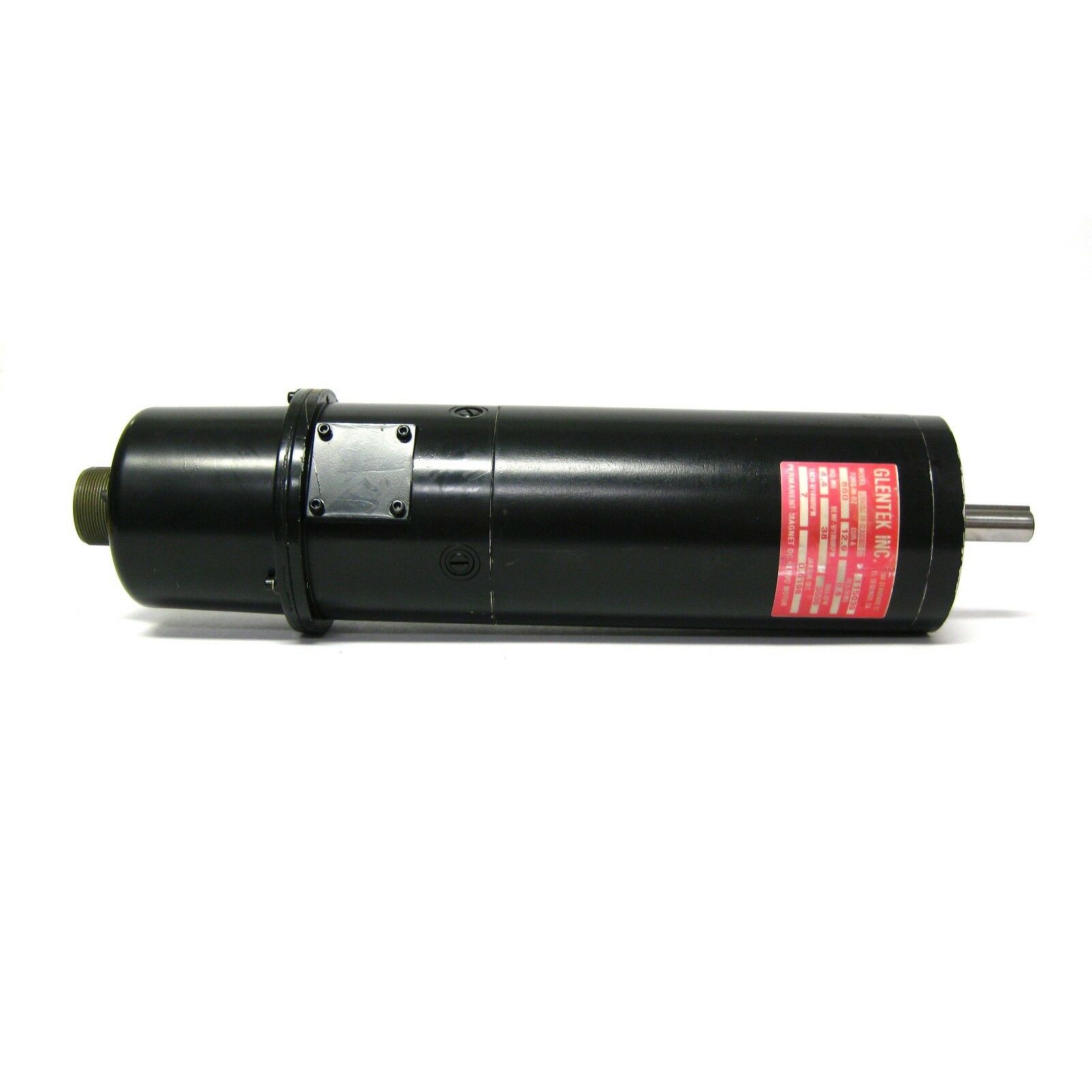

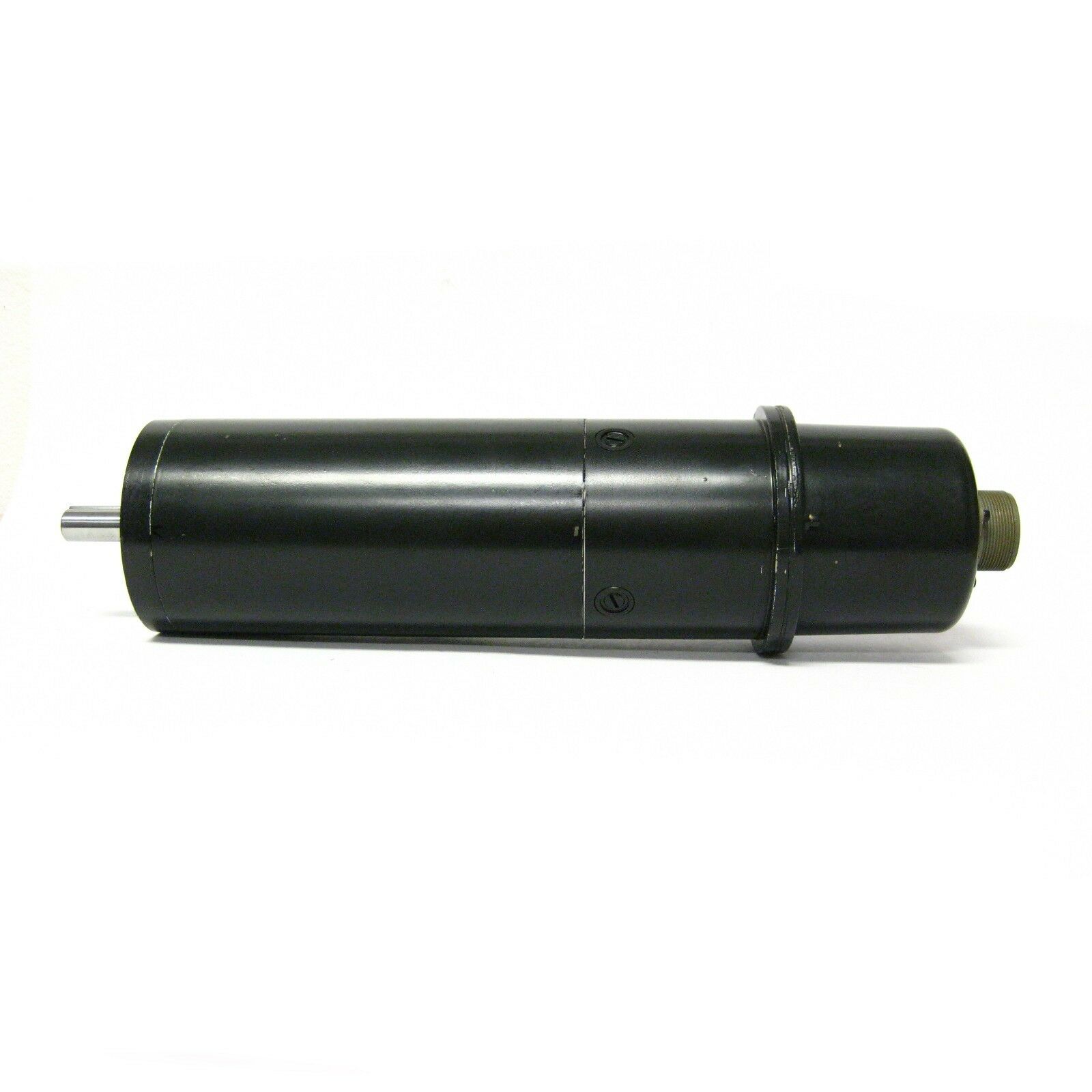

Glentek GM4050-38 DC Servo Motor, Round Flange

$1,152.00

Only 1 left in stock

Glentek GM4050-38-02300800-075 DC brush servo motor with military style (MS) connector, Dynamic Research 1000 count encoder, and round flange. Glentek GM4000 Series. Square flange GM4050-38 motors are available too.

Request More Information

CNC Router Part Request

For a fast and easy CNC router part request, send us a message using the form provided.

SKU: GM4050-38-02300800-075 Categories: , Tags: , , Brand:

Description

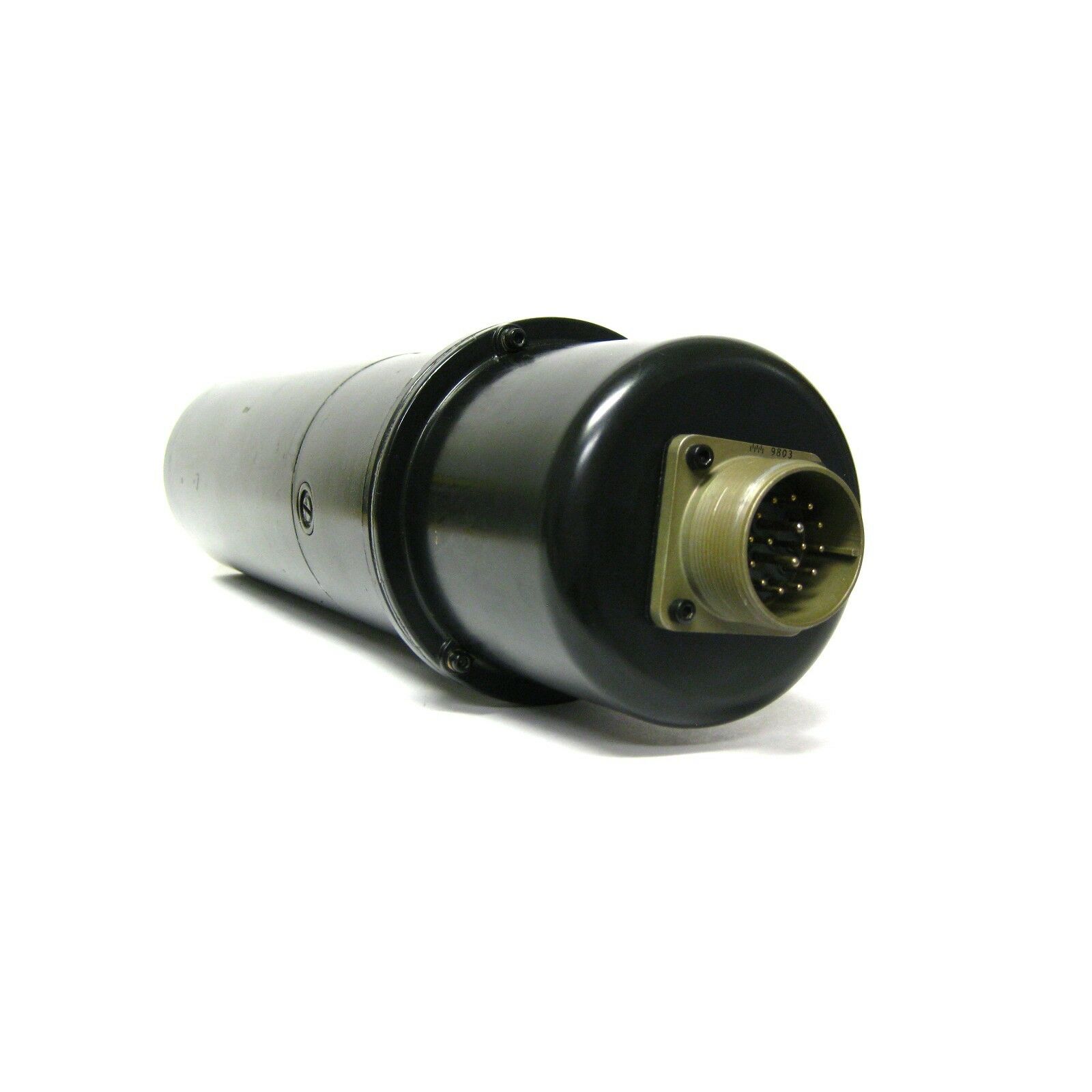

Glentek GM4050-38-02300800-075 servo motor with MS (military style) connector, Dynamic Research 1000 count encoder, and round flange.

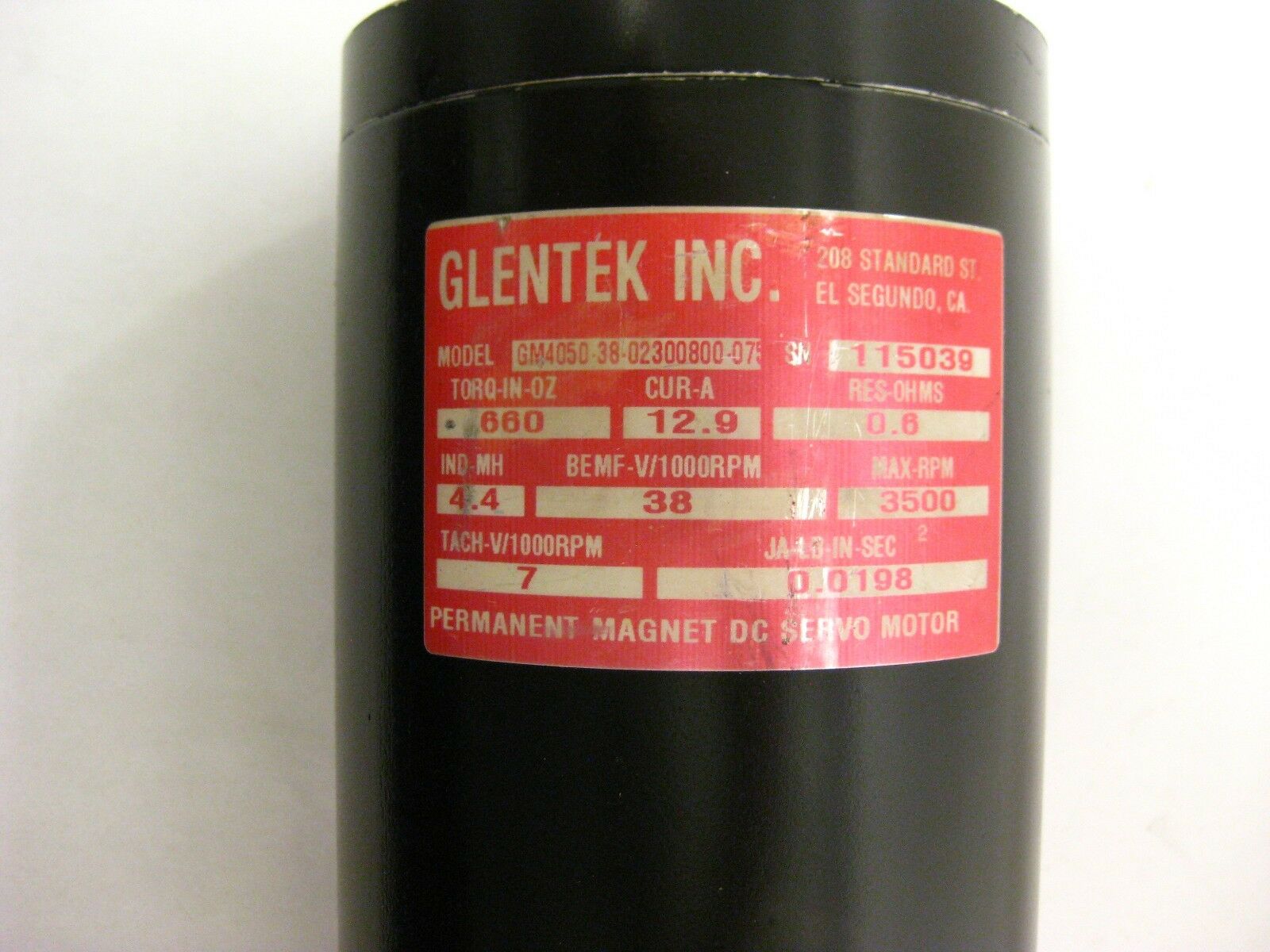

GM4050-38-02300800-075 Specifications:

  • Glentek GM4000 Series

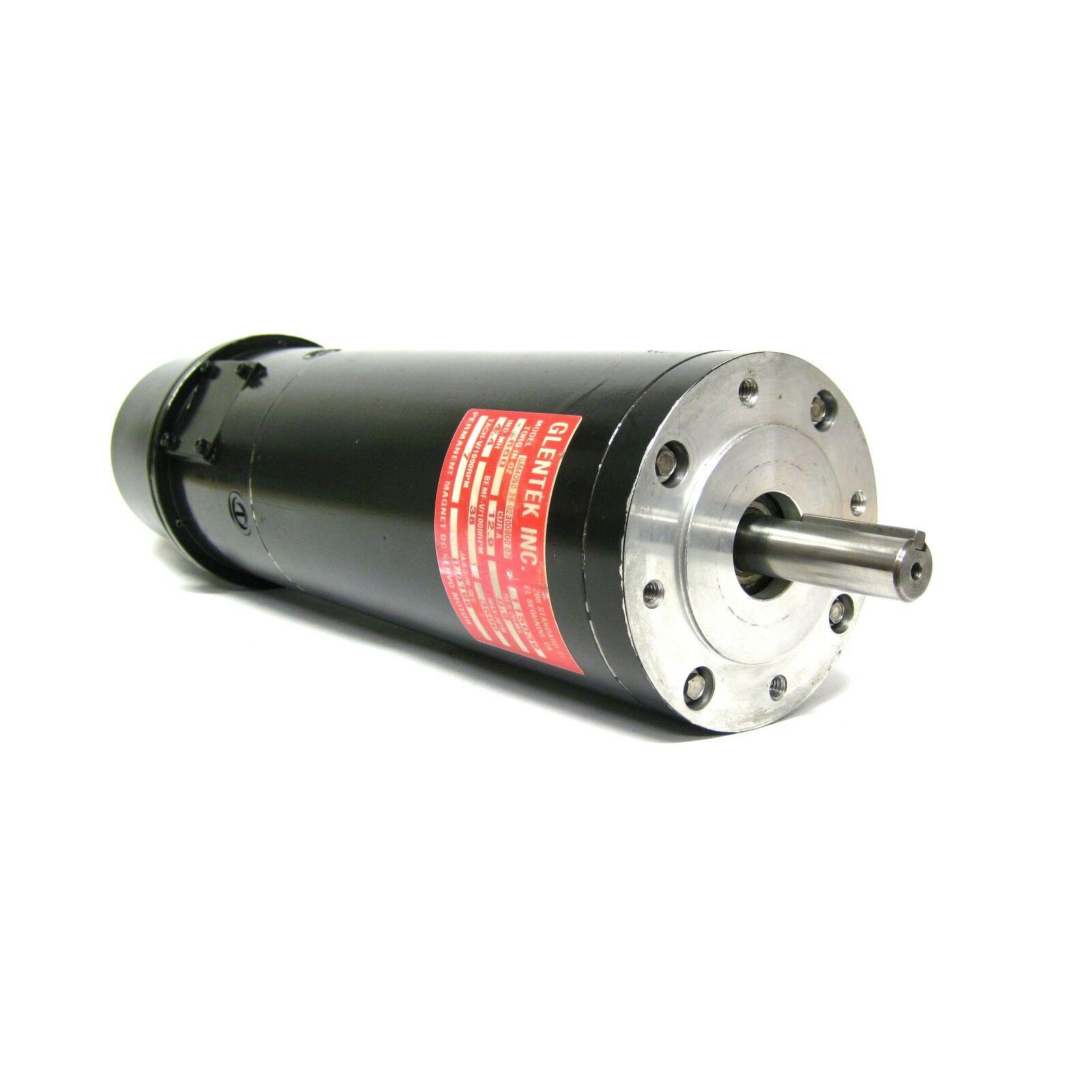

  • Flange Type: Round
  • Frame size: 4.0″ motor
  • Stack length: 2.0″ stack
  • Back EMF Constant: 38 V/Krpm
  • No brake installed
  • 7 VDC Tachometer
  • No revolver installed
  • ‘Special’ lead termination
  • Torque: 660IN-OZ
  • Current: 12.9A
  • Max RPM: 3,500 RPM

Additional information

Weight25 lbs
Dimensions20 × 10 × 10 in
Model

GM4050-38-02300800-075

MPN

GM4050-38-02300800-075

Brand

Glentek

Manufacturer

Glentek

Condition

New

Encoder

1000 Count

Connection type

MS (military style)

Glentek GM4050-38 Servo Motor

The GM4050-38 permanent magnet brush servo motor uses traditional ferrite magnets, which are ideal for cost sensitive applications. It also uses higher inertia armatures, which provide improved motor to load inertia matching for medium to high inertia loads. This helps reduce mechanical shaft resonance and leads to higher servo gains for increased stability. In addition, this motor incorporates a skewed armatures, which provides low cogging torque and ultra smooth operation at all speeds. The GM4050-38 outputs up to 41.3 Lb-in (4.67 Nm) of continuous torque, and has a maximum speed of 3500 RPM. Industry standard English, metric, and NEMA mounting configurations are available.
