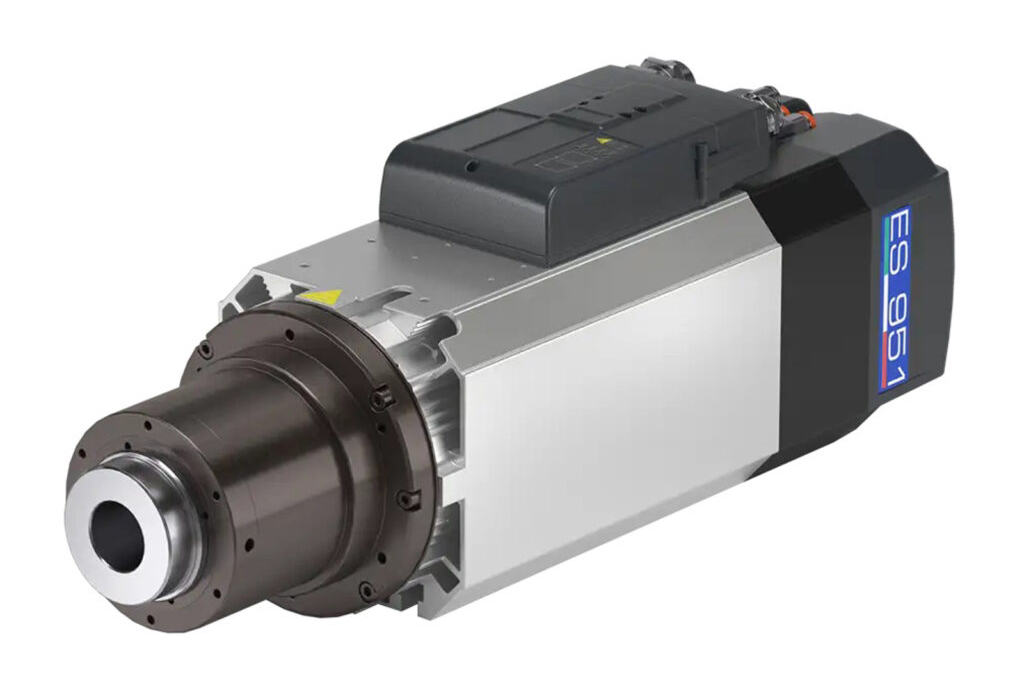

HSD H6161H1228 ES951 Spindle Motor
HSD H6161H1228 spindle motor, ES951 series, ATC, electric fan cooled, HSK 63F tooling, long nose, 24,000 RPM, 800 Hz, 4-pole, 11.4 hp (8.5 kW), 380 V.
Description
HSD H6161H1228 ATC spindle motor.
Technical Specifications
- Model Series: HSD ES951
- Model no.: H6161H1228 (or H6161H1228)
- Tool Change: Automatic with quick-change tool release button
- Tooling Interface: HSK 63F tool holder, long nose shaft
- Bearings: Ceramic (front and rear)
- Cooling: Electric fan-cooled
- Pole Count: 4-pole
- Speed Range:
- Rated: 6,000 RPM @ 200 Hz
- Maximum: 24,000 RPM @ 800 Hz
- Power @ Rated Speed:
- S1: 11.4 hp (8.5 kW)
- S6 (60%): 13.7 hp (10.2 kW)
- Power @ Maximum Speed:
- S1: 5.2 hp (3.9 kW)
- S6 (60%): 6.3 hp (4.7 kW)
- Voltage: 380 V
Additional information
| Manufacturer | HSD |
|---|---|
| Rated Speed (RPM) | 6,000 |
| Country/Region of Manufacture | Italy |
| Model Series | |
| Part Number (MPN) | H6161H1228, A6161H1228 |
| Tool Change | |
| Tool Holder | HSK 63F |
| Spindle Nose | Long Nose |
| Cooling Method | Electric Fan-Cooled |
| Poles | 4 |
| Maximum Speed (RPM) | 24,000 |
| Maximum Frequency (Hz) | 800 |
| Kilowatt (kW) | 8.5 |
| Horsepower (hp) | 11.4 |
| Voltage (V) | 380 |
| Condition | New |
Explore the HSD ES951 Spindle Series
HSD ES951 high-performance, fan-cooled ATC spindles are designed for precision and reliability. Featuring a 4-pole design with 24,000 RPM capacity, this series is engineered to meet demanding industrial standards. Don’t see the exact configuration you need? Browse our online inventory.
