11.4 hp, 380 V, Long Nose, ISO 30

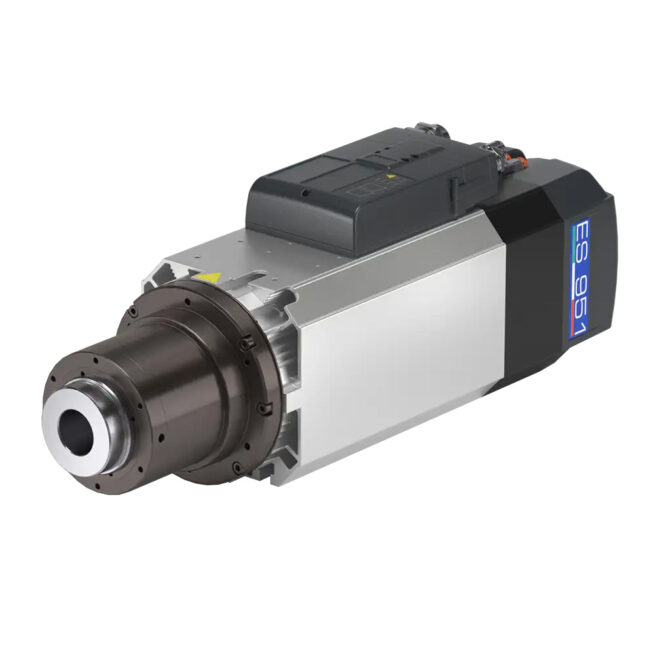

H6161H1478 ES951 HSD Spindle Motor
H6161H1478 HSD spindle motor, ES951 series, ATC, fan-cooled, ISO 30 tooling, long nose, 24,000 RPM max speed, 11.4 hp / 8.5 kW (S1 power), 380 V, 4 pole.
Description
H6161H1478 (or A6161H1478) HSD automatic tool change spindle motor.
H6161H1478 HSD Motor Specifications
- Model: ES951
- Power:
- S1 (Continuous): 11.4 hp / 8.5 kW
- S6 (60% Duty): 13.7 hp / 10.2 kW
- Voltage: 380 V
- Frequency: 200 Hz
- Speed:
- Rated: 6,000 RPM
- Maximum: 24,000 RPM
- Current:
- S1: 17 A
- S6: 20.4 A
- Torque:
- S1: 13.5 Nm
- S6: 16.2 Nm
- Tool Change: Automatic with quick-change tool release button
- Tooling Interface: ISO 30, Long Nose
- Cooling: Electric fan-cooled
- Bearings: Ceramic (front and rear)
- Poles: 4
Additional information
| Country/Region of Manufacture | Italy |
|---|---|
| Model | ES951 |
| Manufacturer Part Number | H6161H1478, A6161H1478 |
| Condition | New |
| Manufacturer | HSD |
HSD ES951 Spindle Motors
The HSD ES951 motor is a high-performance spindle motor primarily used in CNC router machinery. HSD ES951 spindle motors are commonly used for working with wood, MDF, fiberglass, plastic, and composites. HSD spindles are known for high precision, long life, low noise, and low vibration, making them suitable for various tasks like milling, boring, routing, grinding, and polishing.
