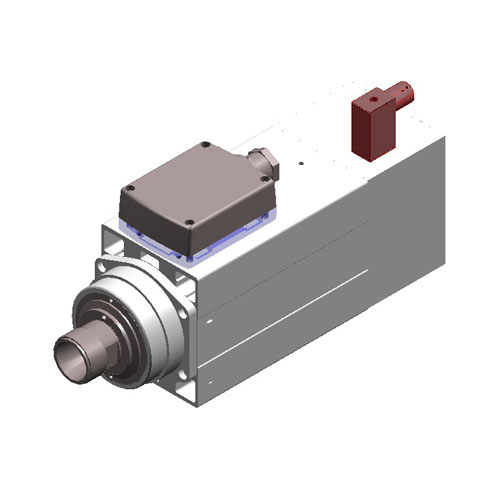

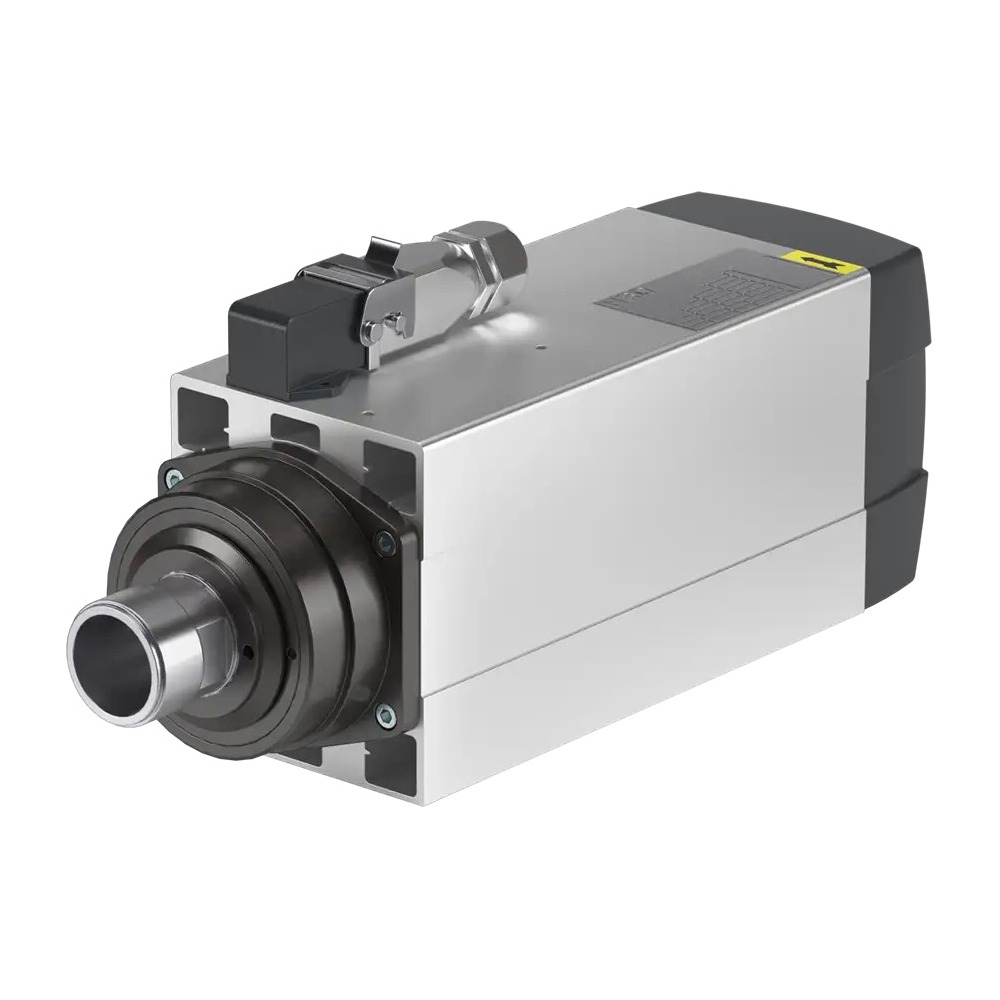

Y616109095 MT1090 HSD Spindle Motor



Y616109095 HSD MT1090-140 electrospindle motor, MTC, fan cooled, ER 32 collet, 9.4 hp / 7 Kw, 220 V / 380 V.

04616 Techniks ER 32 Slotted Nut Wrench

Techniks 04616 ER 32 slotted nut wrench, UM or RU nut type, 253mm x 75mm.

Product Description

Y616109095 HSD MT1090-140 electrospindle motor, MTC (manual tool change), electric fan-cooled, ER 32 collet spindle, 9.4 hp / 7 kW (S1/S6), 14,000 – 18,000 RPM, 220 V / 380 V, 467 – 600 Hz, 4 pole.

Additional Information

Weight 41 lbs
Dimensions 13 × 12 × 29 in



7 kW, 9.4 hp


220 V, 380 V

Tool Change

Manual Tool Change

Collet size

ER 32





Manufacturer Part Number

AY616109095, MT1090-140-EL-ER32-220/380V-DX-14/18000-7KW, SPINDLE-HSD-430, Y616109095


AY616109095, SPINDLE-HSD-430, Y616109095, MT1090

Country/Region of Manufacture


Cooling Method

Electric Fan

Rated Speed

14,000 RPM

Max Speed

18,000 RPM

Maximum Output Frequency

467 Hz, 600 Hz



ER 32 Collets and Collet Nuts

Spindle Motor Lead Time & Availability

Spindle motor lead time and availability varies up to a year. In stock motors can ship within a day or two. Out of stock motor lead times can vary from 4-6 weeks to 6-9 months or longer. We recommend keeping a spare CNC spindle motor on the shelf to avoid costly downtime.

HSD Spindle Motor Distributor

CNC Parts Dept stocks and distributes HSD ATC spindle motors , HSD MTC spindle motors, and HSD spindle spare parts that are commonly used on DMS CNC, Freedom CNC, and  Motionmaster CNC machines. Other routers that utilize HSD motors include Biesse, Shopbot, Laguna Tools, Thermwood, Shop Sabre, Quintax, Techno CNC, AXYZ, Hendrick, Multicam, Multiax and Kimla. In addition, HSD CNC spindle motors are featured on Kuka robots.
