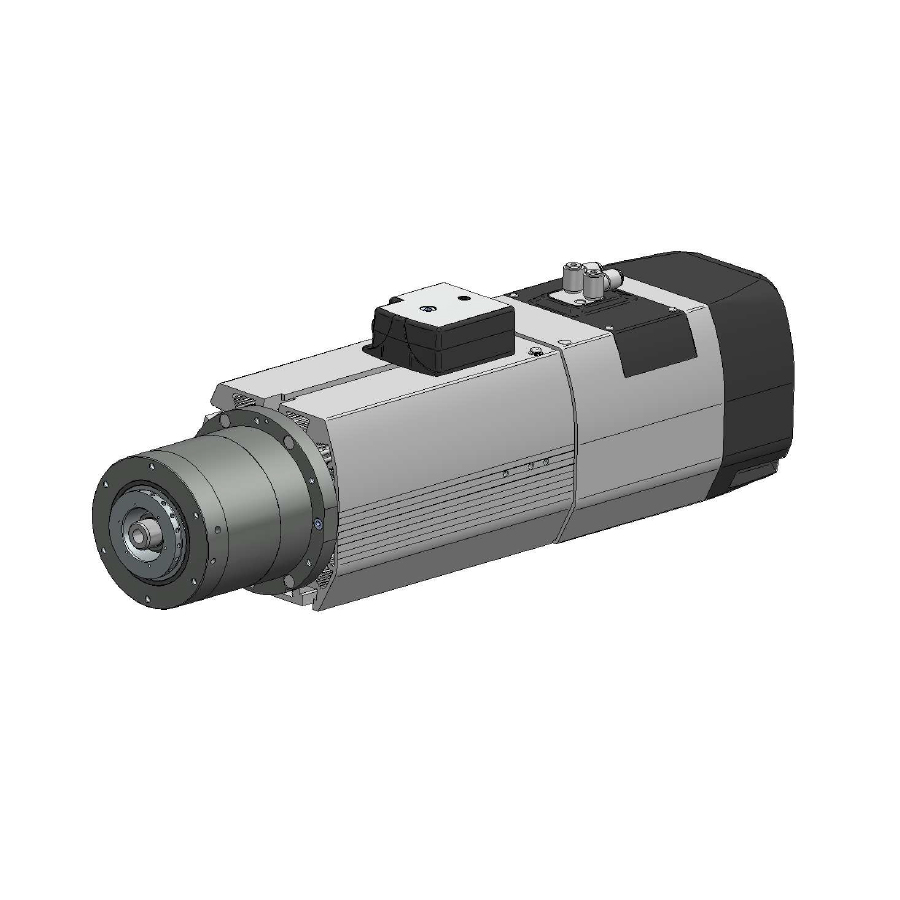

UE-1F 8/12 24 63F LH BT Hiteco Spindle Motor
UE-1F 8/12 24 63F LH BT Hiteco Ultratech spindle motor, HSK 63F, long nose, fan-cooled, 24,000 RPM, 800 Hz, 4-pole, 10 hp (8 kW), 230/380 V.
Description
UE-1F 8/12 24 63F LH BT Hiteco spindle motor.
UE-1F 8/12 24 63F LH BT Hiteco Spindle Motor Specifications
- Model Series: Hiteco Ultratech Series
- Tool Change:Â Automatic Tool Change (ATC)
- Tool Interface: HSK 63F
- Spindle Nose:Â Long nose
- Cooling:Â Electric fan-cooled
- Speed:
- Rated:Â 12,000 RPM
- Maximum:Â 24,000 RPM
- Output Frequency:
- Rated:Â 400 Hz
- Maximum:Â 800 Hz
- Pole Count:Â 4-pole
- Power: 10 hp (8 kW)
- Voltage: 230 V / 380 V (Dual voltage)
Additional information
| Manufacturer | Hiteco |
|---|---|
| Manufacturer Part Number | UE-1F 8/12 24 63F LH BT, UE-1F 8/12 24 63F |
| Model Series | |
| Tool Change | |
| Country/Region of Manufacture | Italy |
| Condition | New |
Hiteco Spindle Motors for CNC Routers and Robots
Hiteco Electrospindles are commonly used on industrial 3-axis and 5-axis CNC routers in wood, plastic, advanced materials, glass, stone and metal industries. CNC machinery utilizing these motors include SCM, CMS, DMS, Laguna Tools, New CNC, Morbidelli, Routech, Casadei-Busellato, Legacy and Camaster. Contact our sales team for more information about Hiteco Powertech, Robotech and Multitech series spindles.
