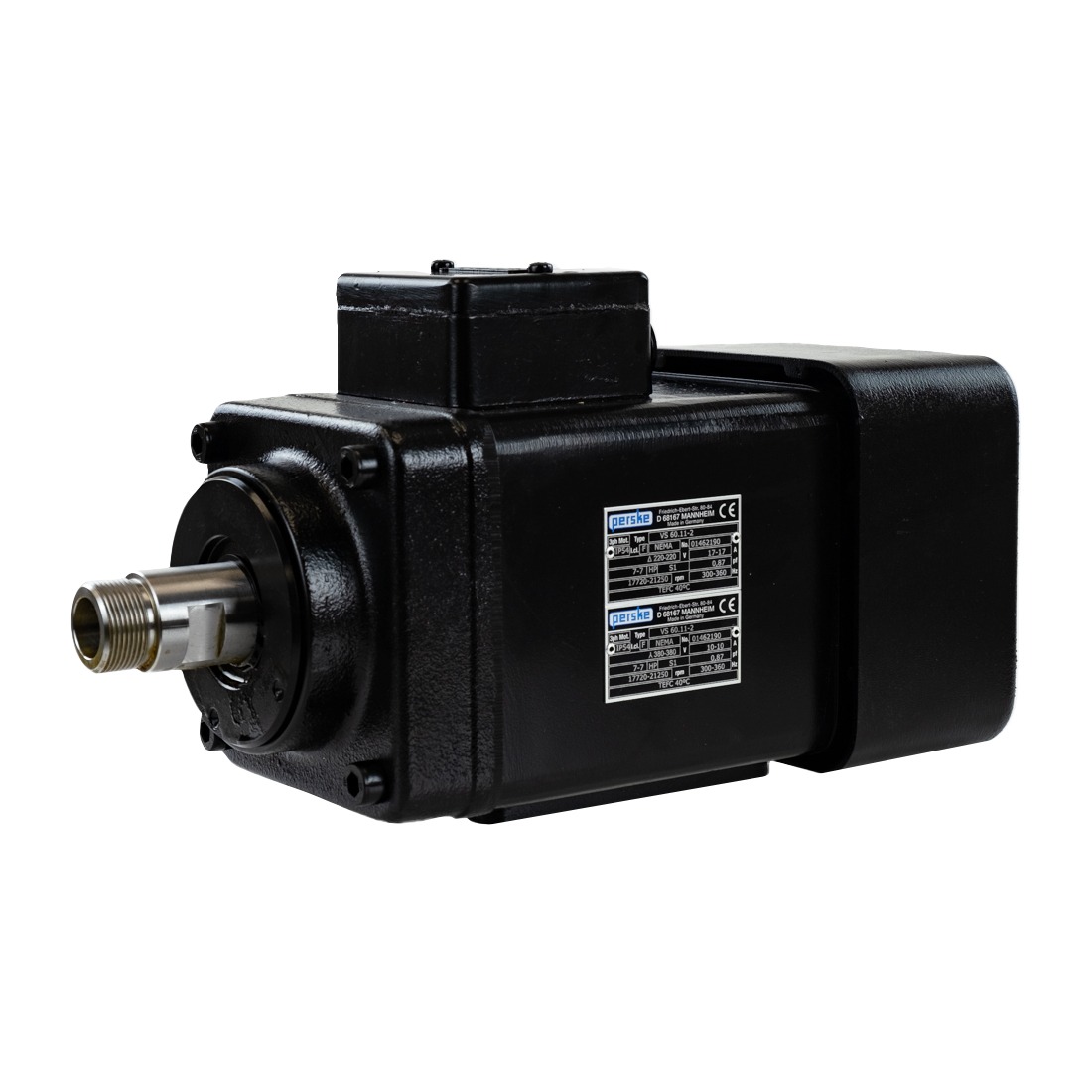

Perske VS60-11-2-0383 Spindle Motor
Perske VS 60.11-2-0383 spindle motor, model V60, type VS60, rectangular motor, MTC, SYOZ 20, 24,000 RPM, 400 Hz, 2-pole, 7 hp (5.25 kW), 250 V.
Description
Perske VS 60-11-2 manual tool change spindle is a rectangular motor / milling motor / high-speed machining motor for cylindrical shaft tools and small axle center distances.
Technical Specifications
- Model / Type:Â Perske V 60 / VS 60
- Tool Change: Manual Tool Change (MTC)

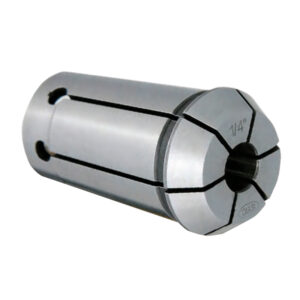

- Tool Interface:Â SYOZ 20 / EOC 12 / OZ 1833 collets
- 1/2 inch max tool capacity
- OZ 1822 cover nut 83634
- Bearing: Single bearing
- T-BOX: Top rear
- Thread: Standard RH (right-hand)
- Protection Class:Â IP54
- Cooling:Â Self-cooled by integrated fan
- Speed:
- Rated: 18,000 RPM
- Maximum 24,000 RPM
- Frequency:
- Rated:Â 300 Hz
- Maximum: 400 Hz
- Pole Count: 2-pole
- Power: 7 hp (5.25 kW)
- Voltage: 250 V, 3 phase
*Collet and cover nut sold separately.
Additional information
| Manufacturer | Perske |
|---|---|
| Country/Region of Manufacture | Germany |
| Rated Frequency (Hz) | 300 |
| Model Series | |
| Maximum Frequency (Hz) | 400 |
| Part Number (MPN) | VS60-11-2-0383 |
| Tool Change | |
| Collet size | SYOZ 20, OZ 1833, EOC 12 |
| Cooling Method | Fan Cooled |
| Speed (RPM) | 24,000 |
| Poles | 2 |
| Horsepower (hp) | 7 |
| Kilowatt (kW) | 5.2 |
| Voltage (V) | 250 |
| Terminal Box Location | Left-Hand Front |
| Thread Direction | RH (Right-Hand) |
| Condition | New |
