Freedom 3 Axis CNC Router 5×10 Moving Gantry [USED]
FOR SALE: 2022 Freedom 3 axis CNC router, 5×10 table, moving gantry, 12 in. stroke, 11 hp Hiteco spindle, 10-tool rack, Fagor 8070. #C812

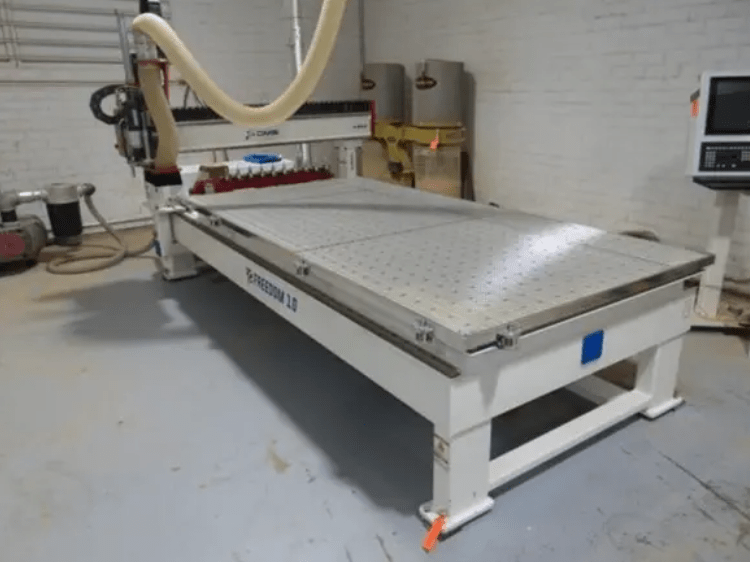

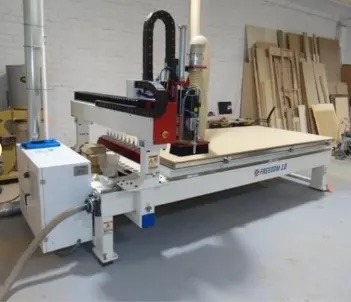

This 2002 Freedom Machine Tool 3 axis CNC router machine for sale features a 5 ft. by 10 ft. router table, moving gantry, 12 inches of stroke, a 11 hp Hiteco ATC spindle motor, and a 10-position tool rack. 15 hp Becker VTLF vacuum pump included. CNC machinery is controlled by a Fagor Automation 8070 CNC system. View more specific details below and contact us today for a quote. (Reference #C812)
Used CNC Router Machine Specifications
- Freedom CNC router
- FMT Model F70-5-10-12-QLV/x
- Manufactured by Diversified Machine Systems
- New in 2022
- 3 axis CNC router machinery

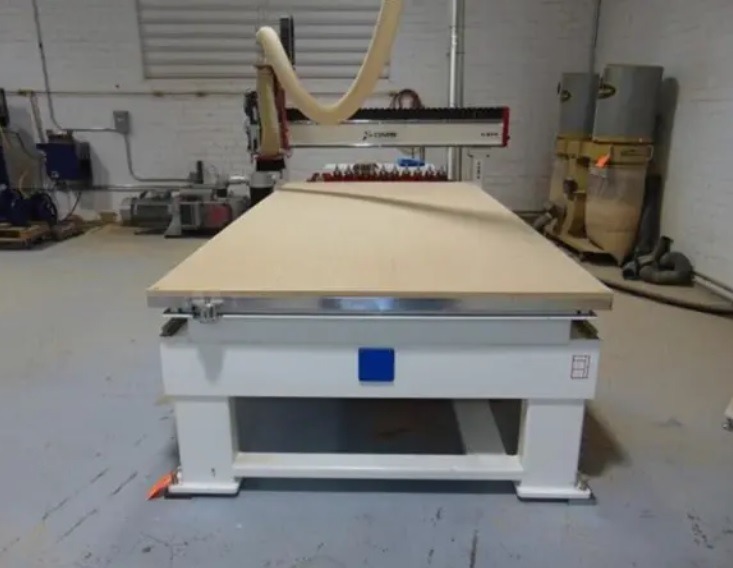

- 5 ft. x 10 ft. CNC router table
- Moving gantry bridge
- 12 inches of Z-axis Stroke

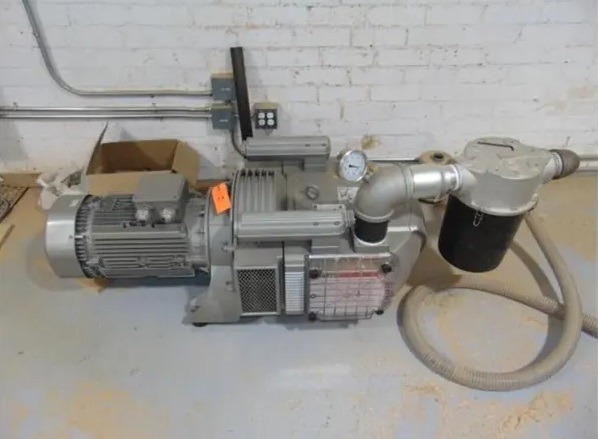

- 15 hp VTLF Becker vacuum pump

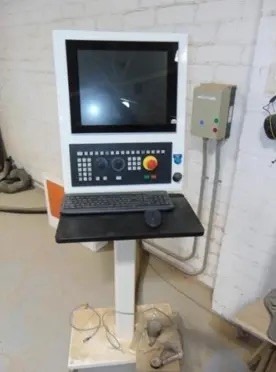

- Fagor 8070 CNC system
- 11 hp Hiteco spindle motor – PowerTech 300, 24,000 Max RPM, ISO 30

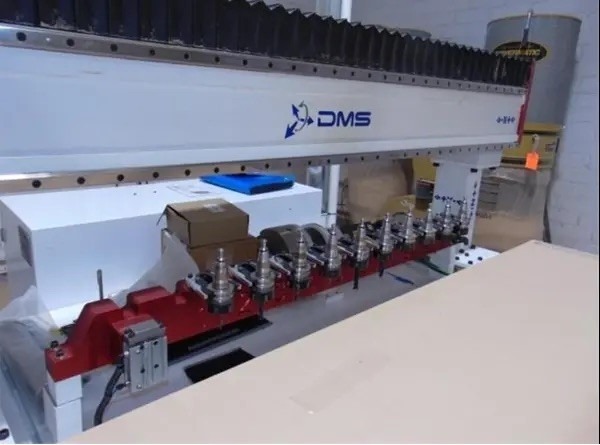

- 10-position automatic tool change rack
- Material thickness sensor
- Automatic tool length sensor
- 10-piece tooling package includes 10 of each: collets, collet nuts and pull studs
- Collet sizes:
- 1 pc. 19 mm
- 2 pcs. 11 mm
- 3 pcs. 3/8”
- 3 pcs. 1/2”
- 1 pc. 3/4”
- Aluminum Vacuum table
- Vacuum plate table with T-slots (14 mm upper groove)
- Integrated gasket nets in vacuum plug holes
- Supports flat material vacuuming or anchoring with 3/8″ silicon inserts
- Includes gasket
- Pneumatic pop-up pins
- Set of four pins located on the left side of the table
- For locating / referencing materials

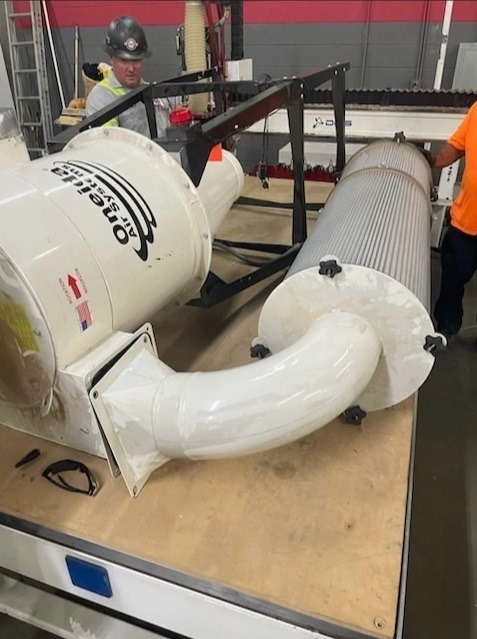

- Dust Collector
- Dust collection duct and boom support package

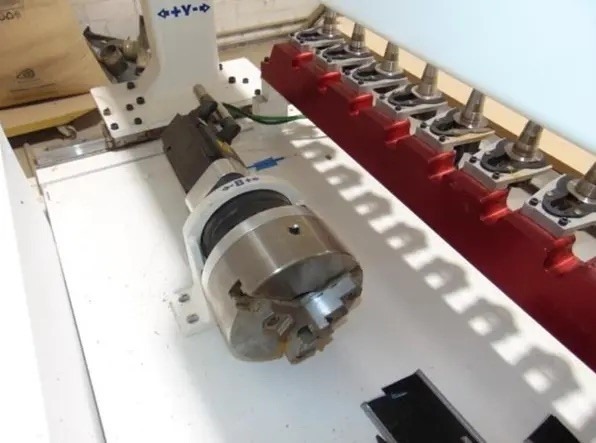

- On-Table rotary positioning axis
- Includes table-mounted chuck and insert
