Cosmec Smart 30 CNC Router
Cosmec Smart 30 is an industrial-grade CNC router designed for high-performance cutting and milling applications, ideal for large-scale projects.
Cosmec Smart 30

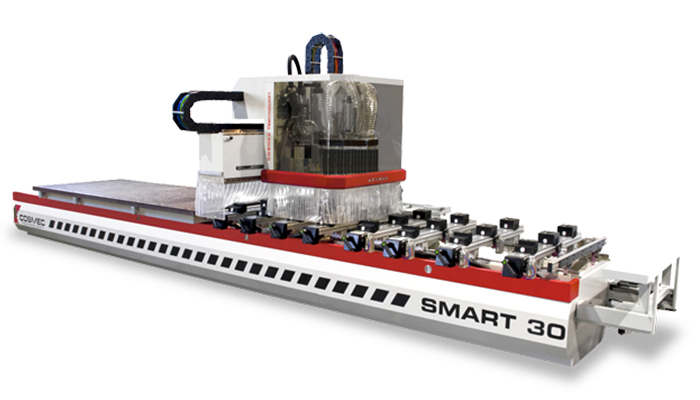

The Cosmec Smart 30 is an industrial-grade CNC router designed for high-performance cutting and milling applications. With its extensive working area, robust construction, and advanced features, this machine is ideal for large-scale projects in various industries.
Cosmec Smart 30 CNC Router Machine Features
Built for relentless industrial operation, the Cosmec Smart 30 blends high-speed structural precision with modular versatility. Each unit is engineered from heavy-gauge stress-relieved steel to minimize vibration and feature-packed with industry-leading components—from high-torque spindle options to intuitive numerical controls—ensuring maximum accuracy and minimum cycle times on every job.
Cosmec Smart 30 – 30 XL Models
The Cosmec Smart 30 series is built on a versatile heavy-duty platform available in two distinct frame sizes to accommodate a wide variety of production requirements. Whether your shop handles standard panel processing or expansive architectural timber components, the Smart lineup delivers high-speed vector performance with uncompromised rigid stability.
Smart 30

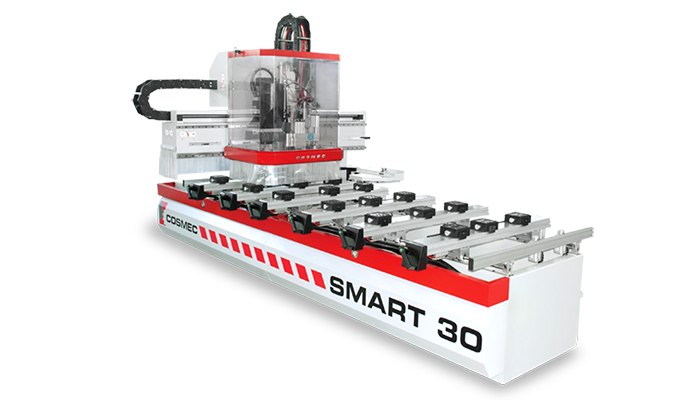

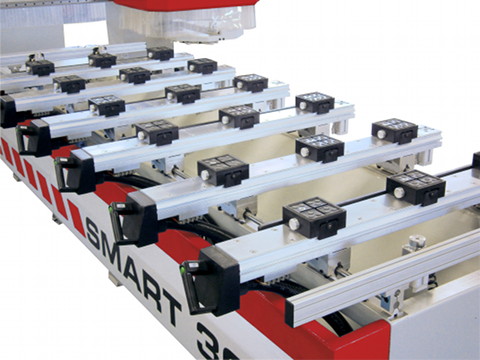

The baseline Smart 30 offers a generous 3200 x 1450 mm working field, making it the ideal workhorse for standard architectural millwork, cabinet manufacturing, and precision panel sizing. Equipped with a high-rigidity pod-and-rail table system, it provides seamless material loading and secure vacuum hold-down for complex, multi-sided machining workflows.
Smart 30 XL
Engineered for ultra-large format applications, the Smart 30 XL expands the standard frame with extended X-axis travel options up to 9100 mm. Designed specifically for long structural timber, continuous production line integration, or multi-zone pendulum processing, the XL model eliminates repositioning steps while maintaining maximum dynamic velocity and tool-change efficiency across the entire bed.
Cosmec Smart 30 Model Technical Specification Comparison
Review the core technical specifications and performance capabilities of the Cosmec Smart 30 series below. Compare working field dimensions, spindle power output, vector speeds, and available axis configurations to select the optimal machinery setup for your shop’s throughput requirements.
| Technical Data | Smart 30 | Smart 30 XL | Smart 30 (5-Axis) | Smart 30 XL (5-Axis) |
| Working Field (X × Y) | 3100 to 9100 × 1350–1450 mm | 3100 to 6100 × 1600 mm | 3100 to 9100 × 1350–1450 mm | 3100 to 6100 × 1600 mm |
| Z-Axis Clearance | 120 mm (Rail) / 150 mm (Flat) | 120 mm | 200 mm (Rail) / 250 mm (Flat) | 200 mm |
| Vectorial Speed | Up to 85 m/min | Up to 85 m/min | Up to 85 m/min | Up to 85 m/min |
| Linear Speed | Up to 60 m/min | Up to 60 m/min | Up to 60 m/min | Up to 60 m/min |
| Electrospindle Power | 10 / 12 kW | 10 / 12 kW | 11 / 13 kW | 11 / 13 kW |
| Tool Holder Interface | ISO 30 | ISO 30 | HSK F63 | HSK F63 |
| Spindle Speed | 24,000 RPM | 24,000 RPM | 24,000 RPM | 24,000 RPM |

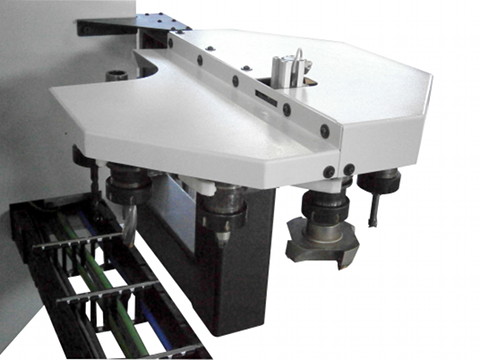

| Tool Changer Capacity | Up to 20 Positions (10 Rotary / 10 Rack) | 10 / 16 Positions (Rotary) | Up to 26 Positions (16 Rotary / 10 Rack) | 10 / 16 Positions (Rotary) |
| Table Type | Pod and Rail System | Pod and Rail System | Pod and Rail System | Pod and Rail System |
| Control System | OSAI Numerical Control | OSAI Numerical Control | OSAI Numerical Control | OSAI Numerical Control |
Cosmec Smart 30 CNC Router Applications
Built for industrial adaptability, the Cosmec Smart 30 series excels across a broad spectrum of heavy-duty manufacturing and precision fabrication industries. Its high-torque electrospindle options, advanced OSAI numerical control, and flexible worktable configuration allow seamless processing of diverse materials, including solid wood, non-ferrous metals, dense composites, and engineering plastics.
Large-Scale Woodworking
Efficiently cut, mill, and drill large wood components for furniture, cabinets, and other applications.
Composite Processing
Machine composite materials like acrylic, MDF, and plywood for various industrial uses.
Aluminum Machining
The Smart 30 can handle aluminum milling and cutting for signage, automotive parts, and other applications.
Plastic Fabrication
Precisely cut and machine plastic components for a variety of industries.
Optional Features

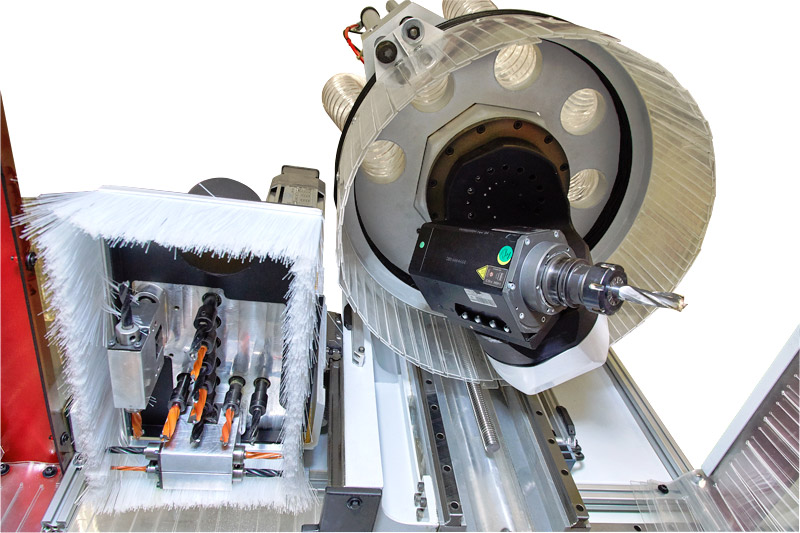

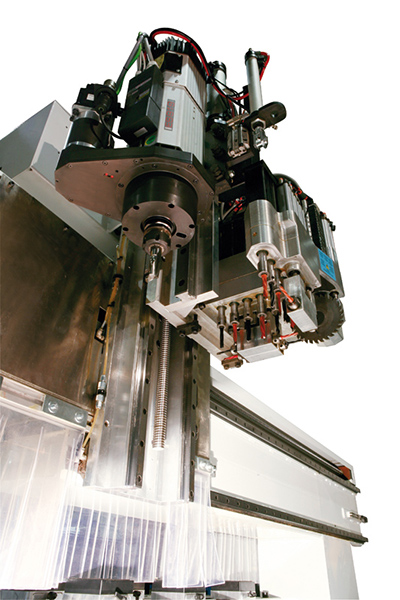

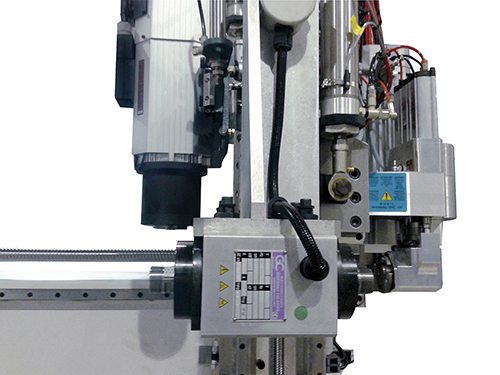

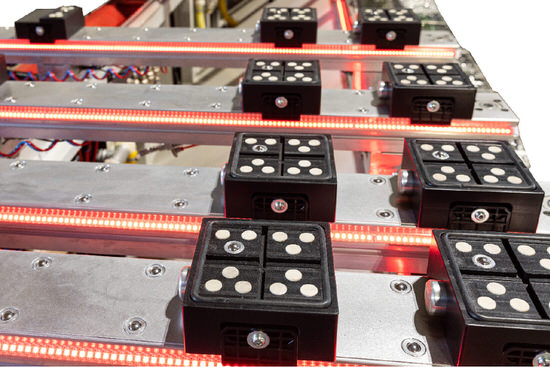

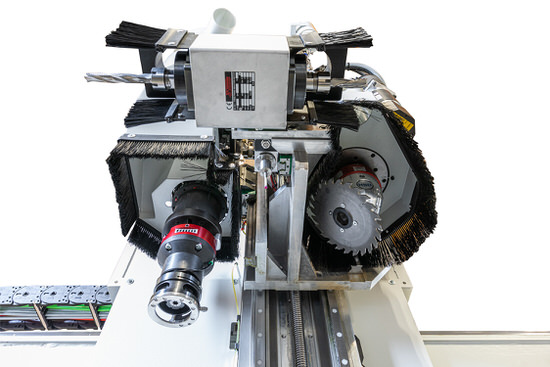

Expand the versatility and automation of your Smart 30 machining center with modular factory options designed by Cosmec Technology. From multi-axis rotary head units and floating cutters to advanced LED bar positioning and handheld remote controls, these additions allow you to tailor the machine precisely to your unique production environment.
Frequently Asked Questions
Optimize Your Production with Custom Cosmec CNC Solutions
The Cosmec Smart 30 CNC Router is a powerful and versatile machine that caters to large-scale production needs. Its extensive working area, high-speed performance, and robust features make it a valuable asset. Contact us today for more information about Cosmec CNC routers.
