Motionmaster 5-Axis CNC Router | 4×4 Moving Table | 36” Z-Stroke
Motionmaster 5 axis CNC router, 4×4 moving table, 36 in stroke, 7hp Perske dual-ended MTC spindle, Fagor 8055-B Power CNC. #E844

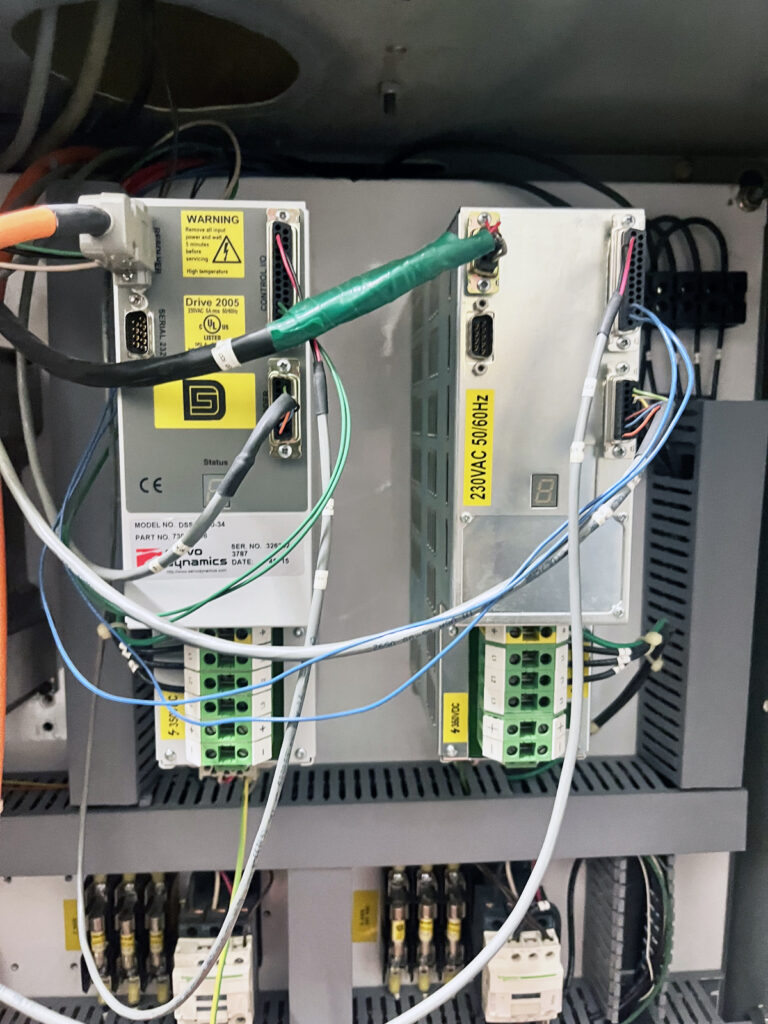

This Motionmaster 5-Axis CNC Router is an industrial-grade solution for complex 3D trimming and large-scale pattern making. This specific unit features the highly-regarded Fagor 8055-B CNC system, upgraded with high-speed digital Sercos drives for superior axis synchronization. With 36-inch Z-axis stroke and a 7HP dual-ended Perske spindle, this machine is uniquely suited for deep-cavity aerospace molds and heavy-duty thermoform trimming where vertical clearance is non-negotiable.
Work Envelope
- Table Size: 48″ x 48″ aluminum
- X-Axis Travel: 48 inches (1,219 mm)
- Y-Axis Travel: 48 inches (1,219 mm)
- Z-Axis Travel: 36 inches (914 mm)
Spindle & Tooling
- Spindle Type: 7 hp Perske Dual-Ended Manual Tool Change (MTC)

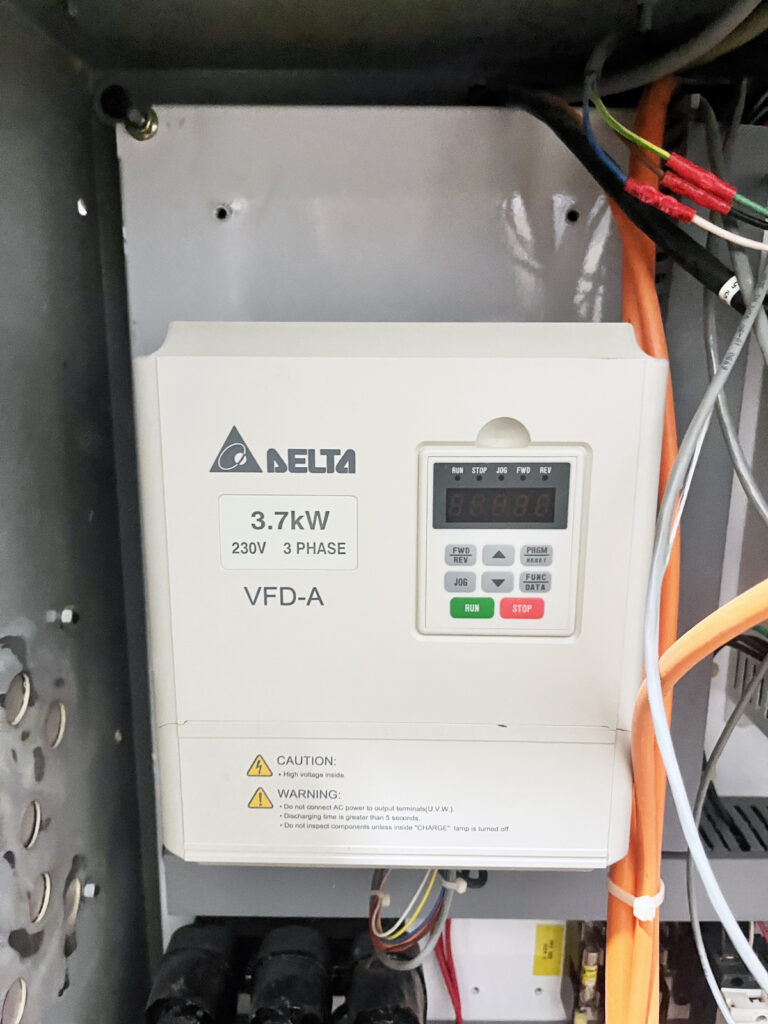

- Inverter: Delta 3.7kW (5HP) VFD-A high-performance vector control.
- Configuration: The dual-ended shaft allows operators to mount two different tools simultaneously, effectively doubling manual productivity.
Motion & Control

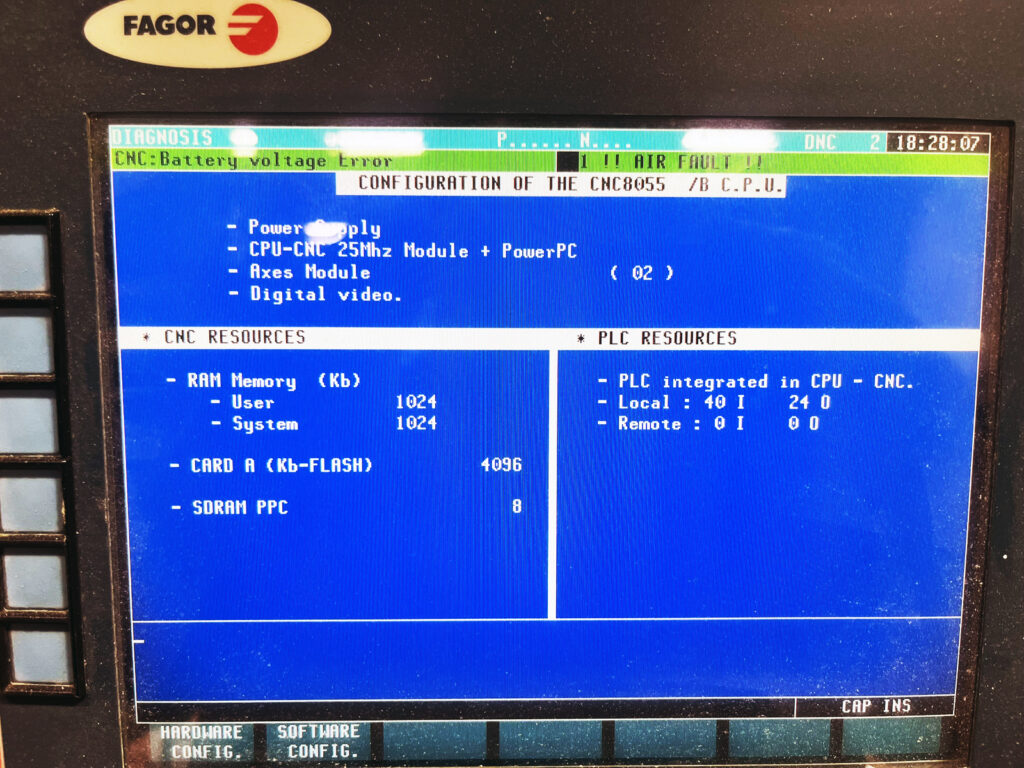

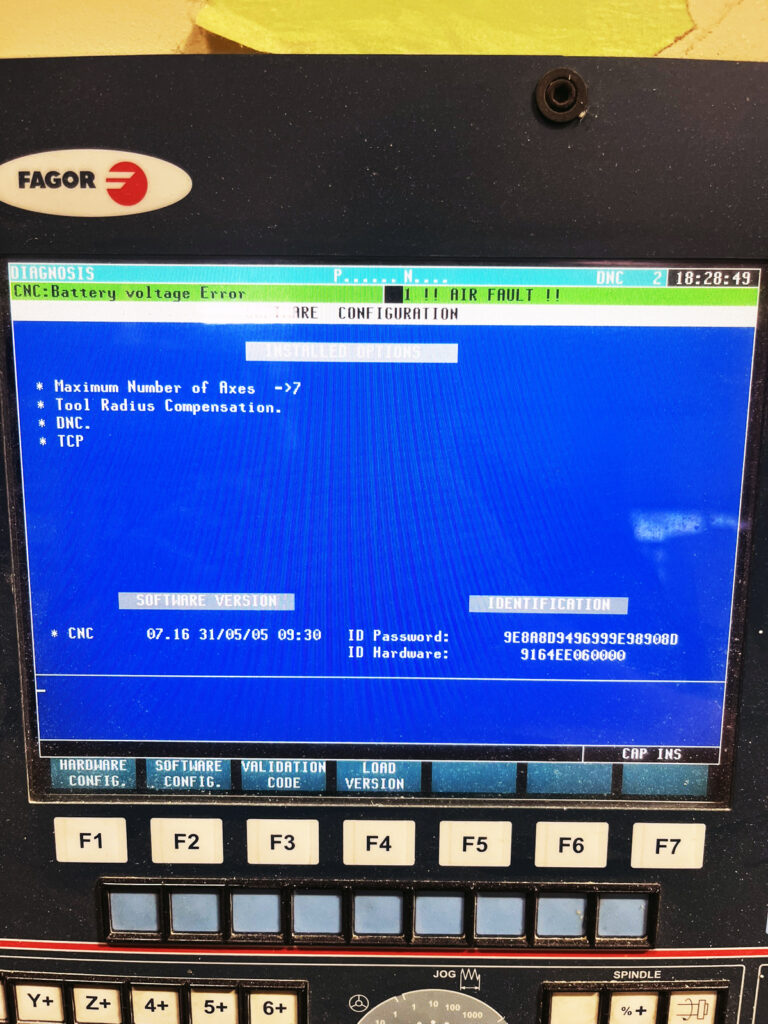

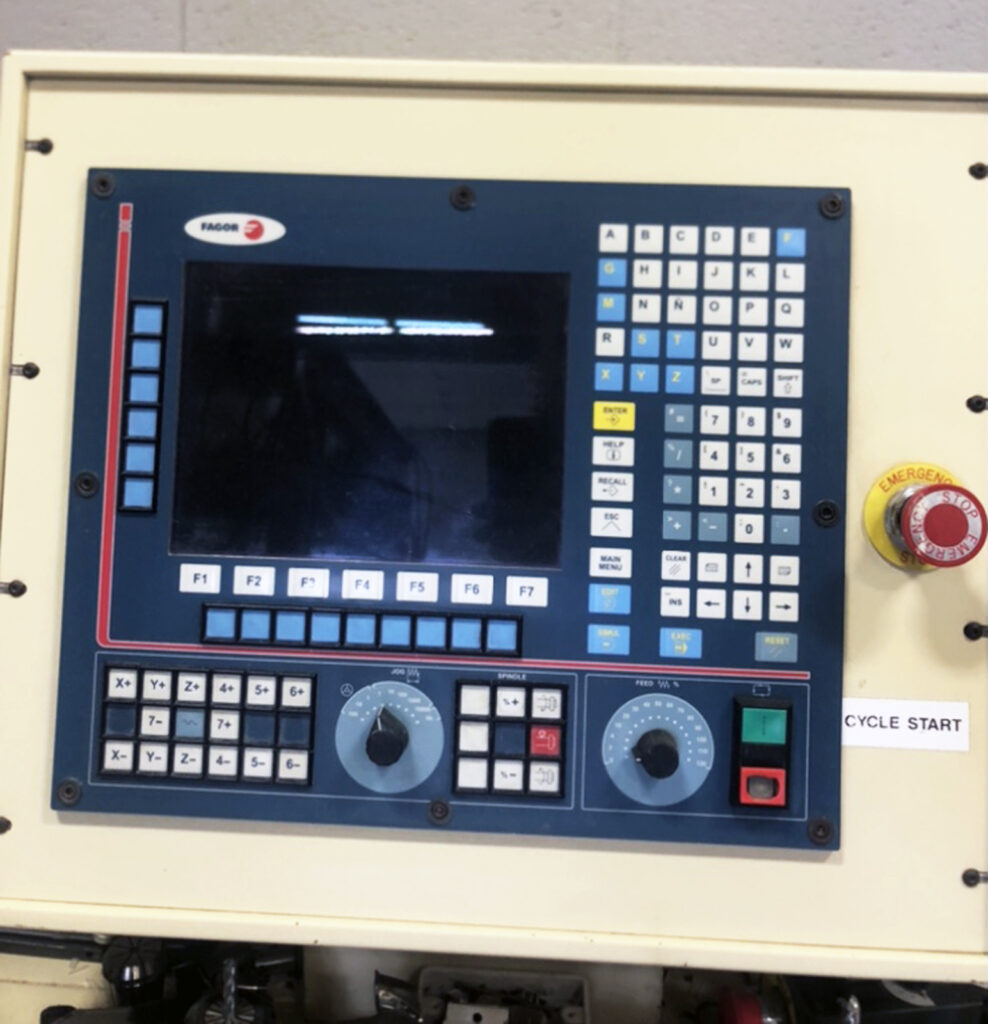

- Controller: Fagor 8055-B CNC
- TCP (Tool Center Programming)
- Tool Radius Compensation
- Axes: Configured for 5-axis motion
Integrated Systems

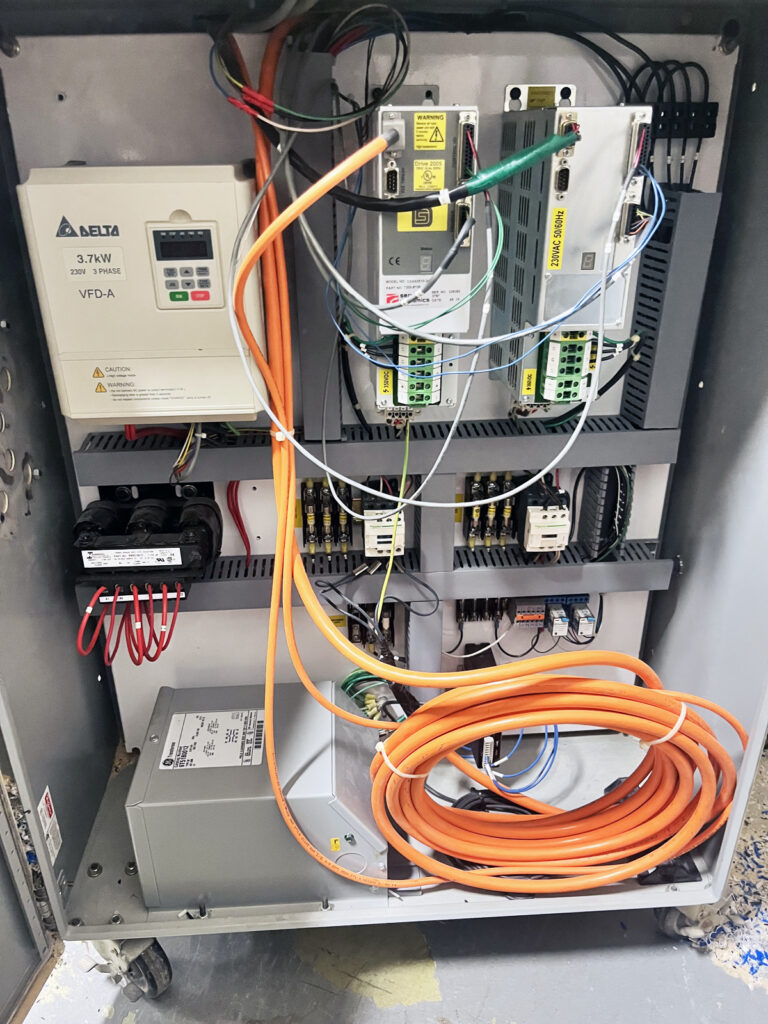

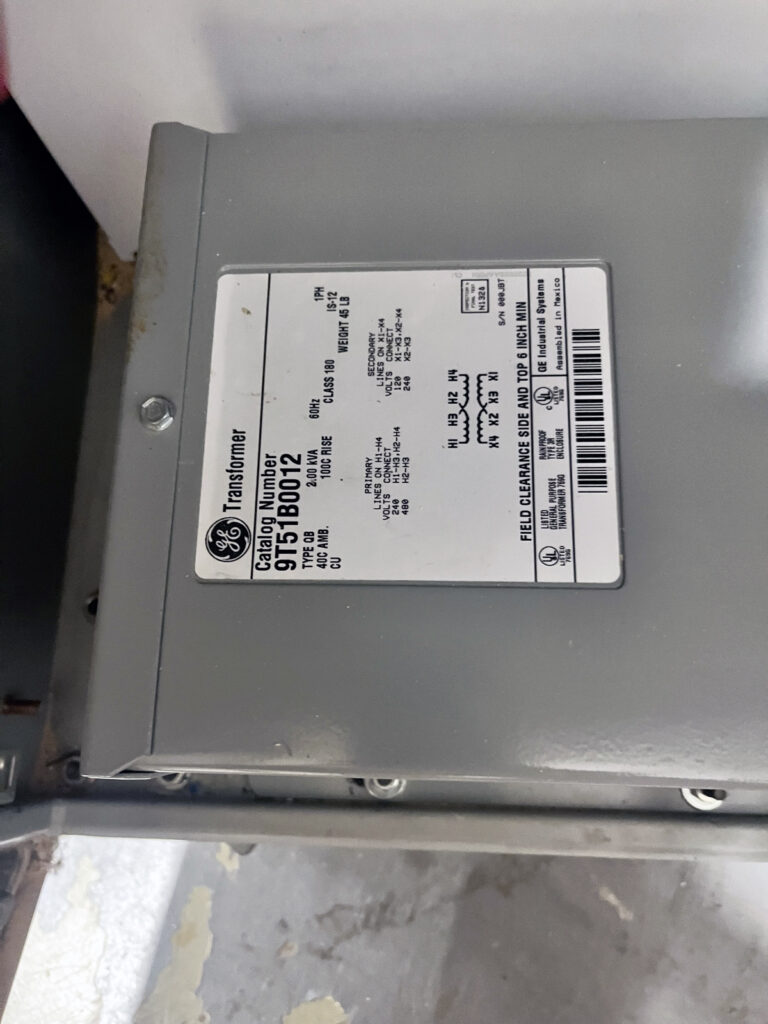

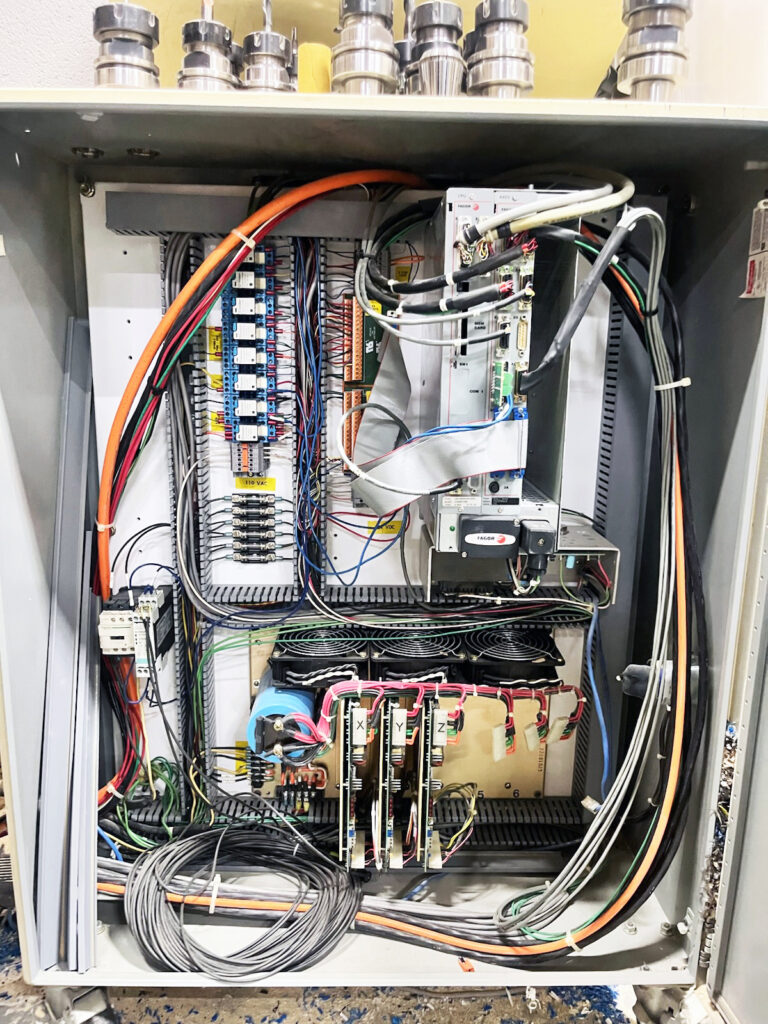

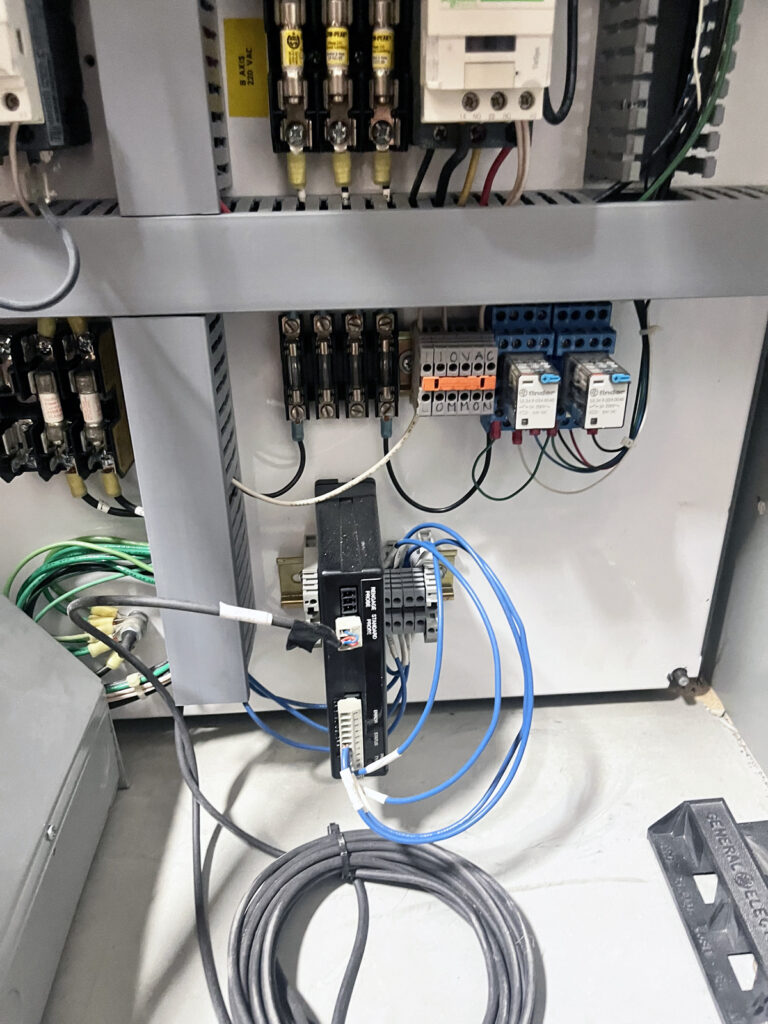

- Electrical Architecture: Cleanly organized cabinet with integrated GE Step-Down Transformer.
- Drive Cooling: Cabinet-mounted cooling for drive thermal stability.

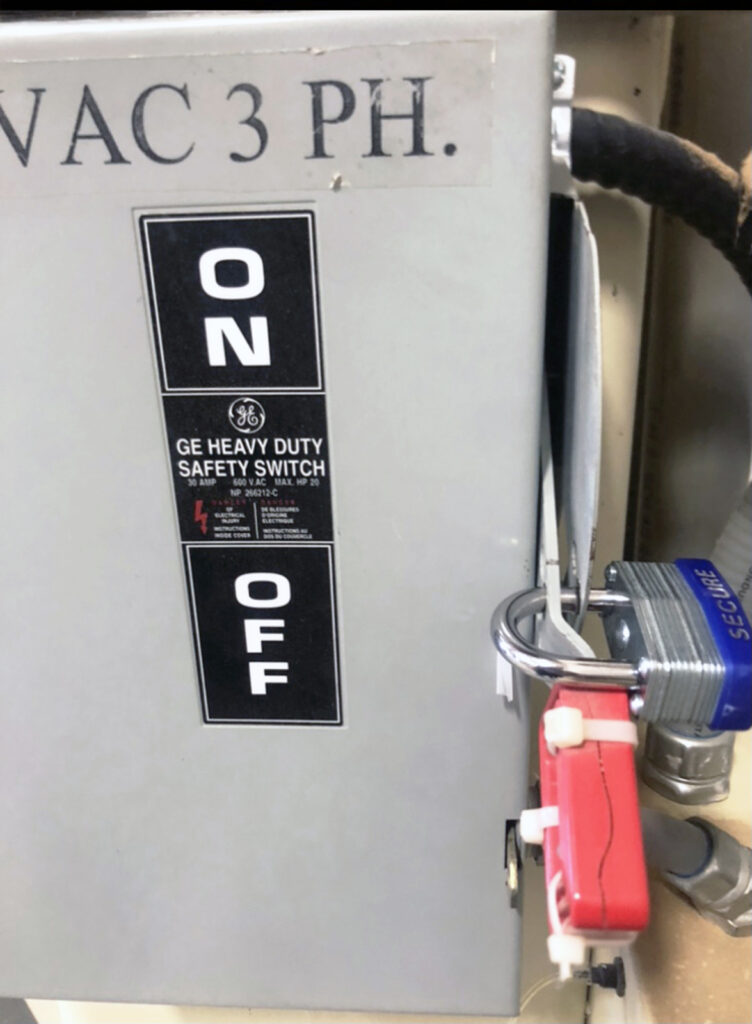

- Safety: Integrated GE Heavy Duty Safety Switch (30 Amp / 600 VAC).
Logistical Specs
- Power: 220V – 240V | 3-Phase
- Air: 90 PSI Dry / Filtered Air
Industry Applications
- Aerospace Trimming: Precision 5-axis trimming of composites.
- Mold & Pattern Making: Deep-cavity foam and wood machining.
- Thermoforming: High-volume trimming of vacuum-formed plastics.
CNC Router Retrofit & Support Services
Buying used doesn’t mean buying alone. CNC Parts Dept., Inc. offers comprehensive support and modernization for this Motionmaster:
- Expert Retrofits: We specialize in bringing legacy Motionmaster frames up to modern standards with our custom CNC Router Retrofit Services.
- Field Service & Repair: Our technicians are experts in Fagor diagnostics, Sercos drive tuning, and mechanical spindle replacement.
- Turnkey Commissioning: We provide nationwide rigging coordination, installation, and laser calibration to ensure your machine is “Ready-to-Work”.
