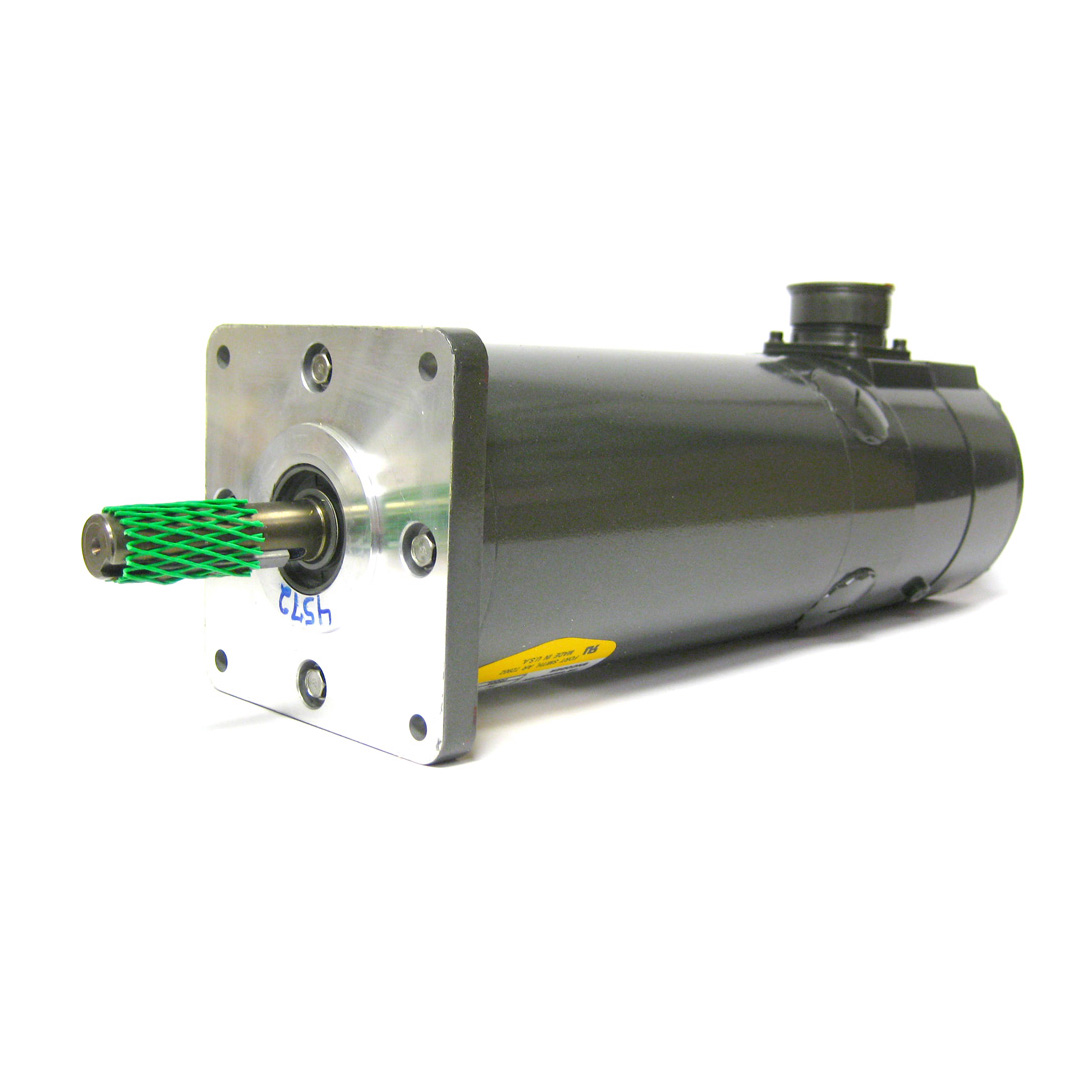

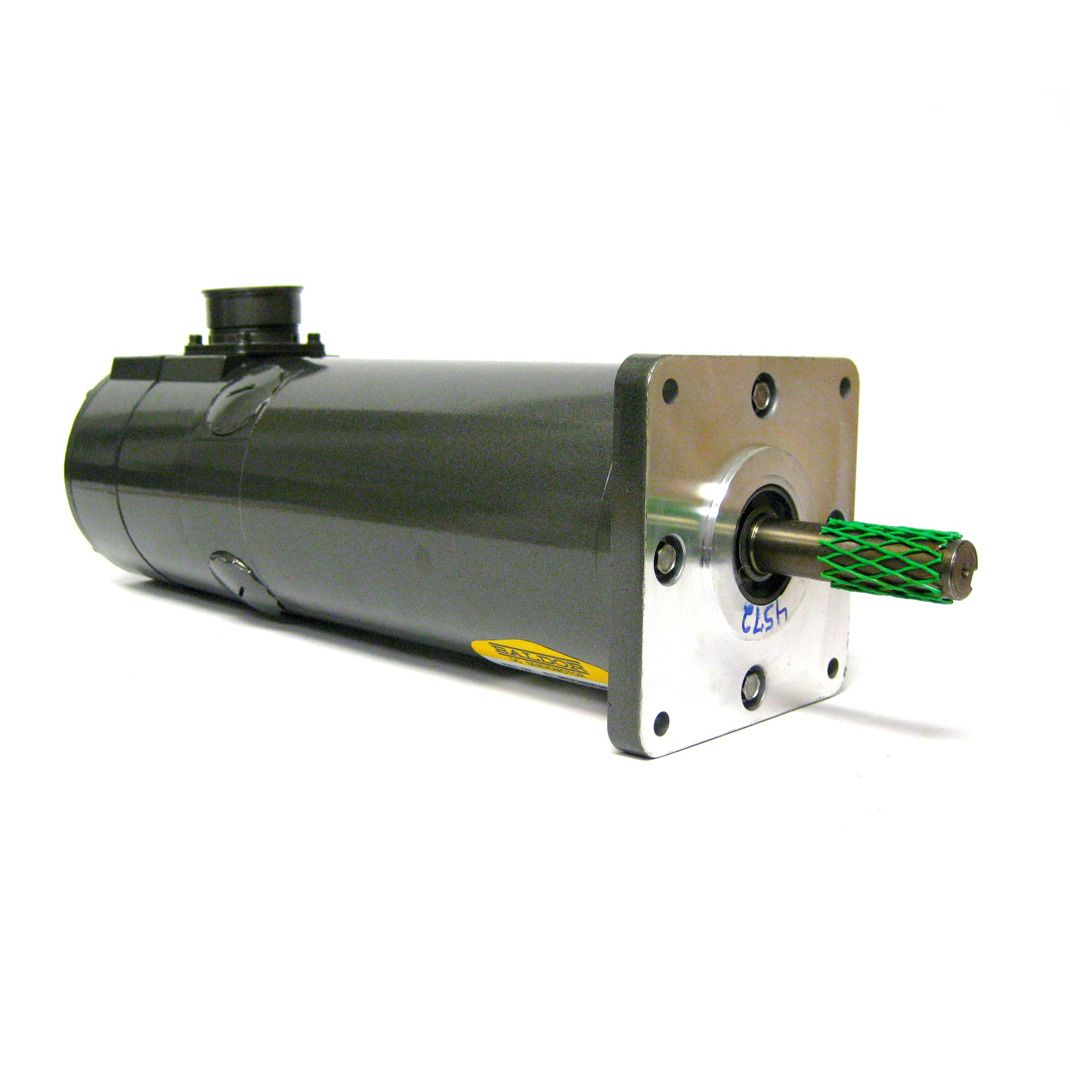

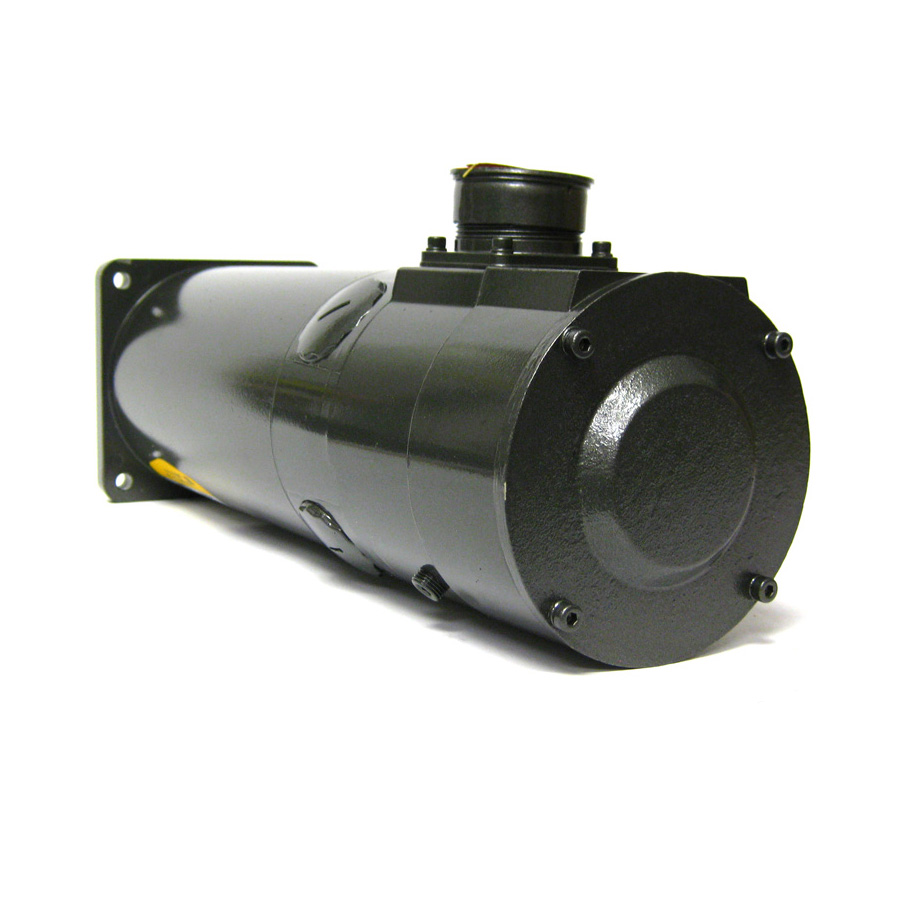

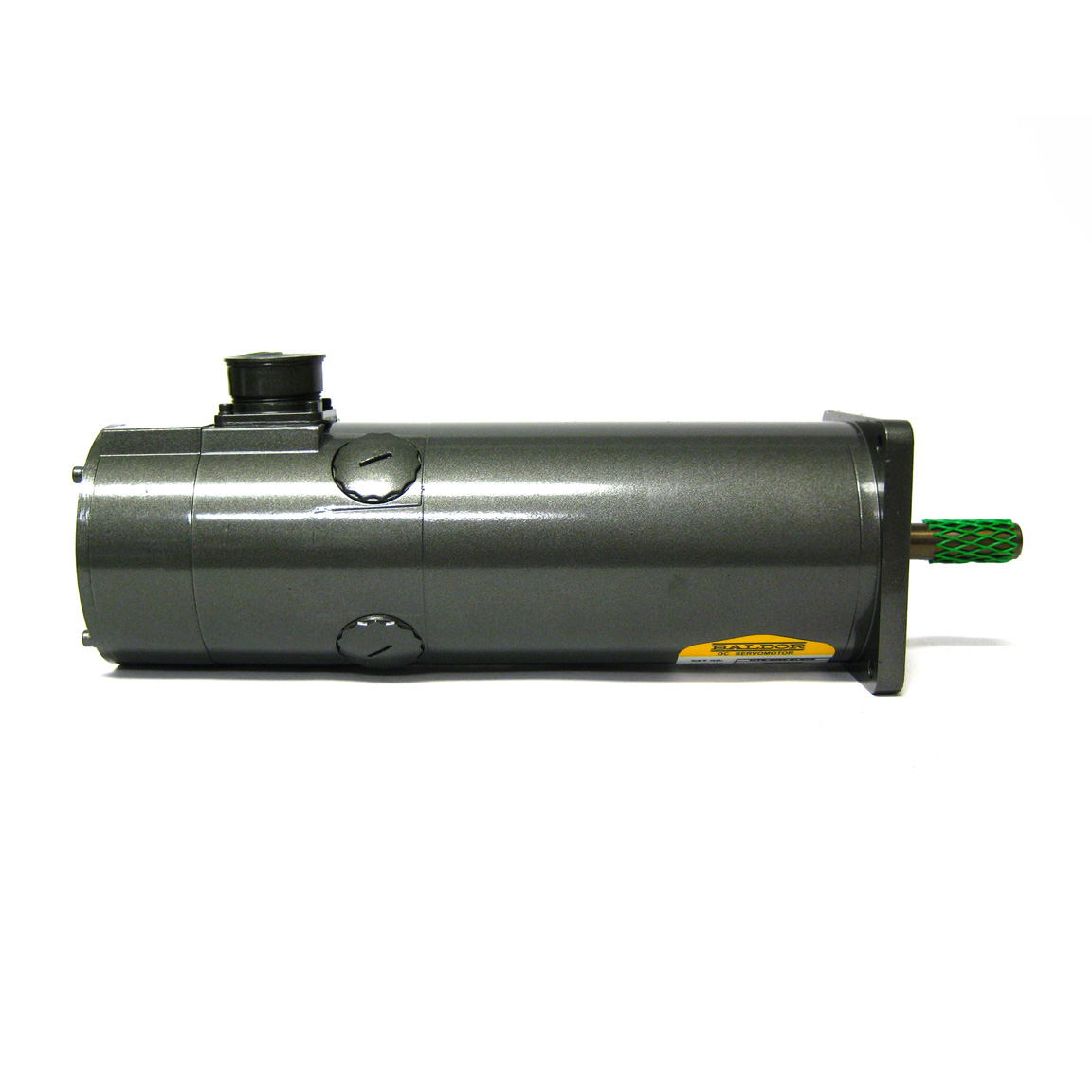

MTE-4090-BLBCE Baldor Servo Motor
MTE-4090-BLBCE Baldor / ABB brushed DC servo motor with MS (military style) connector, 1,000 line encoder feedback, A1-B square flange, 2,500 RPM max speed.
Description
MTE-4090-BLBCE Baldor-Reliance / ABB brushed DC servo motor.
MTE-4090-BLBCE Baldor Motor Specifications:
- Continuous Stall: 40 Lb-in / 13.15 A
- Peak Current: 54.7 A
- Back EMF Constant: 40 V/Krpm
- Tachometer Option: 7 VDC tachometer
- Encoder option: 1,000 count encoder
- Flange Type: A1-B square flange
- Lead Termination: MS (military-style) connector
- Maximum Speed: 2,500 RPM
- Voltage: 150 V
Note: MTE-4090-BLBCE motor has been discontinued by manufacturer. This model can be replaced by Glentek GM4050-38-02402510-279A servo motor. Ask our sales team today for more information about cross referencing servo motors.
Additional information
| Condition | New |
|---|---|
| Manufacturer Part Number | MTE-4090-BLBCE |
| Manufacturer | Baldor |
