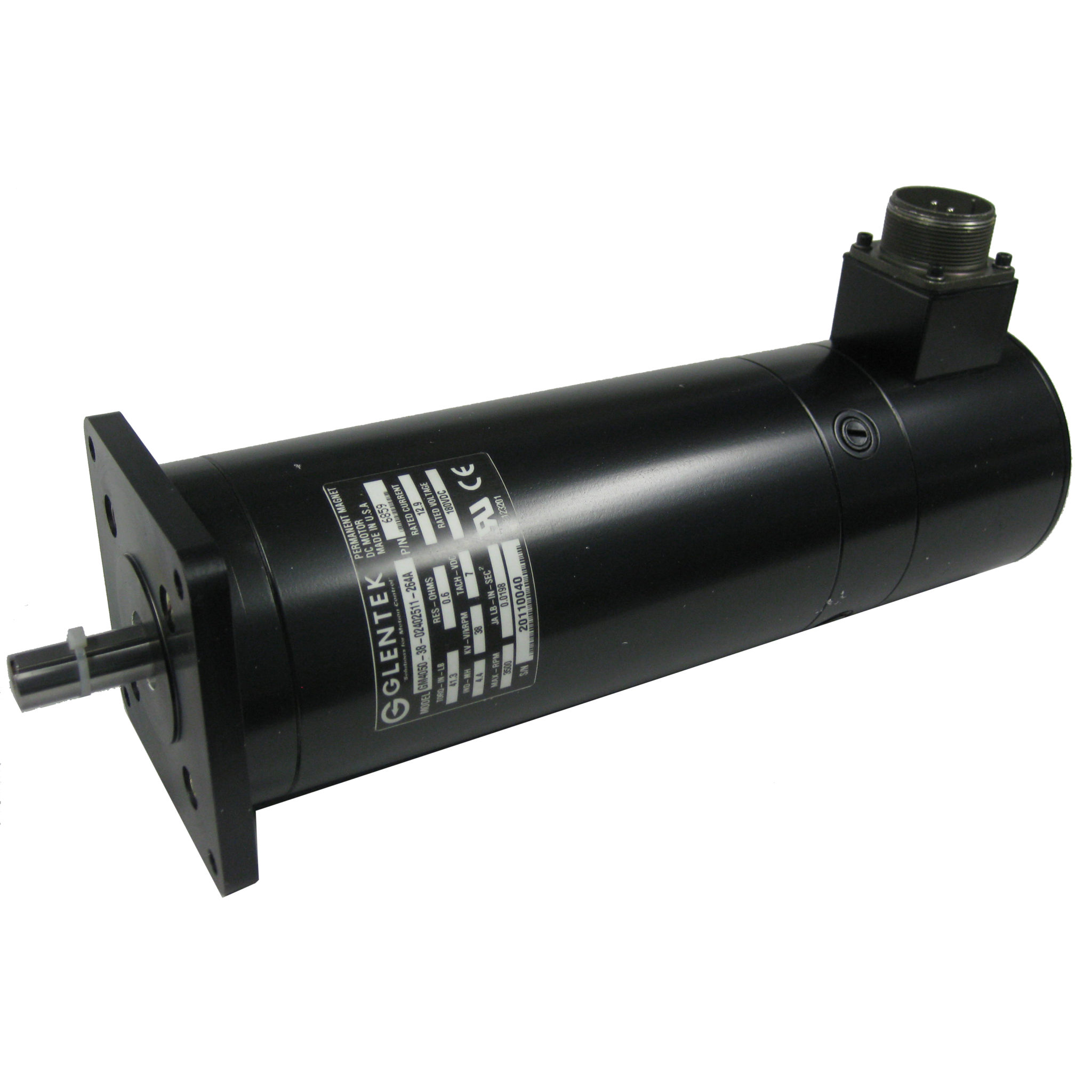

Glentek GM4050-38 DC Servo Motor, A1-B Flange

$1,265.00

Glentek GM4050-38 DC brush servo motor with military style (MS) connector adapter, 1000 count encoder, A1-B (square) flange. Model #GM4050-38-02402510-279A. Glentek GM 4000 Series Round flange GM4050-38 motors are available too.

SKU: GM4050-38-02402510-279A Category: Tags: , Brand:

Description

Glentek GM4050-38 DC brush servo motor with male military style (MS) connector adapter, 1000 count encoder and square A1-B flange. CSA and UL recognized. 2.29 HP / 1.708 KW. Glentek GM4000 Series motor, CE Marked. Model #GM4050-38-02402510-279A.

Glentek GM4050-38-020402510-279A Specificatons

  • Frame Size: 4.0″ Motor
  • Stack Length: 5.0″ Stack
  • Back EMF Constant: 38V/Krpm
  • Brake Option: No Brake Installed
  • Tachometer Option: 7 VDC Tachometer
  • Encoder Option: 1000 PPR
  • Brushless Revolver Option: No Resolver Installed
  • Flange Type: M1 Square Flange
  • Lead Termination: 16-Pin, Male MS connector
  • Sealing Option: No Shaft Seal
  • Maximum Speed: 3,500 RPM

Glentek GM4050-38 Cross Reference

The GM4050-38 square flange servo motor model series can replace the motors listed below:

Additional information

Weight25 lbs
Dimensions20 × 10 × 10 in
Condition

New

Encoder

1000 Count

Connection type

MS (military style)

Flange type

A1-B, 3.5" between holes

Brand

Glentek

MPN

GM4050-38-02402510-279A

Manufacturer

Glentek

Power

1.7 kW, 2.29 hp

Speed

3500 RPM

Model

GM4050-38-02402510-279A

Glentek GM4050-38 Servo Motor

The GM4050-38 permanent magnet brush servo motor uses traditional ferrite magnets, which are ideal for cost sensitive applications. It also uses higher inertia armatures, which provide improved motor to load inertia matching for medium to high inertia loads. This helps reduce mechanical shaft resonance and leads to higher servo gains for increased stability. In addition, this motor incorporates a skewed armatures, which provides low cogging torque and ultra smooth operation at all speeds. The GM4050-38 outputs up to 41.3 Lb-in (4.67 Nm) of continuous torque, and has a maximum speed of 3500 RPM. Industry standard English, metric, and NEMA mounting configurations are available.

You may also like…

Glentek GM Series DC Brush Servo Motors

GM series DC brush servo motors utilize traditional ferrite magnets, which are ideal for cost sensitive applications. In addition, the higher inertia armatures provide improved motor to load inertia matching for medium to high inertia loads. This helps to reduce the mechanical shaft resonance, which allows higher servo gains with increased stability. All frame sizes incorporate skewed armatures, which provide ultra smooth operation (i.e. low cogging torque) at all speeds.

  • Continuous Torque Range: 1.9 Lb-in (0.21 Nm) to 113 Lb-in (12.8 Nm)
  • Peak Torque Range: 12.0 Lb-in (1.4 Nm) to 338 Lb-in (38.1 Nm)

Glentek GM/GMR Series Servo Motors

Glentek’s DC brush servo motor line features high performance, skewed armatures, and TENV construction. Industry standard mounting, feedback, sealing, and lead termination options available, along with optional fail safe brakes.
