GMBM80400-29-0001000 Glentek Servo Motor
$2,751.00

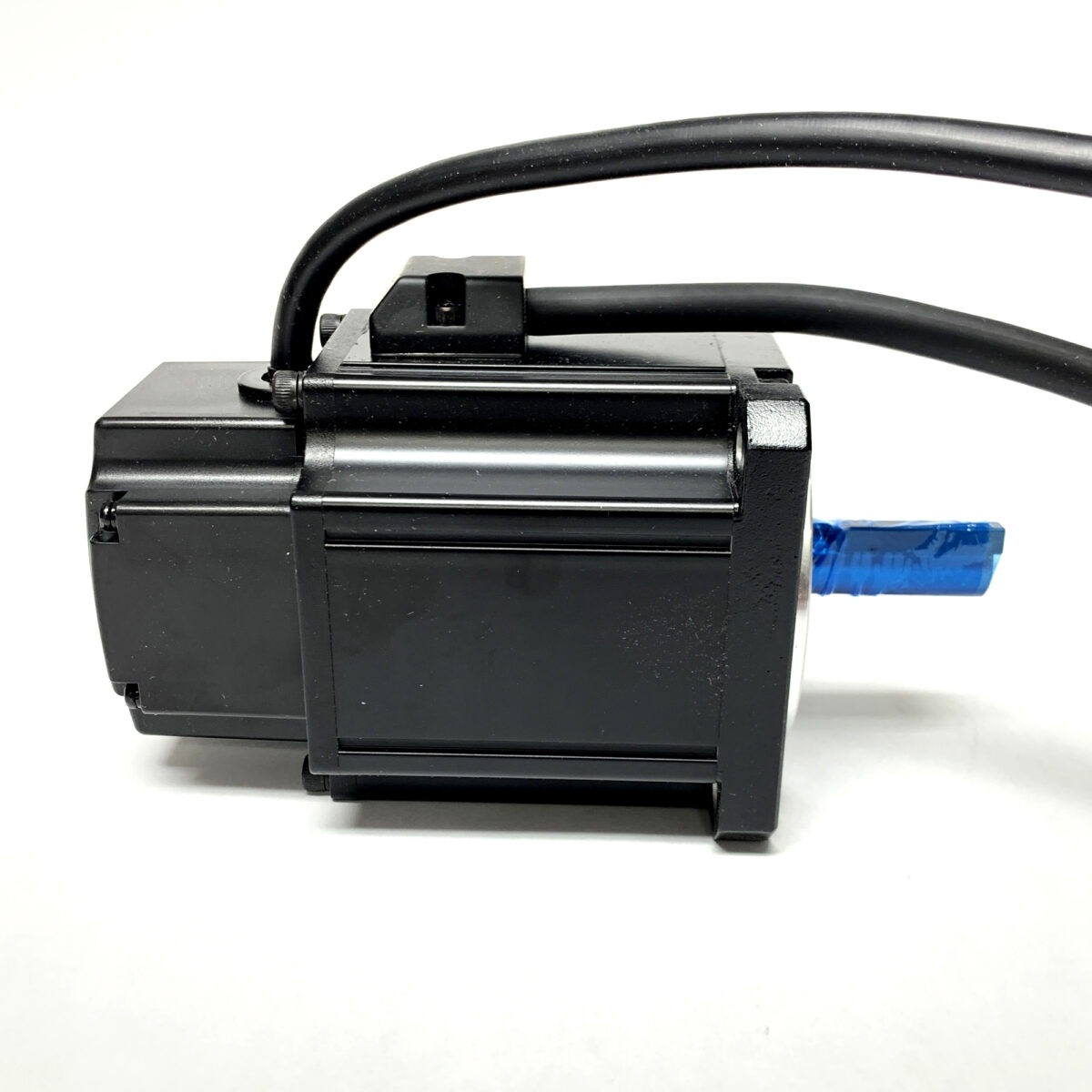

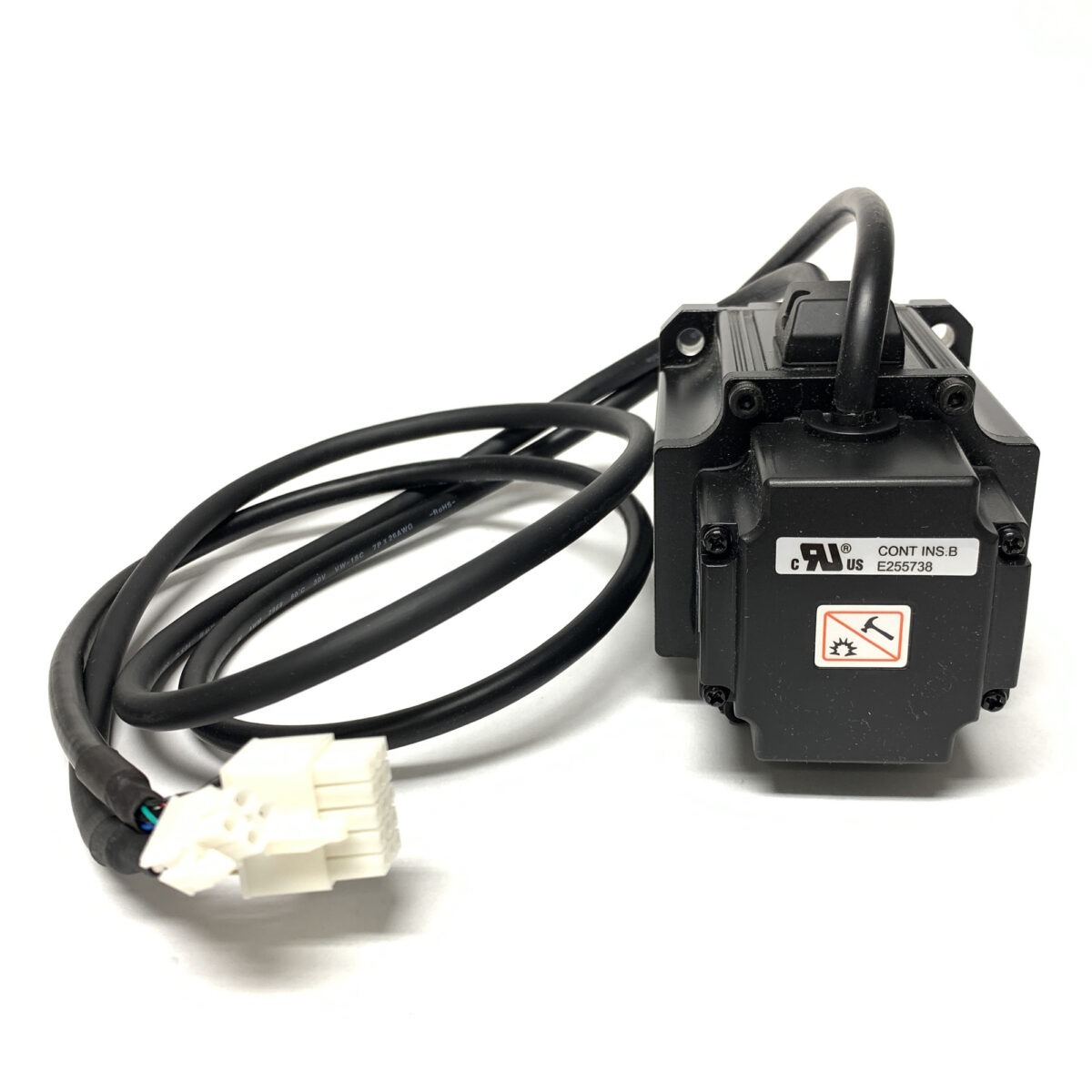

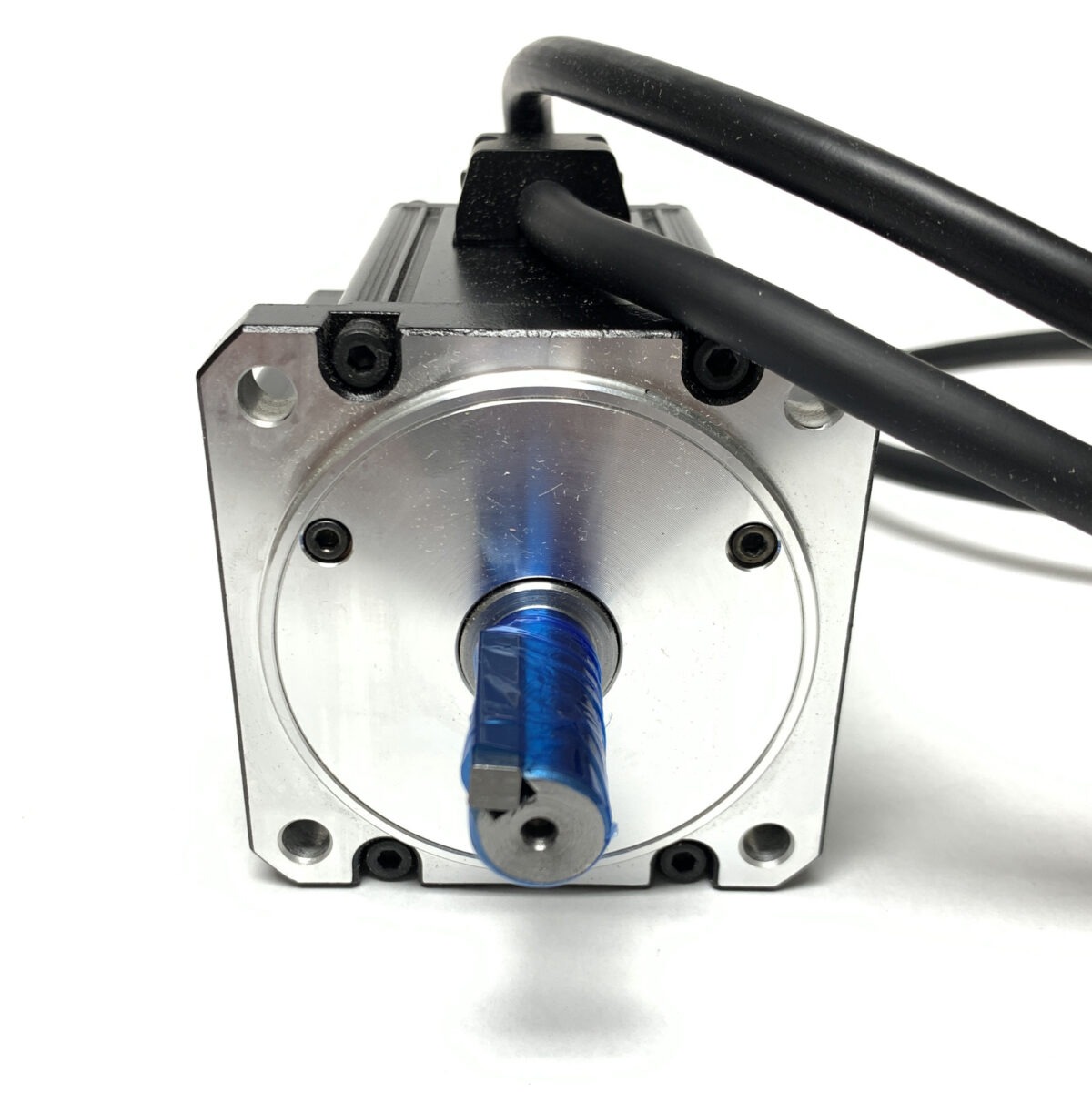

GMBM80400-29-0001000 Glentek GMBM series permanent magnet brushless servo motor.
Only 2 left in stock
Description
GMBM80400-29-0001000 Glentek motor is a high performance, permanent magnet brushless servo motor. It features high-energy Neodymium-Iron-Boron (NdFeB) magnets and low inertia rotors, ideal for applications that need high acceleration and deceleration.
Technical Specifications
- Series: Glentek GMBM80
- Model no.: GMBM80400-29-0001000
- Frame Size: 80 mm motor
- Rated Power: 400 Watts @ 3,000 RPM
- Back EMF Constant: 29 V/Krpm @ 400 Watts
- Brake Option: No brake installed
- Flange Type: Standard
- Shaft Type: Standard
- Lead Termination Type: Special
- Wiring Diagram: Glentek standard
- Feedback: 2,048 PPR (Pulses Per Revolution) incremental encoder
- Sealing Option: No shaft seal (IP54 Sealing)
- Speed:
- Maximum Speed: 5,000 RPM
- Rated Speed: 3,000 RPM
- Torque:
- Continuous Stall Torque: 11.7 lb-in / 1.3 Nm / 2.8 A
- Peak Stall Torque: 35.1 lb-in / 3.9 Nm / 8.4 A
Additional information
| Model Series | |
|---|---|
| Part Number (MPN) | GMBM80400-29-0001000 |
| Manufacturer | Glentek |
| Condition | New |
