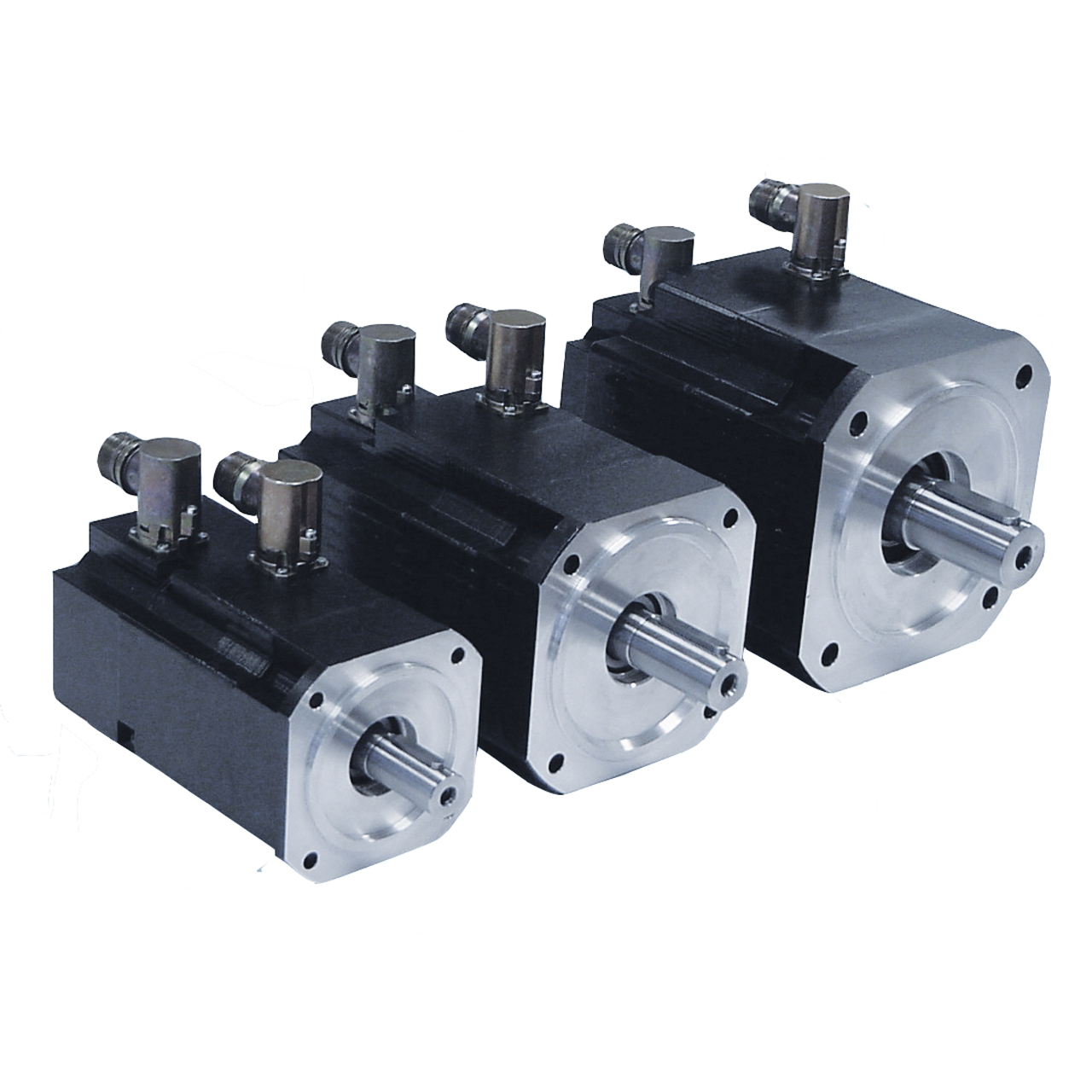

Fagor FKM22.30F.A3.010.11 AC Servo Motor
Fagor FKM22.30F.A3.010.11 brushless AC servo motor. 3.2 Nm, 3,000 RPM, 220 V, 1,024 line Absolute SinCos encoder, with keyway, with standard holding brake.
CNC Router Services Tip
FKM model numbers that end in .11 are updated versions of the original model number. These models are a direct replacement for the original motor.
Description
Fagor FKM22.30F.A3.010.11 brushless AC Servo motor.
Technical Specifications
- Model Series: Fagor FKM22 Series
- Motor type: Synchronous AC brushless Servo / Axis Motor
- Model no.: FKM22.30F.A3.010.11
- Stall Torque: 3.2 Nm
- Rated Speed:Â 3,000 RPM
- Voltage:Â 220 V AC
- Torque: 3.2 Nm
- Feedback: 1,024 line Multi-turn Absolute SinCos Encoder
- Shaft Type:Â Standard keyway (half-key balancing)
- Brake Option: Standard 24V DC holding brake
Additional information
| Model Series | |
|---|---|
| Part Number (MPN) | FKM22.30F.A3.010.11 |
| Voltage (V) | 220 |
| Manufacturer | Fagor Automation |
| Speed (RPM) | 3,000 |
| Connection type | Rotating Angled Connectors |
| Stall Torque (Nm) | 3.2 |
| Stall Current (A) | 4.5 |
| Kilowatt (kW) | 0.8 |
| Condition | New |
