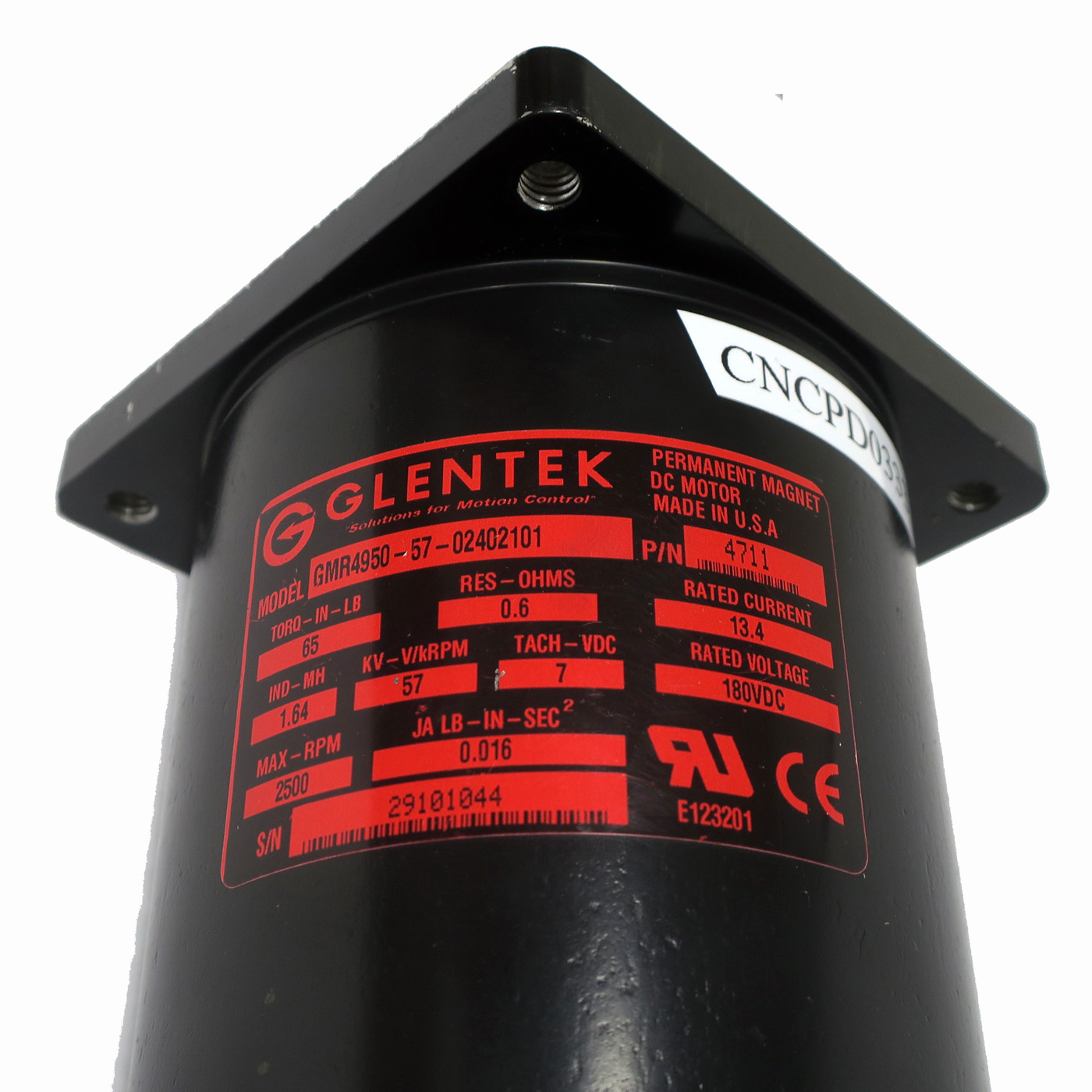

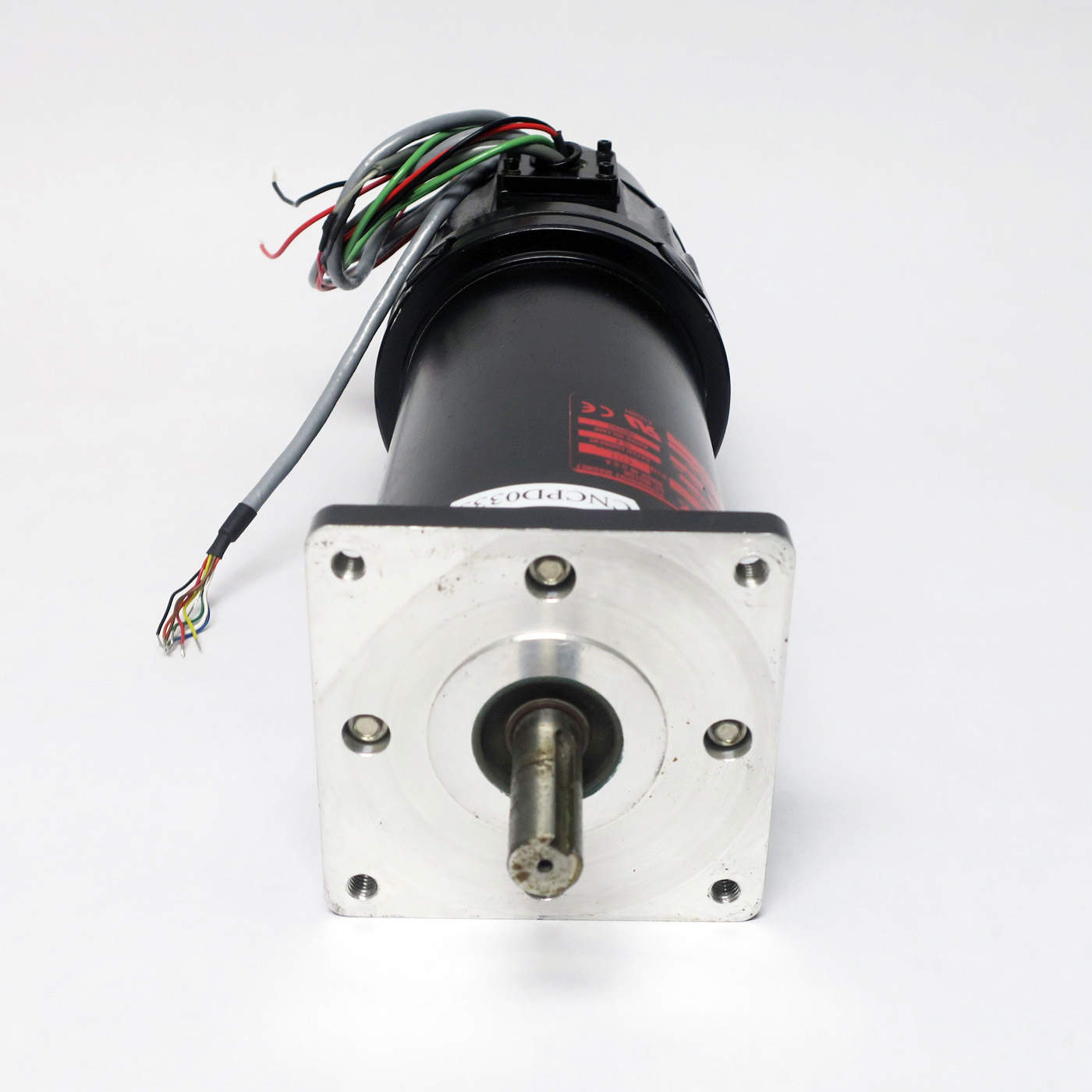

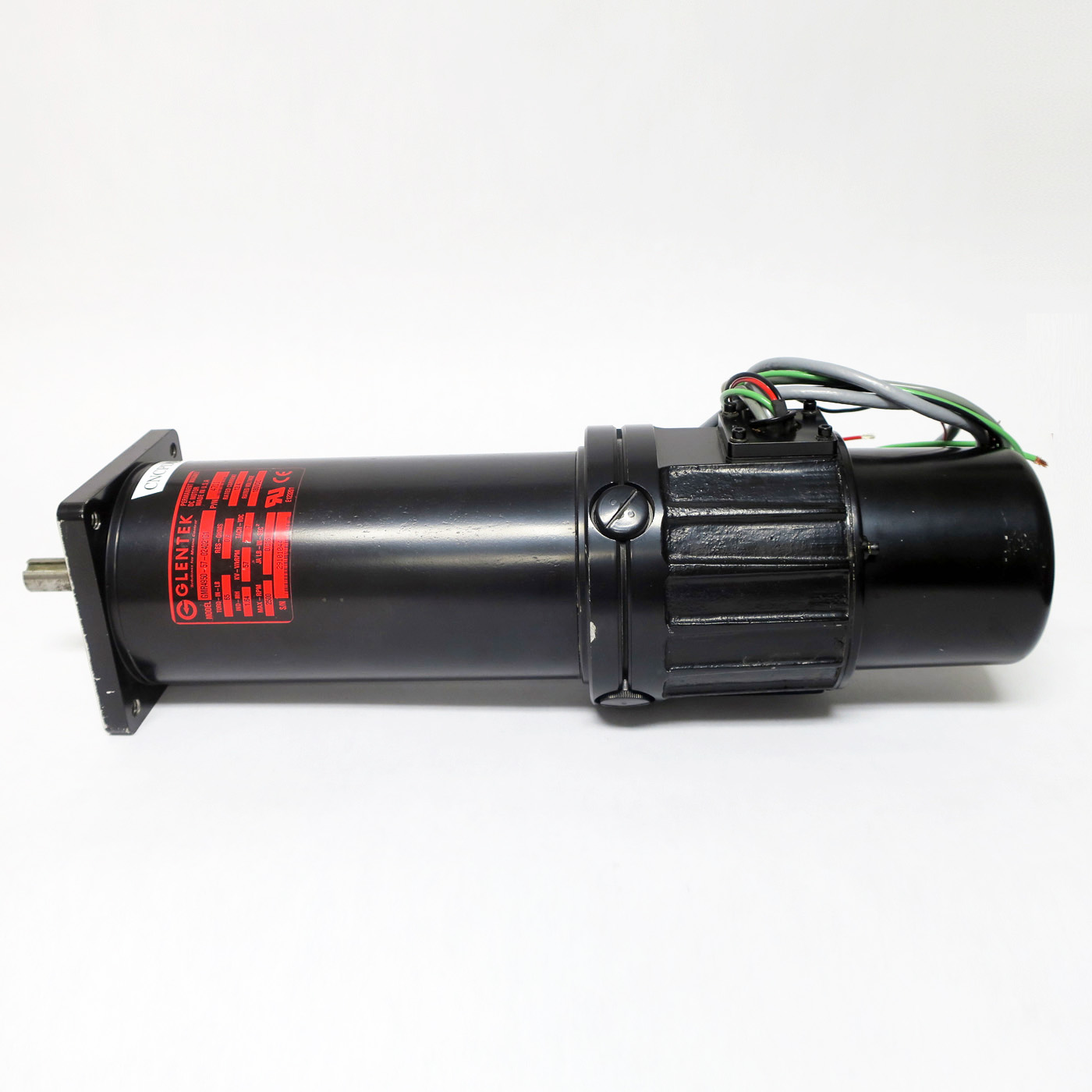

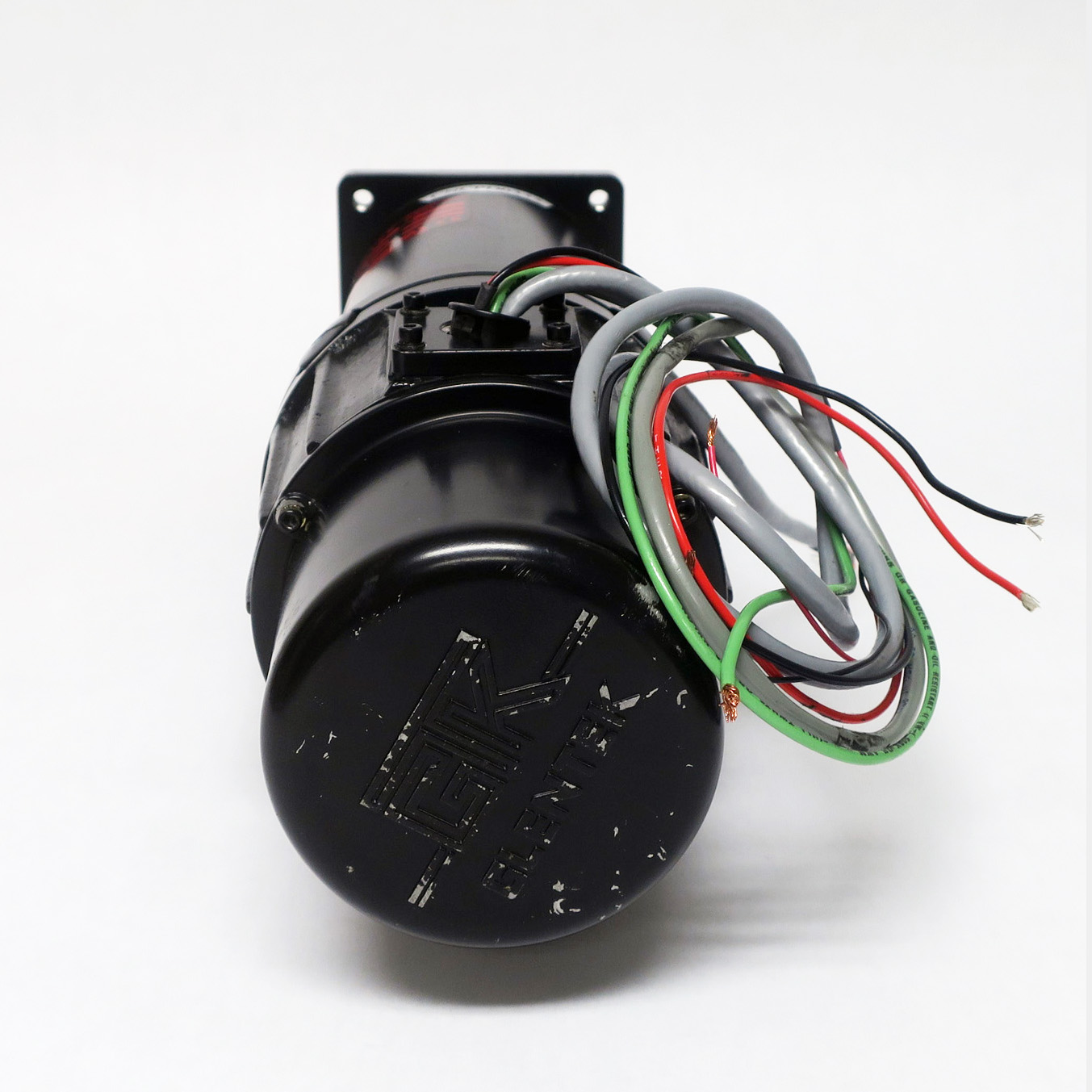

GMR4950-57-02402101 Glentek Servo Motor

Glentek

$700.00

GMR4950-57-02402101 Glentek DC servo motor, Used condition.

Only 1 left in stock

Request More Information

CNC Router Part Request

For a fast and easy CNC router part request, send us a message using the form provided.

SKU: GMR4950-57-02402101 used Categories: , Tags: , Brand:

Product Description

GMR4950-57 Glentek DC servo motor, GMR4900 series model #GMR4950-57-02402101, 180 VDC, 2,500 RPM Max speed, 7V tach, 1,000 count encoder.

Additional Information

Weight 28 lbs
Dimensions 20 × 8 × 8 in
Condition

Used

Brand

Glentek

Speed

2,500 RPM

Manufacturer

Glentek

MPN

GMR4950-57-02402101

Model

GMR4950-57-02402101

Encoder

1000 Count

Glentek GMR Series DC Brush Servo Motors

GMR series DC brush servo motors utilize high-energy Neodymium-Iron-Boron (NdFeB) magnets, which provide more torque in a smaller package with higher dynamic performance than traditional ferrite magnet designs. Due to the high torque to inertia ratio of these motors, they are ideal for applications which require high acceleration and deceleration characteristics or where the physical size of the motor is a major concern.

  • Continuous Torque Range: 16.0 Lb-in (1.81 Nm) to 65.0 Lb-in (7.34 Nm)
  • Peak Torque Range: 80.0 Lb-in (9.04 Nm) to 325.0 Lb-in (36.72 Nm)


Glentek GM/GMR Series Servo Motors

Glentek’s DC brush servo motor line features high performance, skewed armatures, and TENV construction. Industry standard mounting, feedback, sealing, and lead termination options available, along with optional fail safe brakes.
