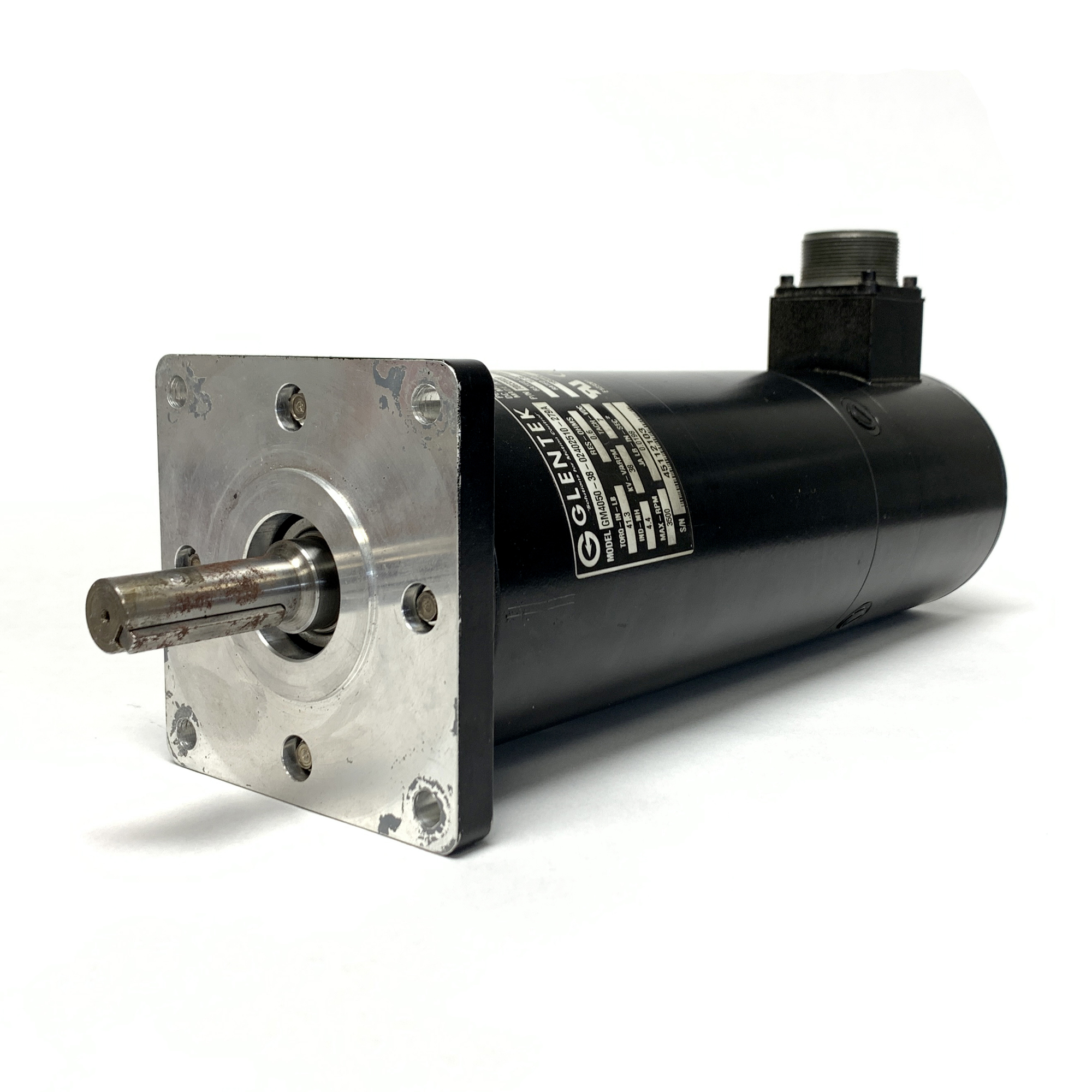

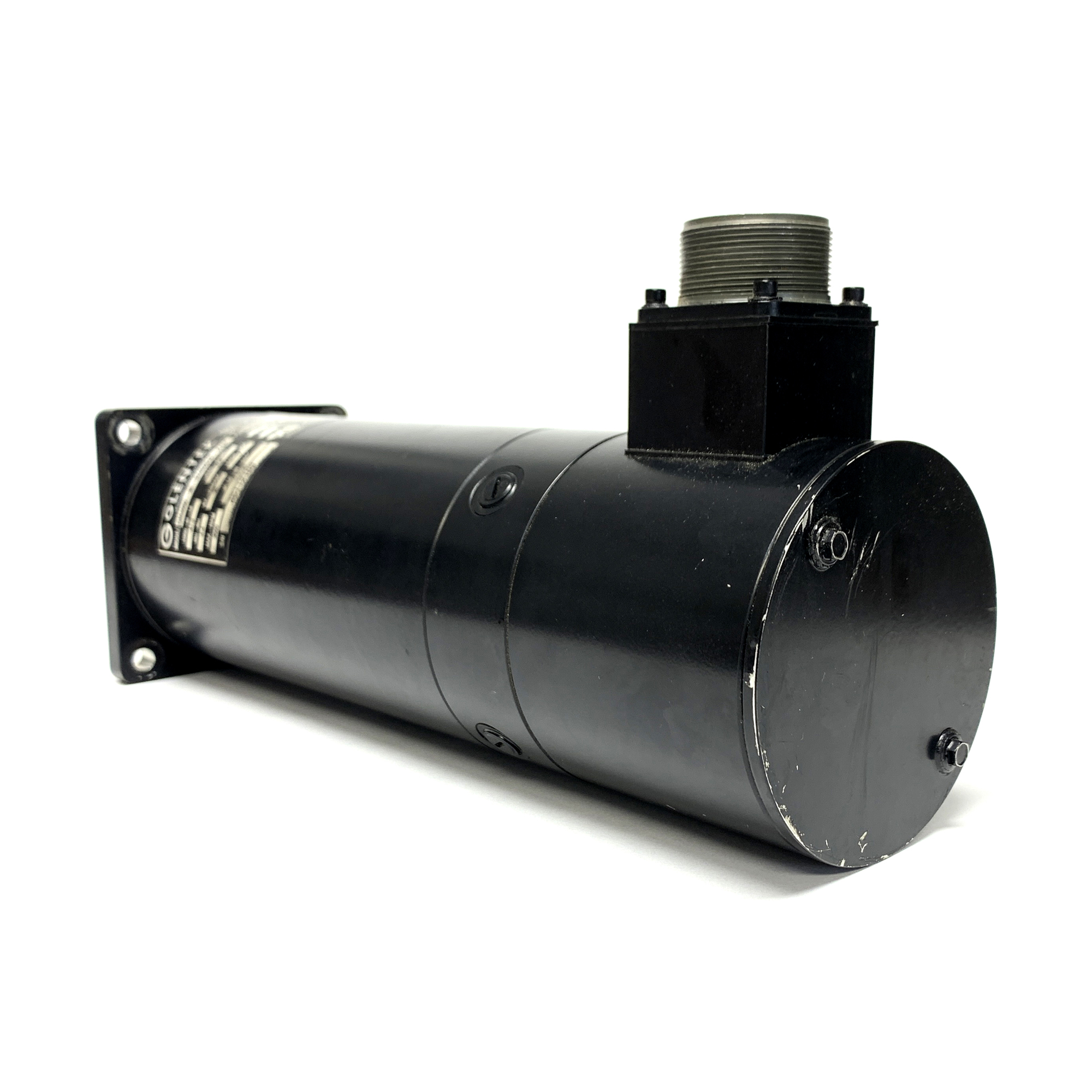

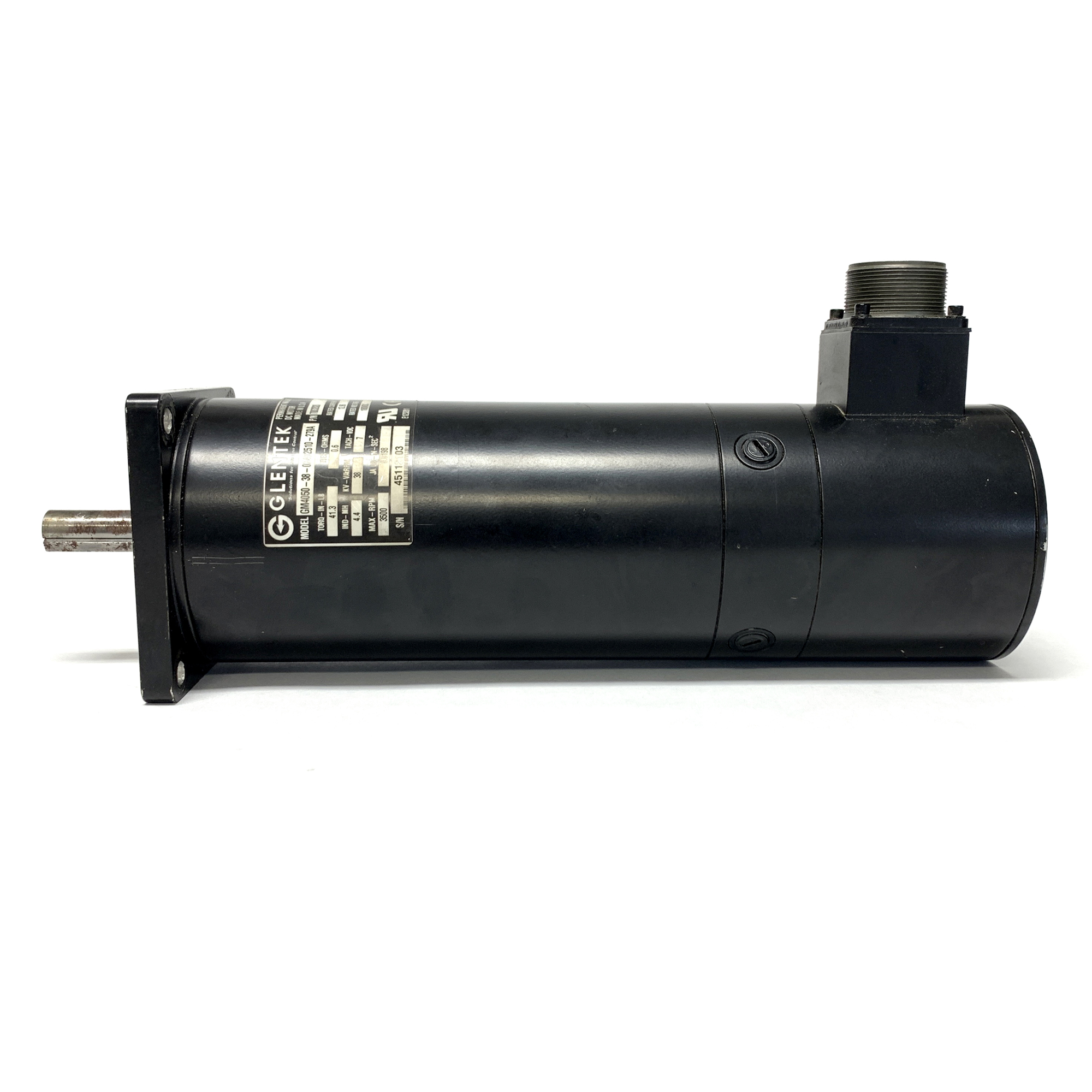

GM4050-38 Glentek DC brush servo motor with male military style (MS) connector adapter, 1000 count encoder and square A1-B flange, 2.29 HP / 1.708 KW. Glentek GM4000 Series motor, CE Marked. Model #GM4050-38-02402510-279A.
Glentek GM4050-38-02402510-279A Specificatons
Frame Size: 4.0″ Motor
Stack Length: 5.0″ Stack
Back EMF Constant: 38V/Krpm
Brake Option: No Brake Installed
Tachometer Option: 7 VDC Tachometer
Encoder Option: 1000 PPR
Brushless Revolver Option: No Resolver Installed
Flange Type: M1 Square Flange

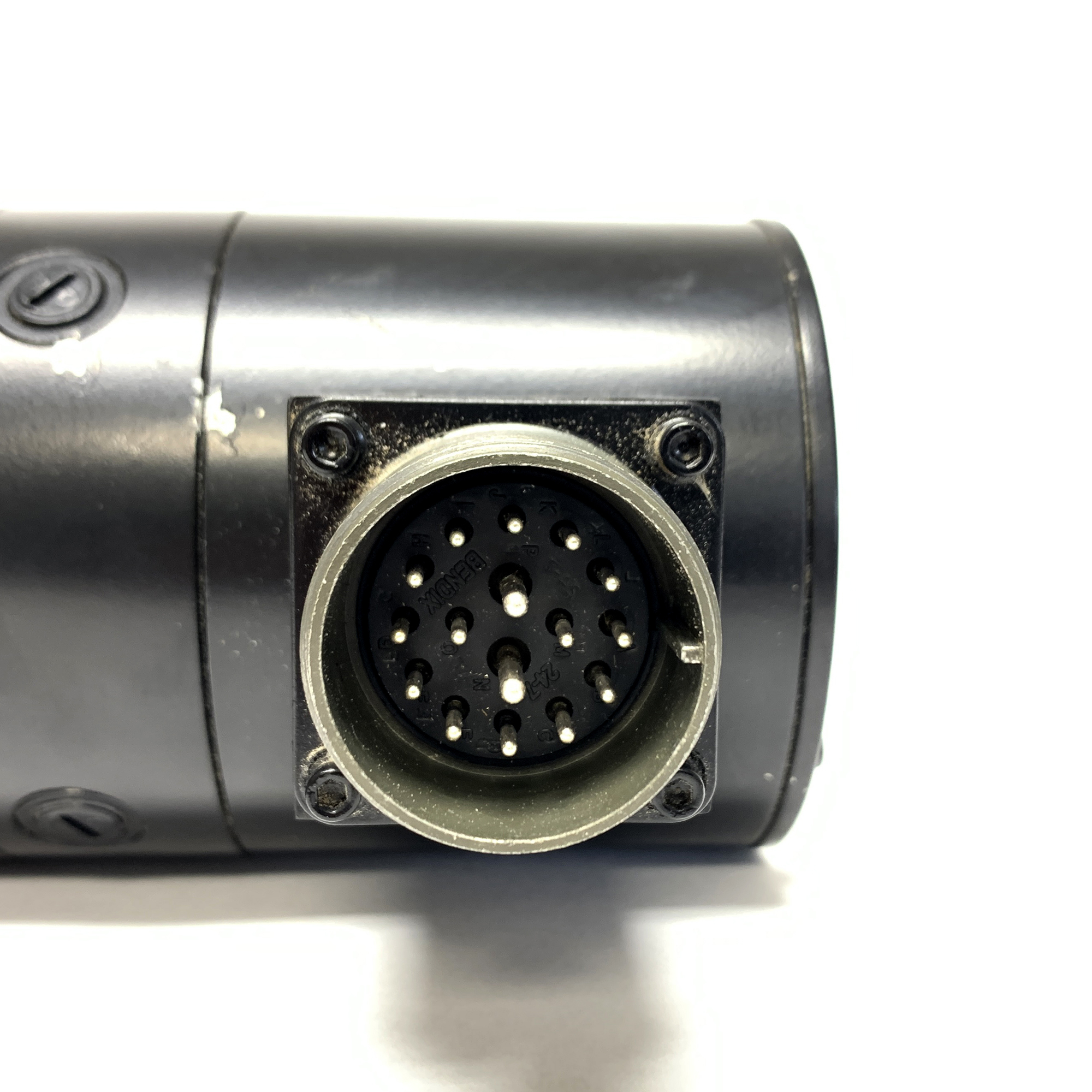

Lead Termination: 16-Pin, Male MS connector
Sealing Option: No Shaft Seal
Maximum Speed: 3,500 RPM
Additional Information
Weight
25 lbs
Dimensions
20 × 10 × 10 in
Condition
Used
Encoder
1000 Count
Connection type
MS (military style)
Flange type
A1-B, 3.5" between holes
Brand
Glentek
Manufacturer Part Number
GM4050-38-02402510-279A
Manufacturer
Glentek
Power
1.7 kW, 2.29 hp
Speed
3500 RPM
Model
GM4050-38-02402510-279A
GM4050-38 square flange servo motor model series can replace the motors listed below:
The GM4050-38 permanent magnet brush servo motor uses traditional ferrite magnets, which are ideal for cost sensitive applications. It also uses higher inertia armatures, which provide improved motor to load inertia matching for medium to high inertia loads. This helps reduce mechanical shaft resonance and leads to higher servo gains for increased stability. In addition, this motor incorporates a skewed armatures, which provides low cogging torque and ultra smooth operation at all speeds. The GM4050-38 outputs up to 41.3 Lb-in (4.67 Nm) of continuous torque, and has a maximum speed of 3500 RPM. Industry standard English, metric, and NEMA mounting configurations are available.
Glentek’s DC brush servo motor line features high performance, skewed armatures, and TENV construction. Industry standard mounting, feedback, sealing, and lead termination options available, along with optional fail safe brakes.
