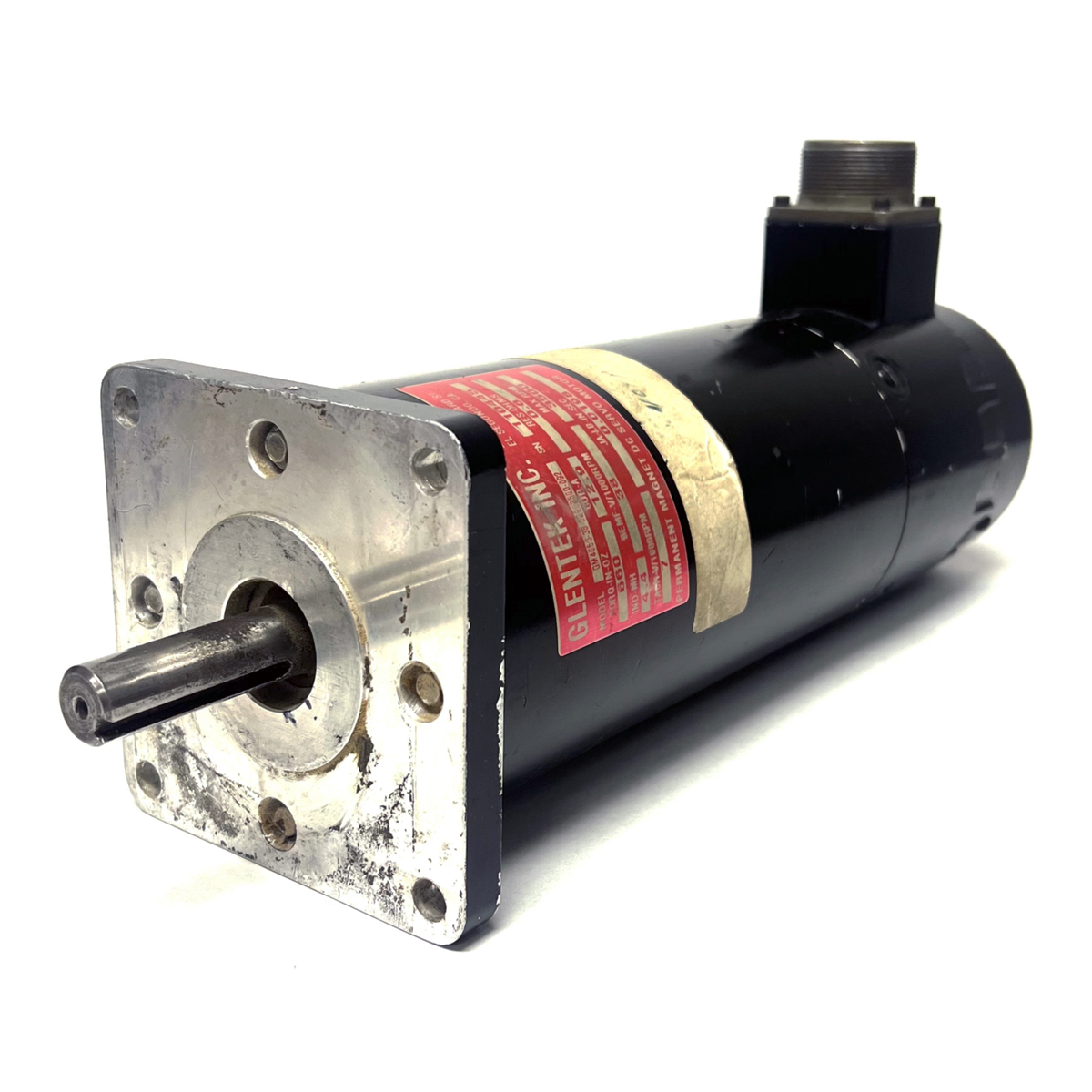

GM4050-38-02902500-092 Glentek DC Servo Motor (Used)
$930.00
GM4050-38-02902500-092 Glentek permanent magnet DC brush servo motor features MS connector, 1,000 count encoder, and A1-B flange. Used condition.
Out of stock
Description
GM4050-38-02902500-092 Glentek high-performance permanent magnet DC brush servo motor. Used condition.
Technical Specifications
- Series: Glentek GM4000
- Model no.: GM4050-38-02902500-092
- Maximum Power: 2.29 hp / 1.708 kW
- Continuous Stall: 41.3 Lb-in, 4.67 Nm, 12.9 Amps
- Peak Stall: 206.5 Lb-in, 23.35 Nm, 64.5 Amps
- Max Speed: 3,500 RPM
- Feedback: 1,000 count encoder
- Flange Type: A1-B flange (3.5″ hole to hole.)
- Lead Termination: 16 pin male MS (military-style) connector
Additional information
| Condition | Used |
|---|---|
| Model Series | |
| Part Number (MPN) | GM4050-38-02902500-092 |
| Manufacturer | Glentek |
Glentek GM Series DC Brush Servo Motors
GM series DC brush servo motors utilize traditional ferrite magnets, which are ideal for cost sensitive applications. In addition, the higher inertia armatures provide improved motor to load inertia matching for medium to high inertia loads. This helps to reduce the mechanical shaft resonance, which allows higher servo gains with increased stability. All frame sizes incorporate skewed armatures, which provide ultra smooth operation (i.e. low cogging torque) at all speeds.
