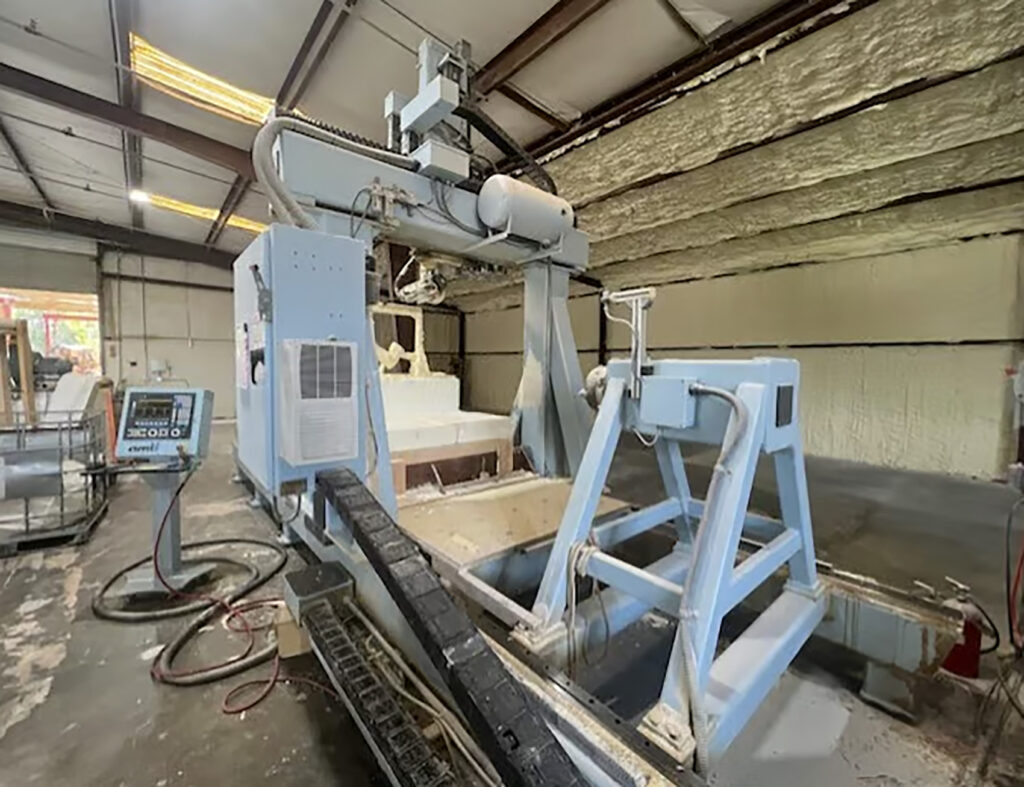

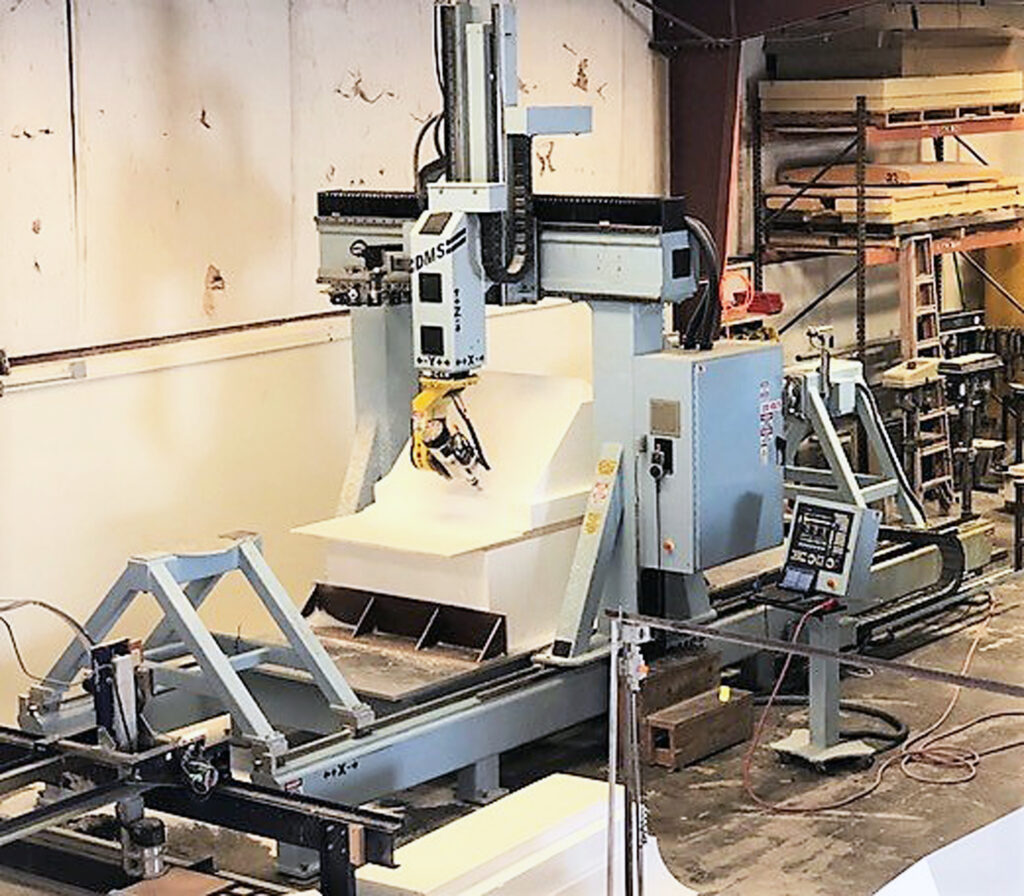

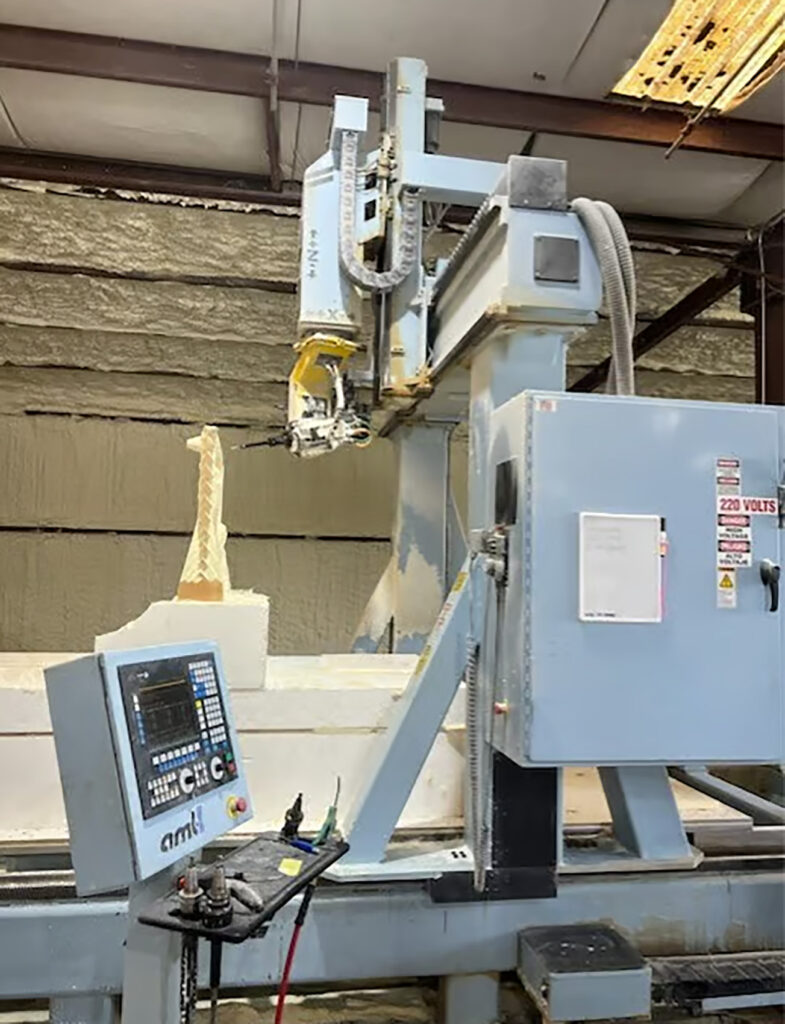

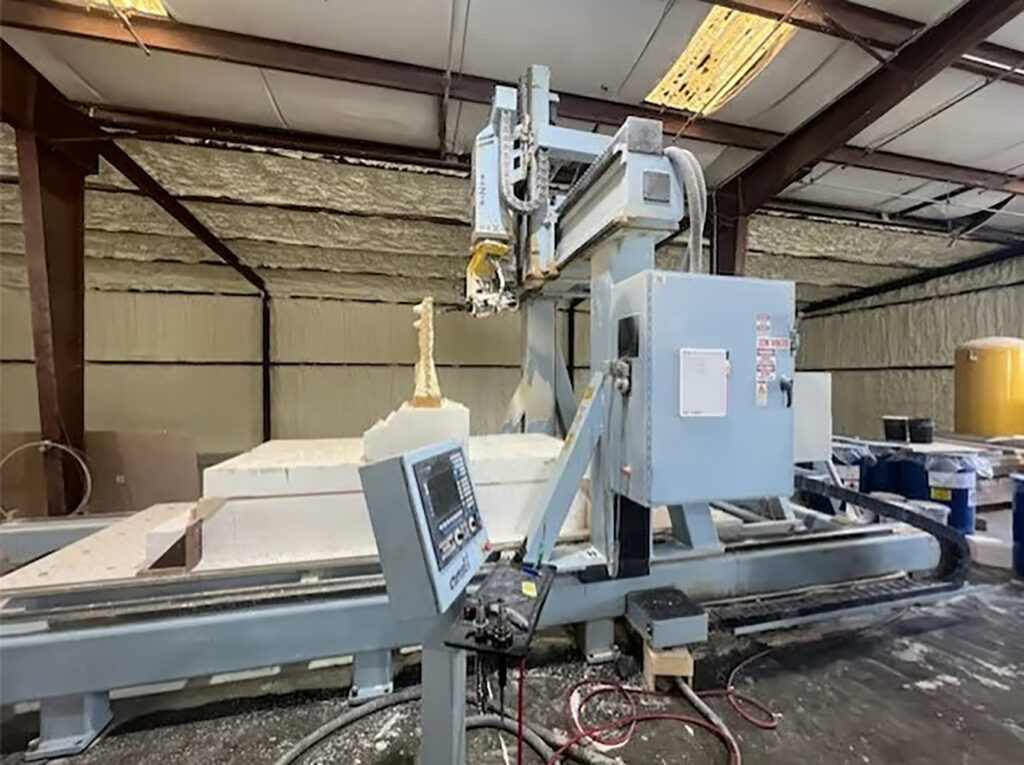

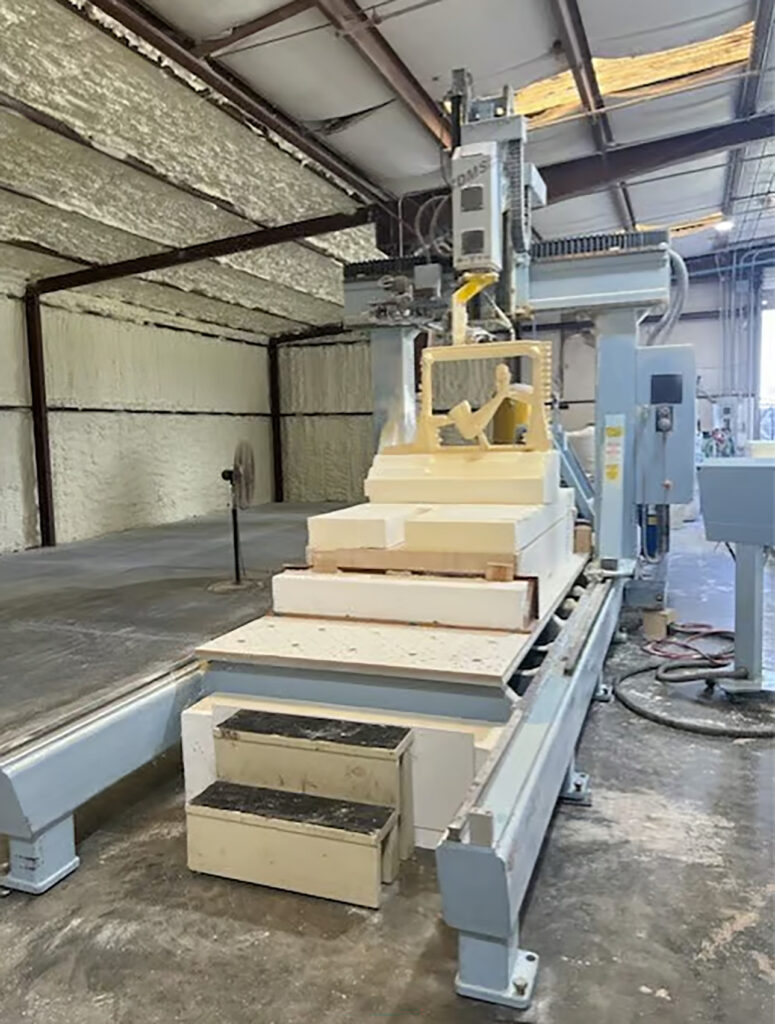

2008 DMS 5-axis CNC router for sale, comes equipped with a stationary 5 ft x 12 ft aluminum table, 6th axis lathe, 72 inches of Z clearance, 48 inches of Z axis stroke, 11 hp HSD A.T.C. spindle, and a 12-tool automatic tool change carousel. CNC router machinery is controlled by Fagor Automation 8055 Plus CNC system.
For more information about this used DMS 5-axis CNC router for sale, view detailed machinery specifications below and contact our CNC router sales team for a quote today.
DMS 5 Axis CNC Router Specifications
- Originally manufactured in 2008 by DMS
- 5-axis DMS Model No.: 5B5-5-18-48-SCOLXX
- 5′ x 12′ stationary aluminum router table
- 3/8″ threaded inserts on 12″ centers
- Heavy duty lathe 6th axis, removable
- 72″ vertical bridge clearance
- 48″ Z axis stroke
- 11 hp HSD ATC spindle motor – ISO 30, 20,000 Max RPM

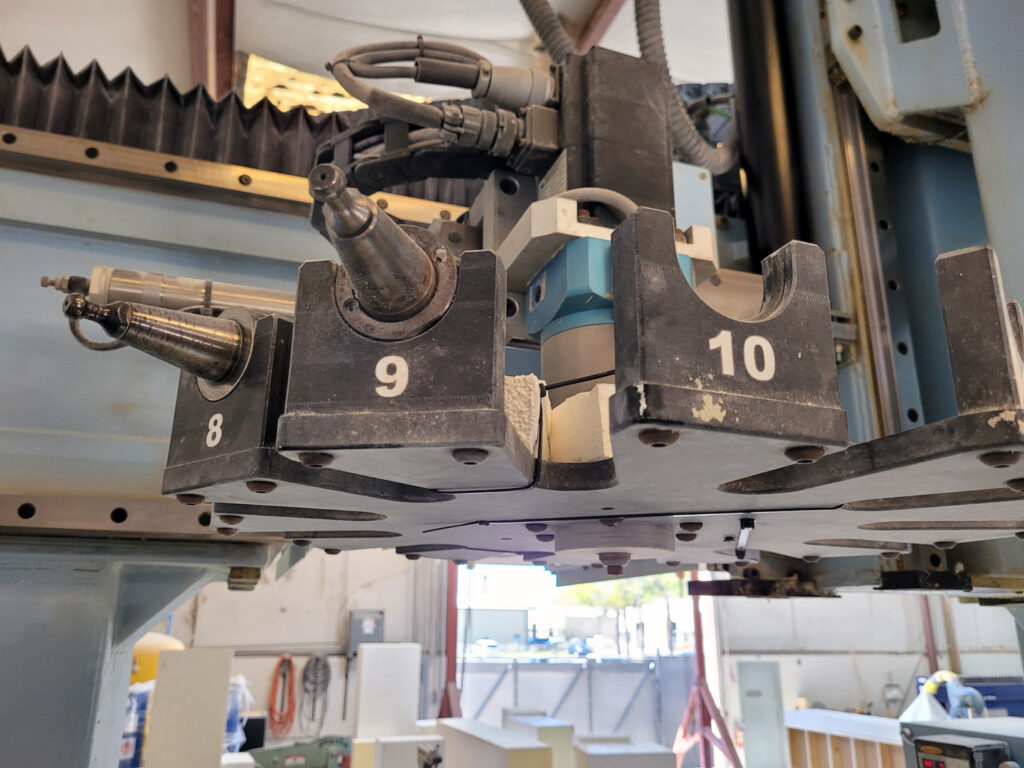

- 12 position tool change carousel

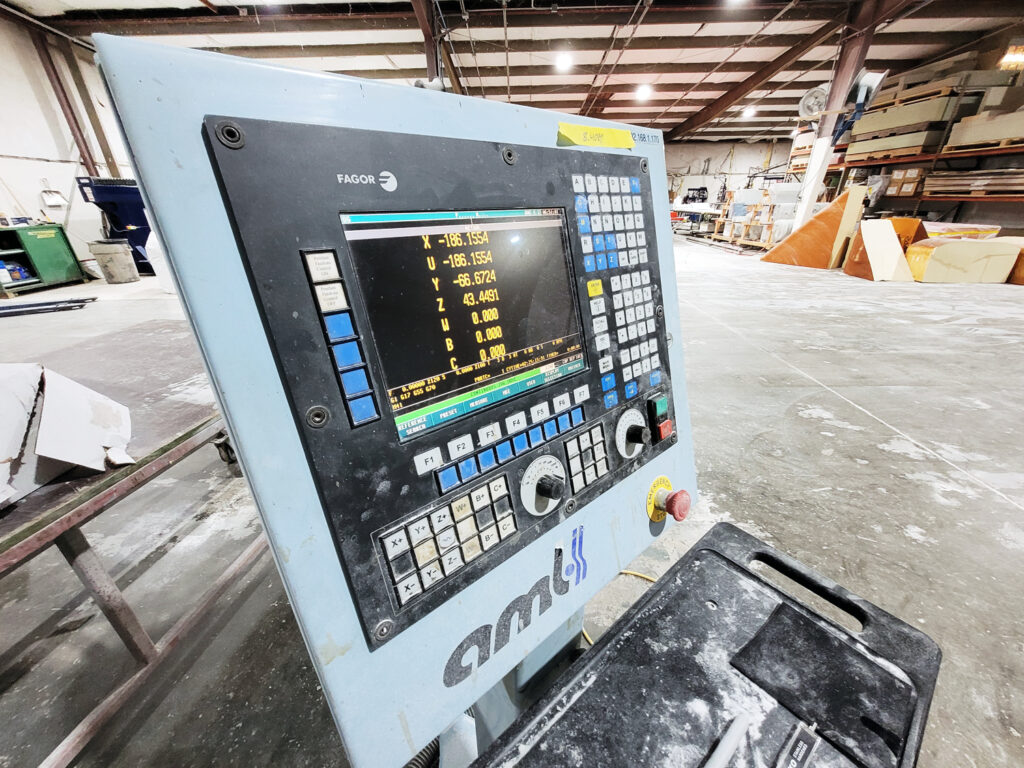

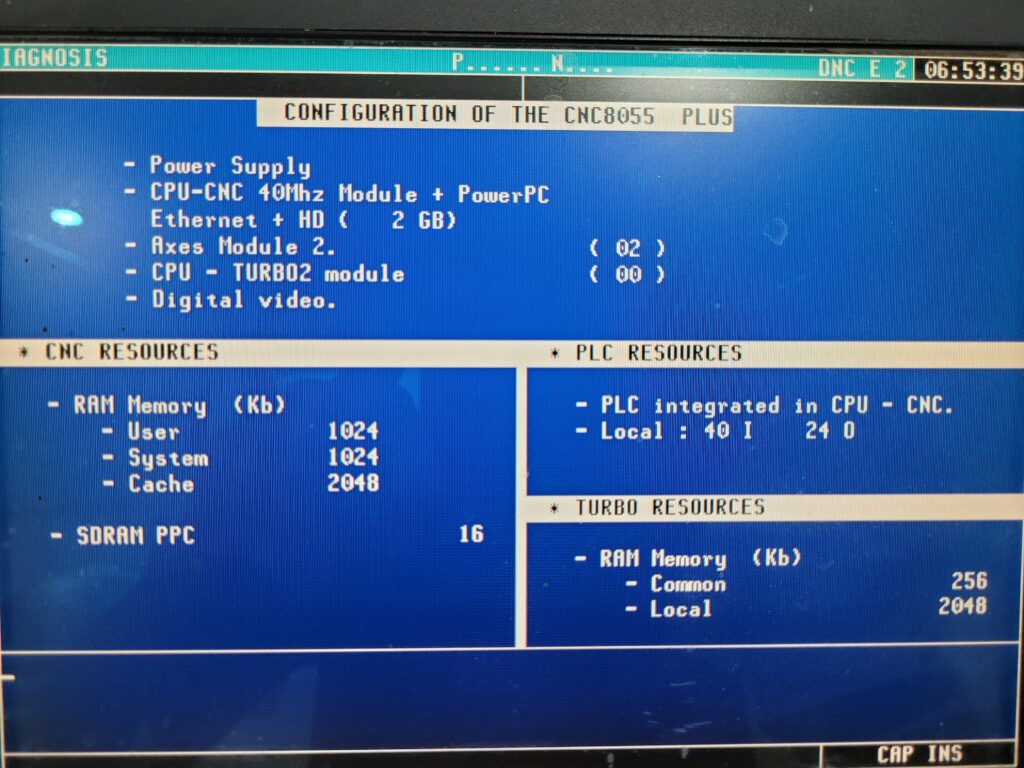

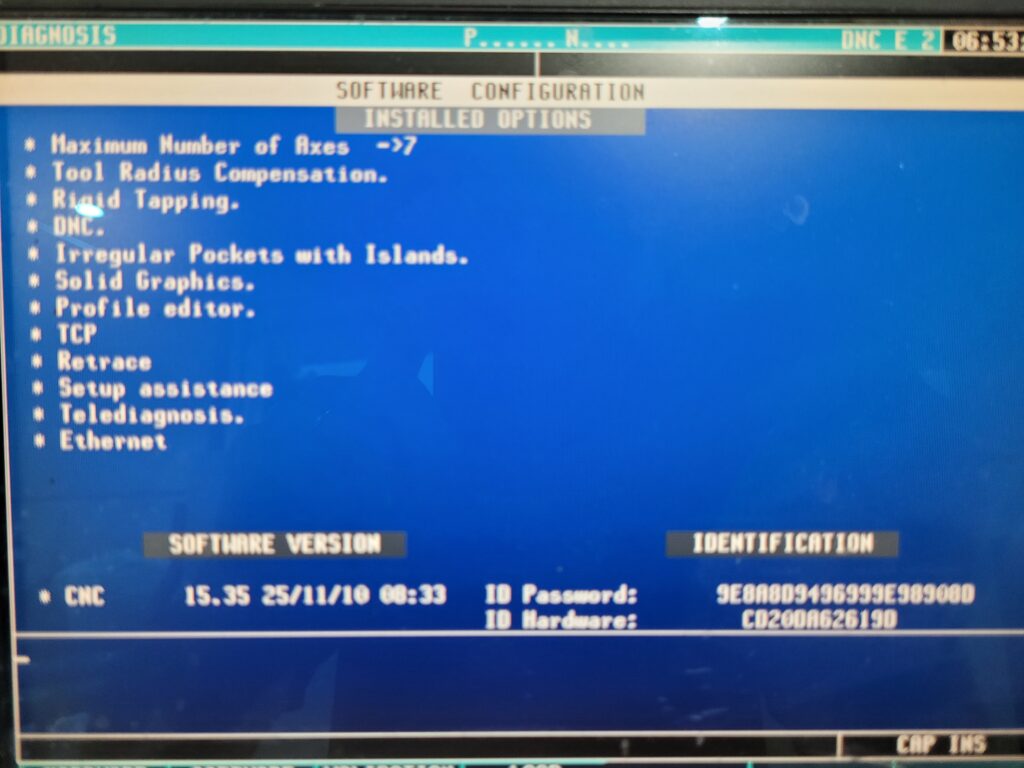

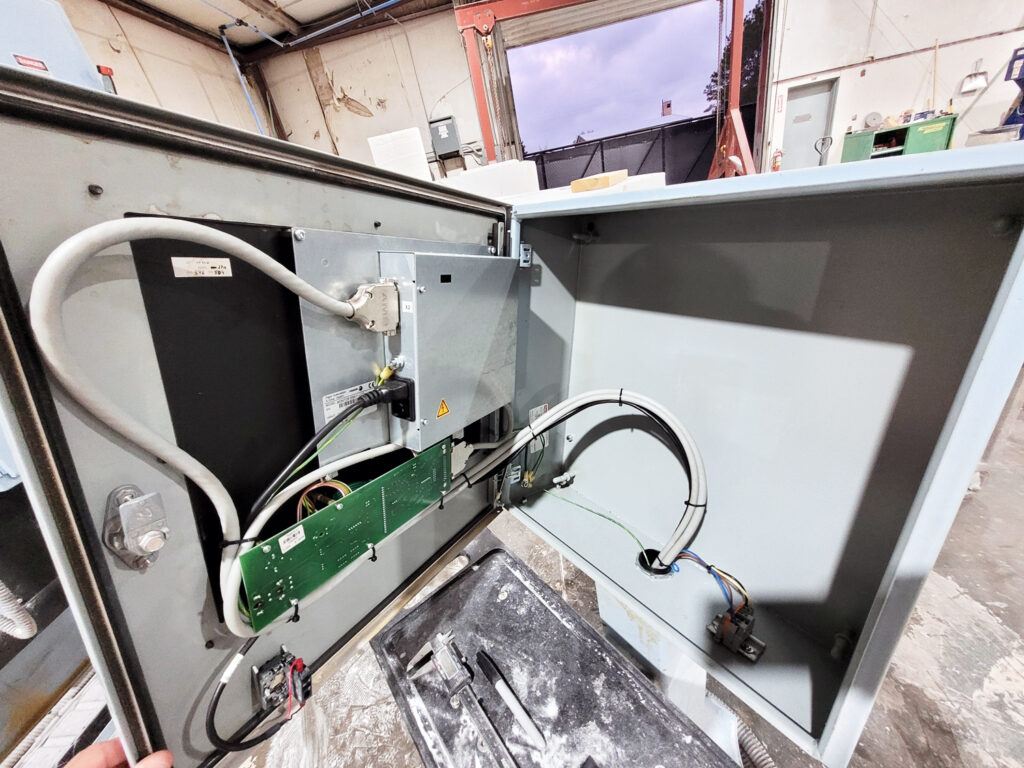

- Fagor 8055 Plus CNC system controller
- Ethernet
- Tool radius compensation
- Tool center point compensation
- Turbo card
- Telediagnosis
- Auto lube system
- Auto tool height sensor
- 230 V / 3 phase electrical requirements
- 60 Amps / 60 Hz
- 90PSI, 5CFM air requirement
- CNC Machine is 18 ft. long
- Z axis utilizes 32mm servo driven lead screw mounted with angular bearings
- 35mm profiled ways on all linear axis
- B Axis uses cycloidal 210:1 gearhead
- C Axis uses cycloidal 109:1 gearhead
- Speeds:
- X-Axis – 1200 in./min.
- Y Axis – 1200 in./min.
- Z Axis – 600 in./min.
- C Axis – 125 degrees/second
- B Axis – 125 degrees/second
5 Axis DMS Router Video Demonstrations
