Y6162Y0064 MT1090 HSD Spindle Motor

HSD

$2,100.00

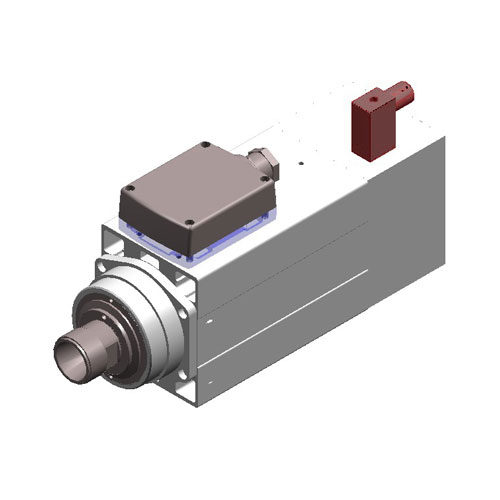

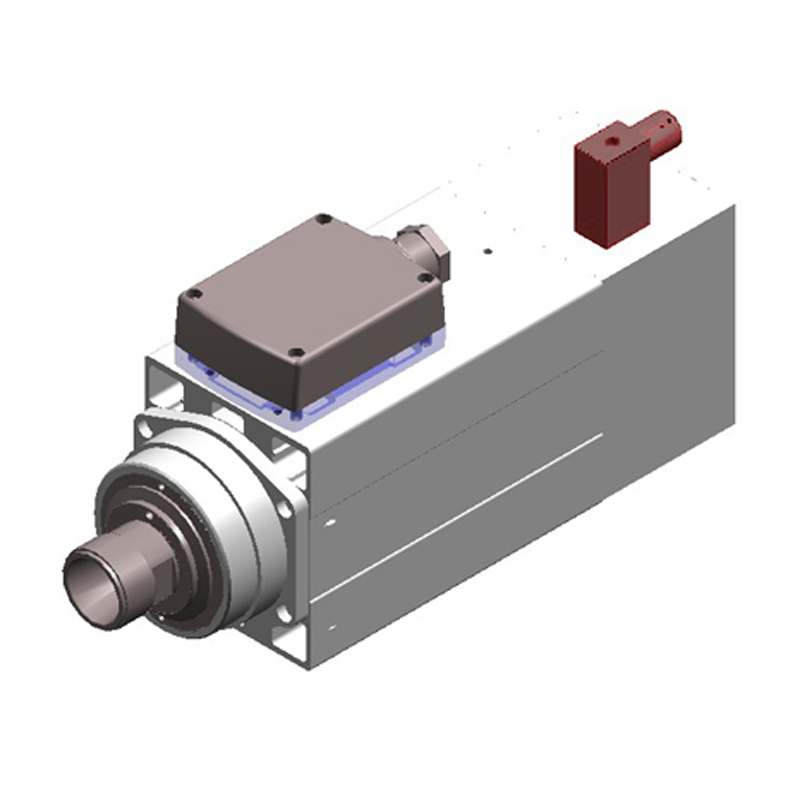

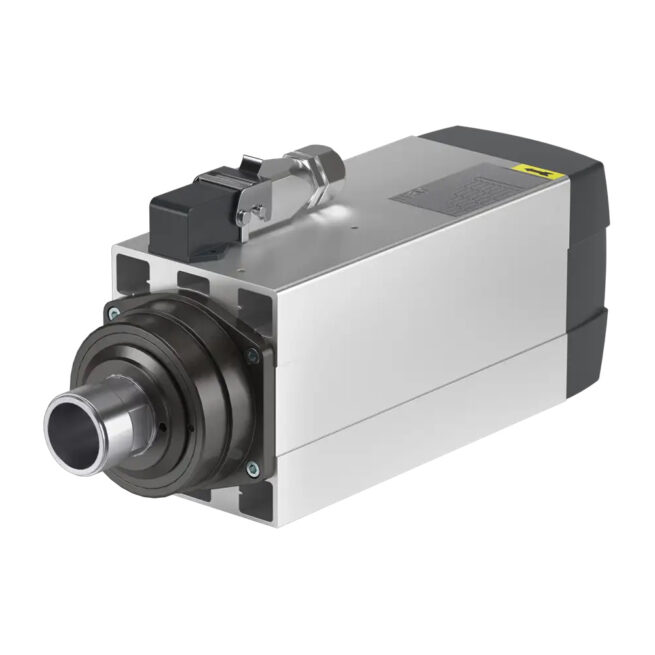

Y6162Y0064 HSD MT1090-140 electrospindle motor, MTC, fan cooled, ER 32 collet, 5 hp / 3.8 kW, 220 V.

Request More Information

CNC Router Part Request

For a fast and easy CNC router part request, send us a message using the form provided.

SKU: Y6162Y0064 Category: Tag: Brand:

Product Description

Y6162Y0064 HSD MT1090-140 electrospindle motor, MTC (manual tool change), electric fan-cooled, ER 32 collet spindle, 5 hp / 3.8 kW (S1), 6.8 hp / 5.1 kW (S6), 18,000 – 24,000 RPM, 220 V, 300 – 400 Hz, 2 pole.

Additional Information

Brand

HSD

Voltage

220 V

Collet size

ER 32

Manufacturer Part Number

MT1090-140-EL-ER32-220V-18/24000-3,9kW S1, Y6162Y0064

Model

AY6162Y0064, Y6162Y0064, MT1090

Cooling Method

Electric Fan, Fan Cooled

Poles

2

Rated Speed

18,000 RPM

Max Speed

24,000 RPM

Power

3.8 kW, 5 hp, 5.1 kW, 6.8 hp

Maximum Output Frequency

300 Hz, 350 Hz, 400 Hz

ER 32 Collets and Collet Nuts

Spindle Motor Lead Time & Availability

Spindle motor lead time and availability varies up to a year. In stock motors can ship within a day or two. Out of stock motor lead times can vary from 4-6 weeks to 6-9 months or longer. We recommend keeping a spare CNC spindle motor on the shelf to avoid costly downtime.

HSD Spindle Motor Distributor

CNC Parts Dept stocks and distributes HSD ATC spindle motors , HSD MTC spindle motors, and HSD spindle spare parts that are commonly used on DMS CNC, Freedom CNC, and  Motionmaster CNC machines. Other routers that utilize HSD motors include Biesse, Shopbot, Laguna Tools, Thermwood, Shop Sabre, Quintax, Techno CNC, AXYZ, Hendrick, Multicam, Multiax and Kimla. In addition, HSD CNC spindle motors are featured on Kuka robots.
